Chauvet DJ CoDot ILS, Lighting Fixture for Instant Lighting Show

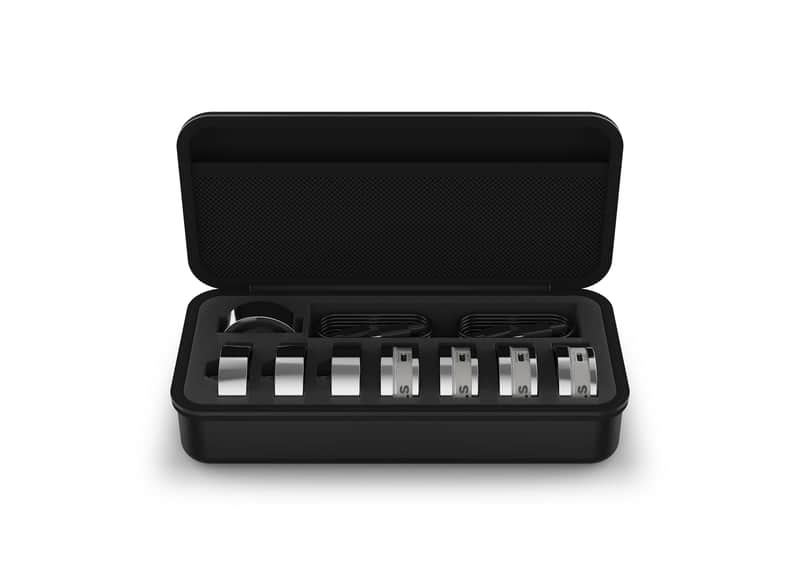

The Chauvet DJ CoDot ILS is a 4-pack of compact, coin-sized LED illuminators designed for tight spaces where conventional lighting fixtures cannot fit. Each pack includes over 15 accessories, including a carrying case, multiple lens options, and USB-C cables. With built-in ILS compatibility and a DFI transceiver, it integrates seamlessly into the ILS ecosystem, providing wireless control and easy access to functions through its LED display. The magnetic base allows for effortless mounting on metal surfaces, and the threaded insert is compatible with tripods. Power linking via USB type-C enables efficient operation, making this set ideal for versatile lighting applications.

Product Specifications:

DMX Channels: 4 or 6

Light Source: 1 LED (quad-color RGBW) 3 W

Strobe Rate: 0 to 20 Hz

Beam Angle (installed lens): 19°

Beam Angle (included lens): 14°

Illuminance (installed lens): 256 lux @ 2 m

Illuminance (included lens): 442 lux @ 2 m

Max Unobstructed Distance: 600 ft (183 m)

Operating Frequency: 2.4 GHz

Power Linking: 4 units @ 120 V; 4 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz

Power and Current: 7 W, 0.1 A @ 120 V / 230 V

Weight: 0.2 lb (0.1 kg)

Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)

Optional Controllers: ILS Command, RFC, RFC-XL

Approvals: CE, ROHS, UKCA, FCC

Shipping Weight: 2 lbs.

Shipping Dimensions: 12 x 10 x 4 in.
