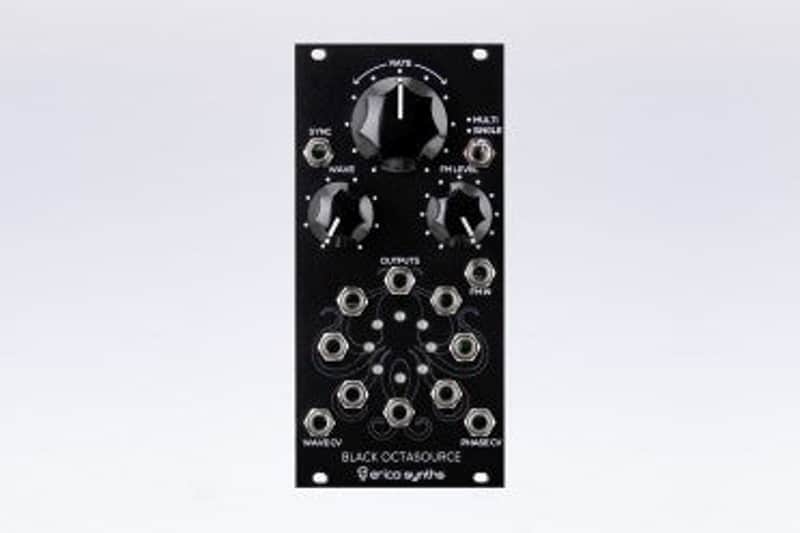

ERICA SYNTHS BLACK OCTASOURCE : BRAND NEW : [DETROIT MODULAR]

Erica Black OCTASOURCE is, what we want to believe, the LFO carried to its extremes.

It features one of 8 waveforms available on 8 outputs phase shifted by 45 degrees OR all 8 waveforms simultaneously on all outputs. Furthermore, waveform selection, phase shift and LFO rate are CV controlled, and the rate can be synched to an external clock signal.

       Features:

• LFO with manually and CV controlled rate
• Manual selection of phase shift direction
• 8 simultaneous outputs
• Synchronization to an external clock
• LFO freeze function
• 8 waves with morphing between them
• Phase shift, wave select and FM CV
• Bipolar output signal level LEDs

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

Technical specifications:

LFO rate

0.03Hz- 30HZ

Output signal amplitude

10Vptp

CV input (full sweep)

-5V- +5V

Power consumption

+82mA, -44mA

Module width

12HP

Module depth

25mm
