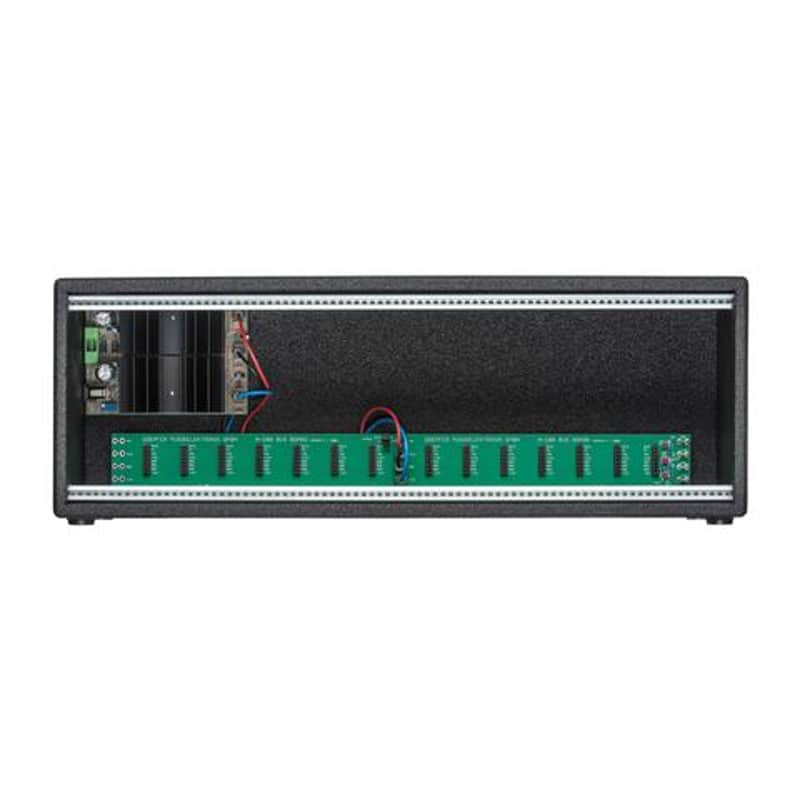

This is the 3U version of the low cost cases . The A-100LC3 is very similar to the  but offers only one row with 84 HP for installation of modules. A-100LC3 is equipped with one power supply (1200mA) and one bus board. Because of the limited space the power suppy of the  with an external transformer is used (same as for the : 15V AC/2500mA). At the left side of the case the connector for the external transformer is located. The external transformer is not shown in the pictures. A suitable transformer for the US market is manufactured by  and has the product name WAU16-2400 (16V AC / 2.4A). It is available from several electronic shops like Mouser, Digikey, Newark, Farnell and others.

The case is made of raw wood without laquering. The case can be varnished by the customer in any desired color e.g. by means of a spray can.
It is also available with black coating :A-100LC3V

Measures:
outside: approx. 445 (width) x 160 (depth) x 150 (height)
inside: 1 x 84 HP x 3 U (one bus board), useable depth for A-100 modules: approx. 110 mm (measured from inner side of the front panel until end of the pc board of the module)

Quantity of bus boards: 1

Weight (without modules): about 2.5 kg without external transformer, about 3.5 kg with external transformer

Electrical specifications:
mains voltage: 115V~ or 230V~ (please specify when you order because of the correct voltage fo the external power supply)
output voltages/current: +12V/1200mA, -12V/1200mA, in contrast to the other A-100 cases the A-100 LC3 has no +5V available ! If required the 5V adapter  can be used.

IF you want to run the A-100LC3 with another supply please refer to . The DIY kit uses the same supply as the A-100LC3.

technical data of the external power supply: 15V AC / 2500 mA output, low voltage connector 5.5/2.1 mm outer/inner diameter, the supply is included with the A-100LC3
