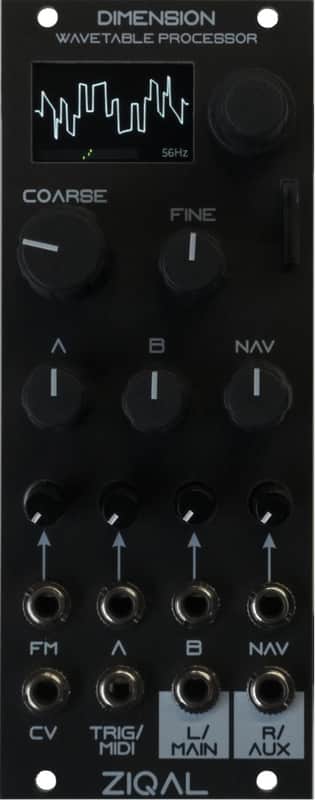

ZIQAL DIMENSION MK3 WAVETABLE OSCILLATOR : BRAND NEW : [DETROIT MODULAR]

High resolution / Serum compatible

The Dimension wavetable engine uses 2048 samples * 256 waveforms wavetables to bring high definition tables to your system. Its wavetables reproduction precision will fit any of your audio textures needs.

Dimension is compatible with the Serum wavetables format and feature an intuitive and fast file browser, allowing you to explore thousand of already available wavetables. Just drop your favorites wavetables on its SD card and instantaneously start exploring new sonic territory.

24 voices

Dimension is capable of playing not less than 24 voices simultaneously within 10HP  tanks to its embeed modern high end audio processor. Depending on the active patch mode voices can be assigned to chords polyphony or unison engine

Polyphonic stereo, Dimension, Dual or LFO modes

The Classic mode provides 4 oscillator voices panned over stereo outputs. You can control theses voices in CV programing chords or with the internal notes scaler and or feeding midi into the module.



The Dimension mode allows the waveform to be morphed across the entire module memory in an X Y fashion. As the module allows to store internally 25 wavetables of each maximum 256 waveforms. This mode allows wavetable morphing over (25*256) 6400 different waveforms.

Dual / LFO mode

Dual mode output two different wavetables on each output. LFO mode operates as the dual mode, except that the frequency range of output two is set in the subsonic range.



In any mode, voices can also be multiplied 6 times and detuned to play massive 6 voice unison. When using 4 voices it brings not less than a total of 24 voices out of your oscillator.

  Specifications Power

• Supply: +12V 100mA
• -12V 15mA

Mechanical

• Size : 10HP
• Depth : 25mm ( power connector included )

Audio processing

• 32bit 44.1kHz floating point
• High performance anti-aliasing filter

Memory

• 25 internal patches / wavetables
• Internal memory backup/load from SD

Display

• 65k colors
• 38400 pixels

Control / Modulation

• CV -3V … 7V
• FM -8V … +8V
• Navigation “NAV” -8V … +8V
• A (Macro) -8V … +8V
• B (Macro) -8V … +8V

Wavetables

• 2048 samples per waveform
• 16 bit
• 44.1kHz
• 256 waveforms per wavetable

Included

• 4 M3 hex screws
• Power connectors
