ERICA SYNTHS BLACK VCA V1 : BRAND NEW : [DETROIT MODULAR]

Uniquely designed hi-fi VCA with improved attenuation levels, excellent CV reject in audio circuit and CV bias control for great tremolo effects.

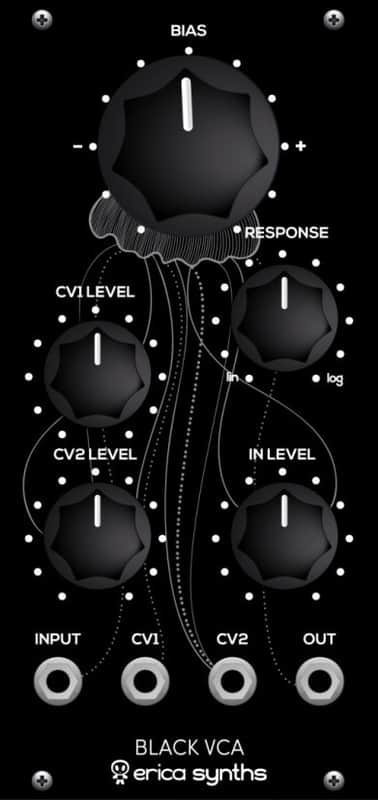

The Erica Synths Black Voltage Controlled Amplifier is a uniquely designed hi-fi VCA.
Black VCA has improved attenuation levels, excellent CV reject in audio circuit and CV bias control for great tremolo effects. Moreover smooth fading between linear and logarithnic response modes has been implemented.

      Features:

• Adjustable VCA bias
• Smooth fading between linear and logarithmical response
• Inputs/outputs are protected against over-voltage
• Diode protection on reversed power supply
• Lin/log response

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

Technical specifications:

CV Input signal level

-10V – +10V

Attenuation level:

     CV = 0V (max attenuation)

-80dB

     CV = +10V (unity gain)

0dB

Power consumption

+38mA, -32mA

Module width

12HP

Module depth

25mm
