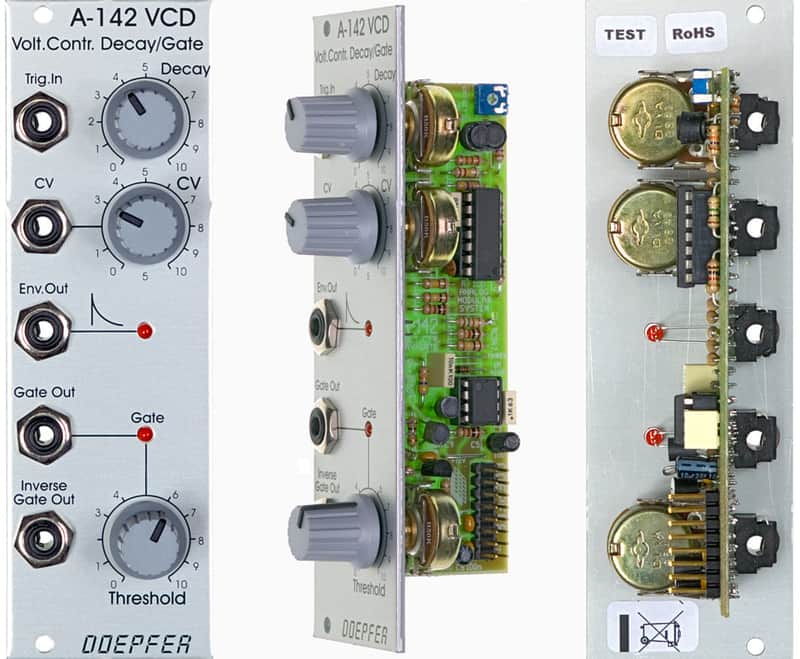

DOEPFER A-142-1 VC DECAY - GATE : BRAND NEW : [DETROIT MODULAR]

Module A-142-1 is a voltage controlled envelope generator. The only time parameter is decay (like TB303). Decay may be adjustes manual and via voltage control input (with attenuator). The envelope output is displayed with LED control. Additionally from the envelope signal a Gate signal and an inverse Gate signal with adjustable threshold is derived. LED control for Gate output. Thus one obtains a voltage controlled Gate additionally or alternatively to the envelope signal with voltage controlled duration.
The attack time is fixed to about 0.2 ms, the shortest decay time is about 2 ms. By changing the value of a capacitor the shortest time can be modified (details can be found here: ).

Typical applications: dynamic control of decay e.g. in combination with the Analog/Trigger Sequencer A-155, voltage controlled trigger delay functions (like A-162, but voltage controlled).

For more detailed information please look at the English user's guide:

Breite/Width: 8 TE / 8 HP / 40.3 mm
Tiefe/Depth: 40 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 40 mA
