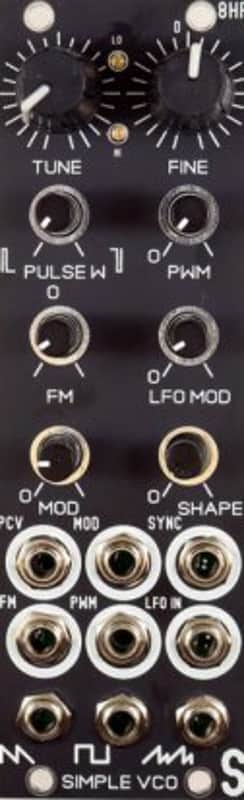

BLUE LANTERN SIMPLE SAW VCO : BRAND NEW : [DETROIT MODULAR]

The Blue Lantern Simple VCO is the perfect oscillator for those on a budget or low on space. All the necessities are present: FM, Pulse Width Modulation, and Sync. The Simple VCO doesn't stop there, though: it includes a unique Super Ramp wave output with voltage controllable variable shape. Plug an LFO or envelope into the LFO in to bring the Super Ramp to life. At 8 HP, it takes up very little space, but still includes attenuators (level knobs) for each control input, making it a true 8 HP oscillator. Many modules of this size lack attenuators, requiring additional utility modules and patch cable clutter.

Whether you're looking for blissful animated super saw timbres, or just need another VCO, the Simple VCO is a great fit at a low price.

Features

Saw, Pulse, and Super Ramp outputs
Hard Sync: Square wave input optimized
Pitch, Mod, FM, PWM, LFO control voltage inputs
Tune knob
Fine tune knob
Pulse Width knob
Pulse Width Modulation knob
Bi-polar FM input knob
DC Mod knob
Shape knob: Super Ramp only
LFO input knob: Super Ramp only, shape modulation level

Dimensions 8 HP 38 mm deep Current Draw 34 mA +12V 31 mA -12V 0 mA 5V
