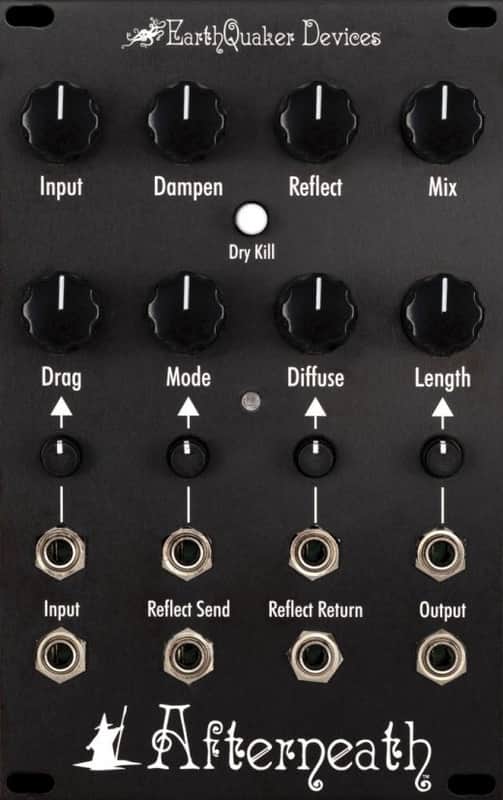

The Afterneath Eurorack Module brings the Otherworldly sounds from the effects pedal world right into your modular synthesizer with an expanded feature set. The Afterneath module features one main audio input, one main audio output, an audio send and return for the Reflect feedback path, and nine controls. Four of the parameters are controllable via CV, and each has been equipped with a dedicated inverting attenuator to process the incoming CV. The Afterneath module has a completely analog dry signal path and a totally digital wet signal path.

Features:

• Reverb algorithm built from an adjustable cluster of short delays in a 16HP Eurorack format

• Pseudo-stereo operation via the main Output and Reflect Send output (mono to stereo)

• Voltage control over the Drag parameter with 9 unique modes of user-selectable sweep: Unquantized, Unquantized with Slew,
  Unquantized Volts/Octave, Chromatic, Major, Minor, Pentatonic, Octaves & Fifths, Octaves

• Drag, Mode, Diffuse & Length parameters are controllable via CV, each with dedicated inverting attenuators

• Volt/octave tracking during self-oscillation and for modulating the pitch sounds in the effects buffer

• External processing of the feedback loop via the Reflect send and Reflect Return

• Reflect Return may be used as an additional input with the Reflect knob acting as an input attenuator

• Input capable of supporting signals ranging from instrument level to modular level

  • 16hp
  • 95 mA +12V
  • 0 mA -12V
  • 0 mA 5V
  • 32 mm deep
