THE. NEW. STANDARD.

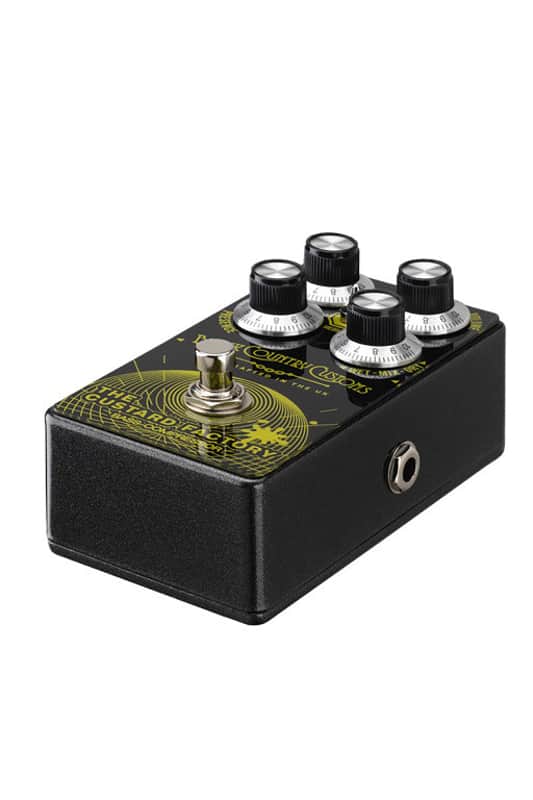

The Custard Factory is a studio-quality, triple-mode, Bass compressor pedal; In a user-friendly format. Lovingly handcrafted in our UK workshop, in the heart of England. Designed to be transparent, simple to use and deliver a consistent musical sound without impairing any of the fundamental tonal quality of your instrument. The Custard Factory is perfect for giving you the exact compression you’re looking for whatever your bass tone.

DETAILS
Tri coloured LED’s are more expensive than regular single colour LED’s, but we feel they are worth the investment. Where you have a pedal that has multiple modes on a dark stage a tri colour LED gives you a clear visual reference to which mode your pedal is running in.

It is important that when you activate an effect there is no switching noise. So, we take great care in designing a switching system that is totally silent in operation. The only thing you should here is a great sounding product.

KEY FEATURES

• 3 Modes of Compression - Fast, Medium & Slow
• Transparent fully buffered operation at all times
• Silent switching
• Excellent consistent load for passive volume pedals
• Solid metal chassis construction
• Compression
• Volume
• Wet-Dry Mix
• Presence

SPECIFICATIONS

• Item dimensions: 60mm x 75mm x 125mm (HWD)
• Carton dimensions: 78.5mm x 114.5mm x 158mm (HWD)
• Item weight: 0.38kg

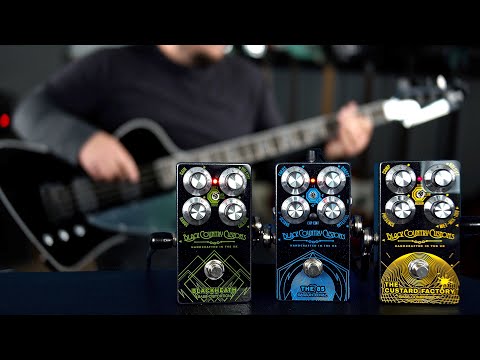

The Black Country Customs range of BASS pedals are born out of the desire to achieve the best BASS tone possible.
The result of hours of dedicated testing and listening, each Black Country Customs pedal is built using the highest quality components and engineered to last a lifetime on
your board.
WHAT IS THE “CUSTARD FACTORY”
The Custard Factory is a studio-quality, compressor pedal in a user-friendly format.
The Custard Factory is designed to be transparent, simple to use and deliver a consistent musical sound without impairing any of the fundamental tonal quality of you instrument.
The Custard Factory is perfect for giving you the exact compression you are looking for whatever you bass tone
FEATURES
Each of the BCC pedals have been designed to incorporate features that really matter :-
• Transparent fully buffered operation at all times.
• Super high output drive provides an
excellent interface between bass guitar
and effects pedals/amp.
• Much reduced cable loss.
• Consistent bass guitar volume performance at all
settings.
• Signal phase integrity.
• Excellent consistent load for passive Volume
pedals.
• Ultra-low noise circuitry.
• Silent switching.
• Low battery consumption.

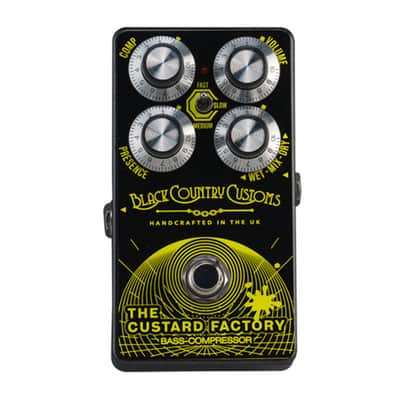

LAYOUT
The layout of your pedal has been ergonomically designed by players, for players, to give you control over all the features you need, quickly and effectively.
The following pages will give you an insight into how the controls on THE CUSTARD FACTORY work and interact with each other.

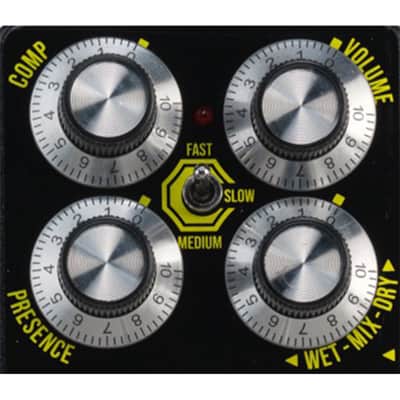

CONTROLS

1 COMP
Controls the amount of compression.

2 PRESENCE
Controls the amount of treble in the compressed signal.

3 VOLUME
Controls the signal output level of the compres- sor pedal.

4 MODE SWITCH
Changes the speed of attack of the compres- sion circuit. Fast for quick runs, slow for long sustained notes and medium sits in between the two.

5 WET-MIX-DRY
Control to allow a blend of dry signal with the compressed signal. Dialled Anti-clockwise is fully dry, dialled clockwise is fully wet with 50/50 being in the centre. Set to your taste.

6 SIGNAL INPUT
Bass / Guitar / Instrument input. Optimised for bass guitar but can accept other instruments.

7 FOOTSWITCH
Enables / Disables the pedal.

8 OUTPUT
The main FX Output (this is a mono device).

OPERATION
Install a good quality 9V battery into the pedal by unscrewing the base of the pedal and fitting the battery securely to the battery connector and then replace the base of the pedal.
Do not use excessive force to tighten up the 4 base plate screws as this could damage the screws.
When not in use it is always a good idea to remove the input jack from your pedal to prevent any unwanted battery power loss.
Caution - when you do not intend to use the pedal for a long period of time, it is always advisable to remove the battery to prevent current loss and battery leakage.
Alternatively - and highly recommended is the use of an external good quality DC 9V PSU.

SPECIFICATIONS

• Model : The CUSTARD FACTORY
• FX Type : BASS COMPRESSION
• Input Impedance : 1MΩ
• Output Impedance : 100Ω
• Noise Level (20-20KHz Filter) : <50μV
• Frequency Response Bypassed : 20-20KHz (+/- 0.5dB) Recommended Minimum Load Impedance : 10KΩ
• Power Supply : Regulated 9V DC PSU (Not Included), centre negative, 2.1x10mm connector type. Internal 9V PP3 battery included (alkaline recommended)
• Current Consumption : <10mA
• Battery Life : 30 hours – this will vary on use and selected battery
• Unit Dimensions : 58.5 x 74 x 121.55mm, 2.3” x 2.9” x 4.8”
• Net Weight : 0.38Kg, 0.8lbs
• Carton dimensions : 78.5 x 114.5 a 158mm, 3.1” x 4.5” x 6.2”
• Gross Weight : 0.6Kg, 1.3lbs
