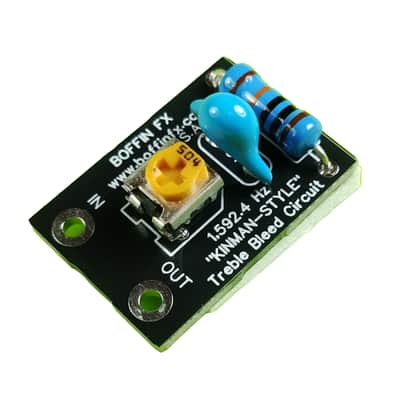

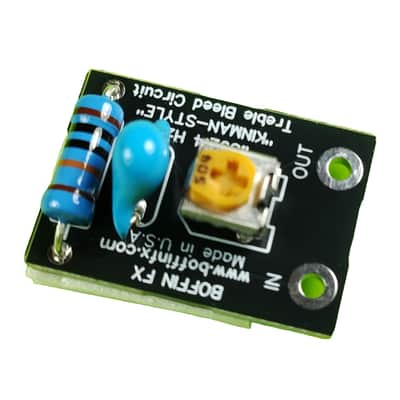

Boffin FX Guitar Kinman Adjustable Treble Bleed Circuit 1,592 Hz - Black

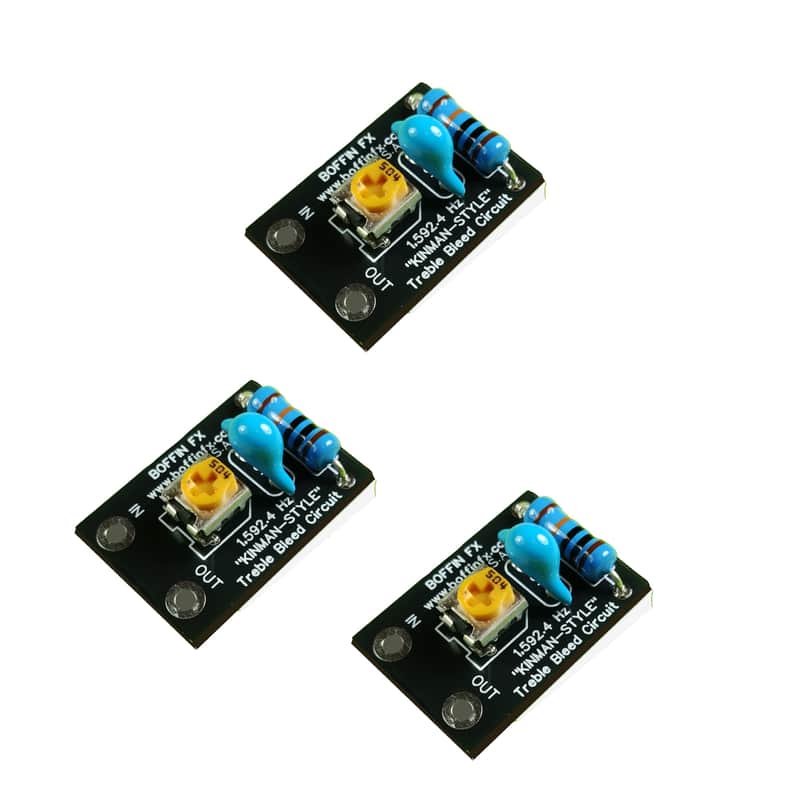

We are proud to introduce the “Kinman-style” Adjustable Treble Bleed Circuit 3 Pack.

What makes the “Kinman-style” different than our other Adjustable Treble Bleed circuits is that it features in-series circuitry. This helps with certain guitar setups that have issues with the volume sweep with the parallel circuitry of the Adjustable Treble Bleed circuits.

If you have been having issues with the volume sweep with the treble bleed circuit you currently have installed, you should try the “Kinman-style.”

The “Kinman-style” treble bleed circuit will help with retaining of high frequencies at lower volumes. The circuit will also provide a more even tone and better overall sound to a guitar.

The circuit includes a built-in adjustable trimmer for tuning the bleed circuit.

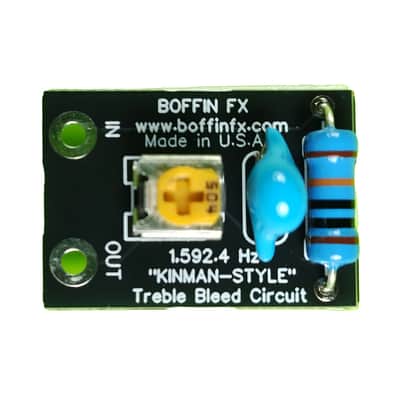

Easy installation by soldering hookup wires to the Input and Output pads on the board .

The Boffin FX treble bleed circuit has a peel-and-stick adhesive on the bottom for seamless installation.

This version is ideal for high output pickups both single coil and humbucker. Ideal for bridge pickups.

Selecting an Adjustable Treble Bleed Circuit:

Green – low output pickups both single coil and humbucker. Ideal for neck pickups.

Blue – Vintage humbuckers under 10k. Can be used for neck pickups.

Black – High output bridge pickups. Recommended for single coil Telecasters.

Specifications

Type: 0.001uF Capacitor / 100K Resistor

Cut Off Frequency: 1,592 Hz

500K Trim Pot for tuning bleed circuit.

Dimensions H x L: 25mm x 18mm / 1 inch x 0.6 inch
