ES-335 Pre-wired Harness Bumblebee Oil .022uF Caps CTS fits Gibson Historic Vintage ES-330

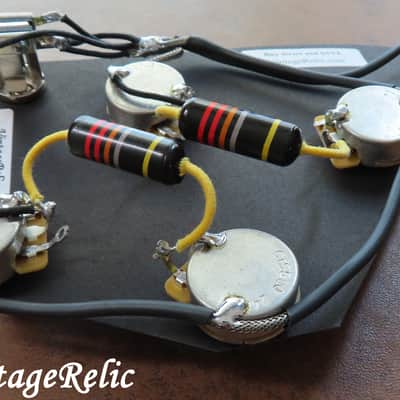

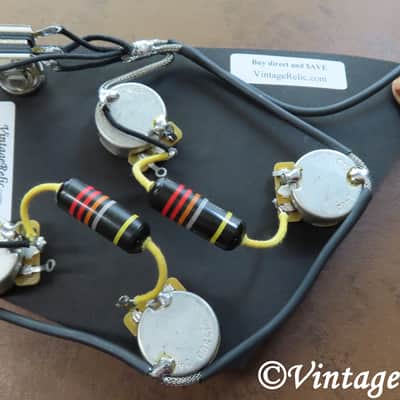

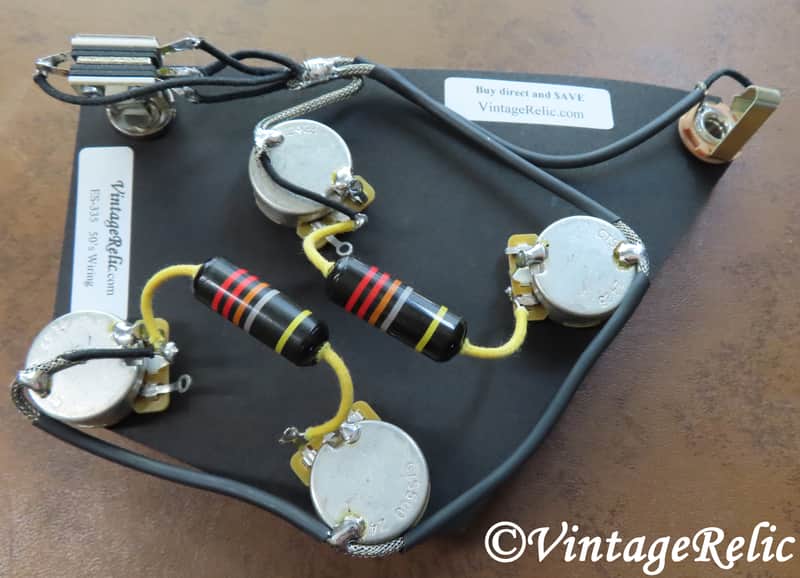

"Vintage Relic harness upgrade kit (Centralab Bumblebee caps) fits Gibson ES-335 ES-330. New. This is the best and most economical way to improve the tone of your ES series guitar! Direct replacement for your Historic ES-335 ES-330 1959 1958 1960 reissue. Hear what you've been missing from your humbuckers or P-90s! Pre-wired drop-in ready (just attach your pickups and ground wire).

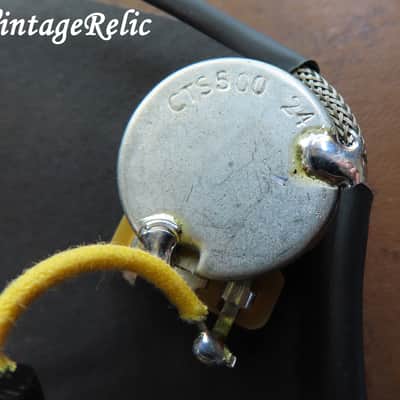

• 4 USA CTS 500k 10% Tolerance short shaft (brass) audio taper pots (2 volume, 2 tone). Top of the line CTS pots with tight tolerances and measuring ~550k. We do measure all pots and use higher values for the volume positions. You may request specific pot values and we will do our best to match those values; please provide this info at check out.

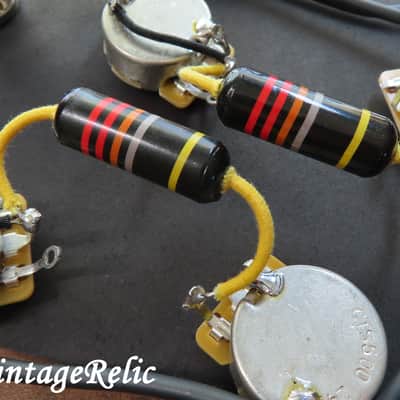

• 2  Centralab Bumblebee Oil Filled .022 uF tone capacitors. Non-inductive mylar and oil caps, these BUMBLEBEE tone caps use oil soaked mylar as di-electric material and are very smooth and natural in sound. Great sounding caps!

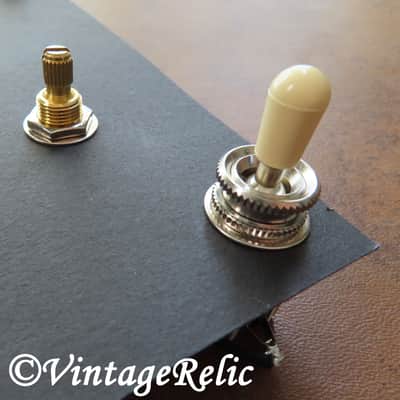

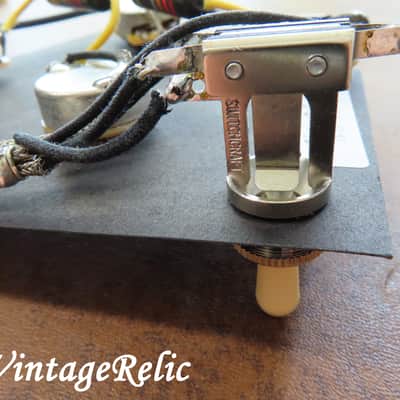

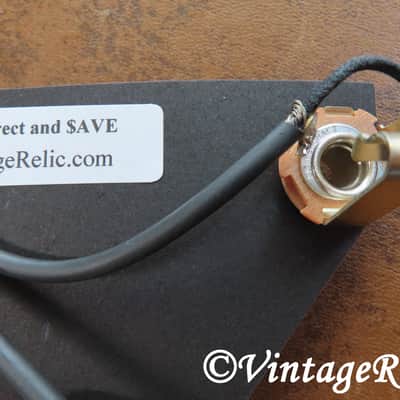

• Switchcraft short frame 3 way toggle switch and Switchcraft jack. Both flat and deep knurled switch nuts included.

• 50's style wiring.

• Cream switchtip (as shown) or you may request amber.

• Wiring diagram included.

Note: This kit is designed for Gibson ES-335 ES-330 Historic Reissue or vintage guitars that use short shaft pots. Also, CTS pots require a 3/8" hole (in the top of your guitar); most USA made guitars are drilled this way, however imported guitars often are not."

Distance between the components (center to center); if you need different spacing, let us know:

switch to neck volume = 1.75

neck volume to neck tone = 2.6"

neck volume to bridge volume = 2.6"

bridge volume to bridge tone = 2.6"

neck tone to jack = 2.6"

Above text and pictures copyright Vintage Relic. All rights reserved.

POT SPECS:

Can Size = 15/16 in. radius X 3/8 in. height

Bushing Threads = 3/8-32

Bushing Height = 3/8 in.

Shaft Type - split

Shaft Diameter = .238 in (6.3mm)

Spline Count = 24 (NOT metric)

Shaft Length - 3/8 in.

Hole size requirement = 3/8 in.

Value = ~550K Ohms

24 spline for USA knobs
