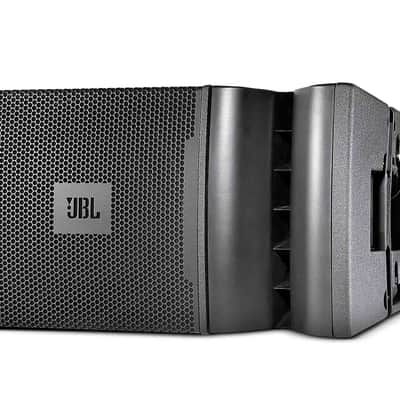

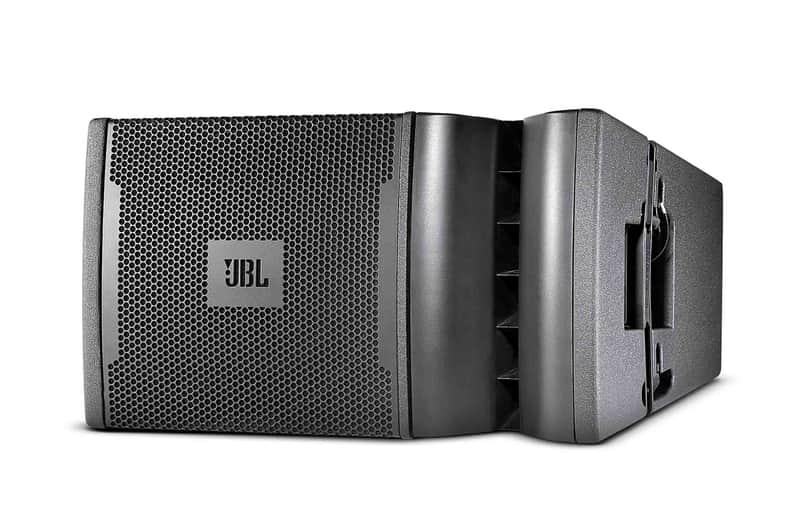

The JBL VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures. Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means of the Array Configuration Selector (ACS), a feature that provides amplitude shading when the system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array frame provide for a variety of mounting and suspension options. VRX932LA and VRX932LA-1 are completely interchangeable and can be used together. When operated in passive mode, frequency response characteristics are exactly the same and both can be used in the same array.

Product Specification:

Power Rating: 800 W / 1600 W / 3200 W

Frequency Range (-10dB): 57 Hz - 20 kHz

Dimensions (H x W x D): 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)

Frequency Response (±3 dB): 75 Hz - 20 Hz

Coverage Pattern: 100 x 15 nominal

Crossover Modes: Bi-amp / passive, externally switchable

Crossover Frequency: 132 dB SPL peak 1.2 kHz

Maximum SPL (1m): 130 dB SPL peak (passive mode)

LF: 130 dB HF: 139 dB

Sensitivity: Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL

LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.

HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver

Nominal Impedance: Passive = 8 ohm

Bi-amp LF = 8 ohm

Bi-amp HF = 8 ohm

Enclosure: 18 mm, 11-ply birch plywood

Suspension / Mounting: Optional VRX932LA-AF line array frame kit

Finish: Black DuraFlex finish

Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam

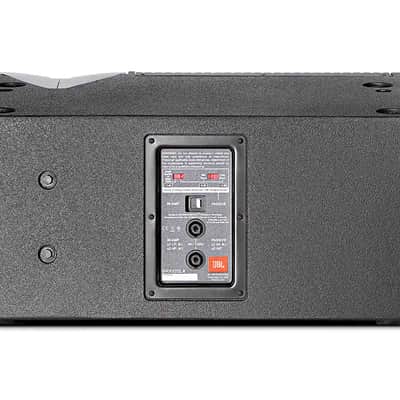

Inputs: Neutrik Speakon NL-4 (x2)

Net Weight (each): 21 kg (46 lb)

Outputs: 1 x XLR

System Type: Constant Curvature 12" Two-Way Line Array System
