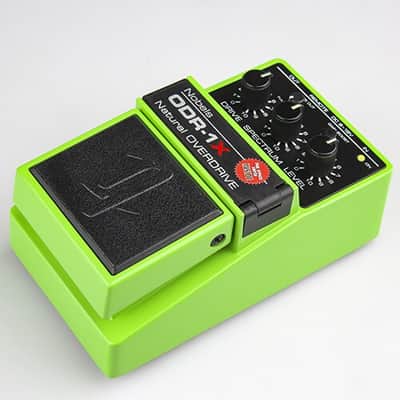

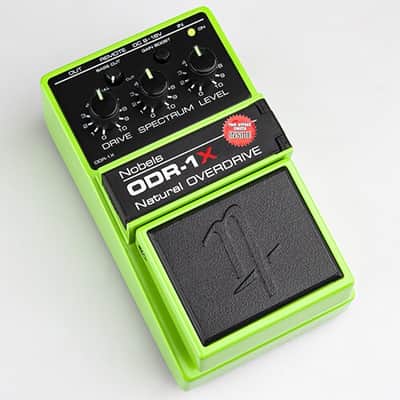

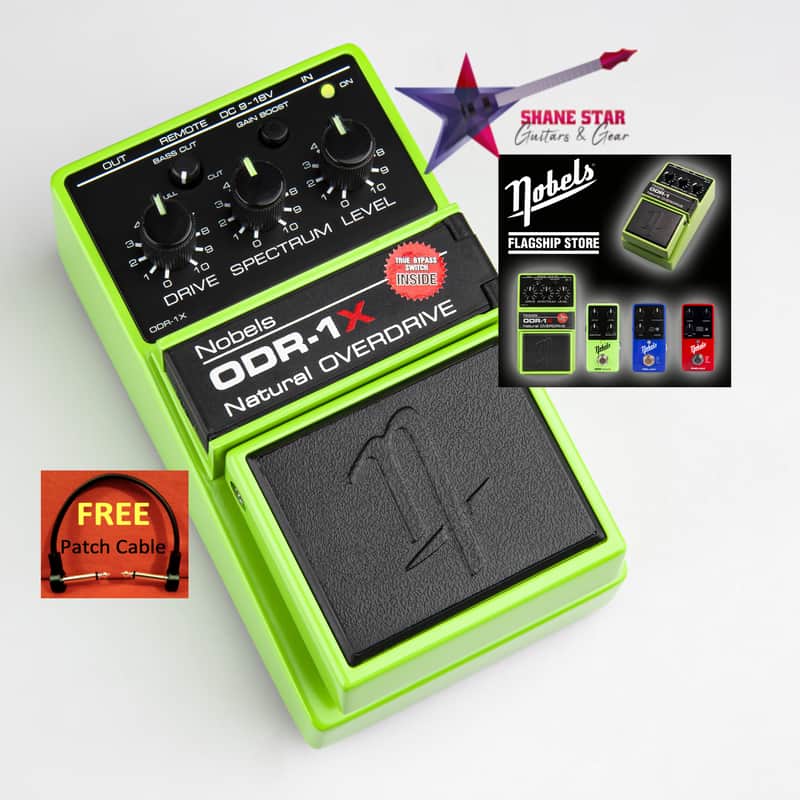

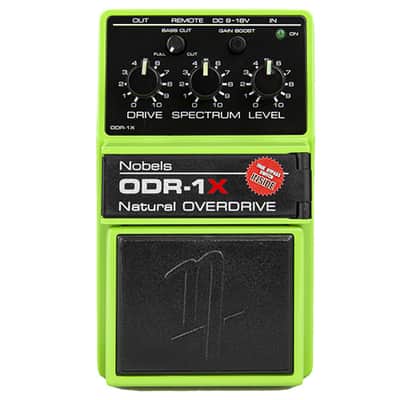

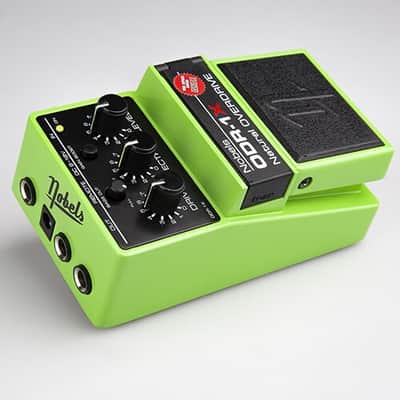

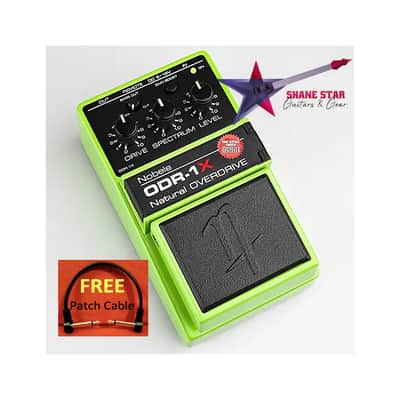

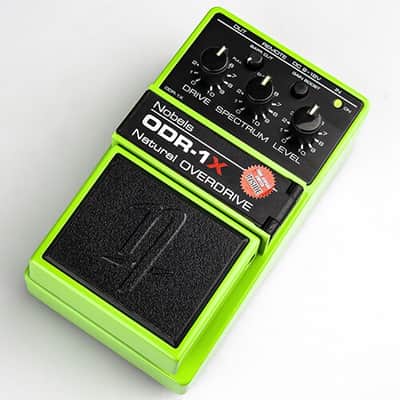

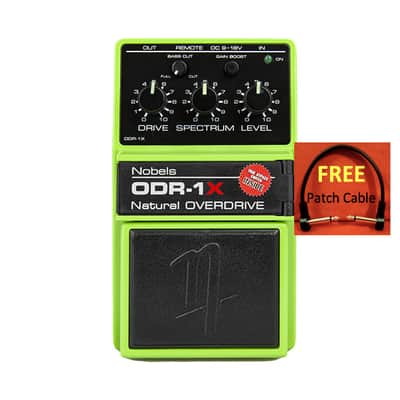

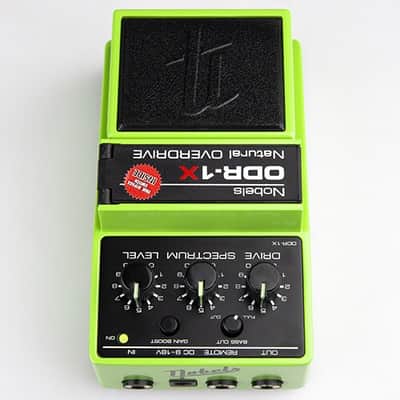

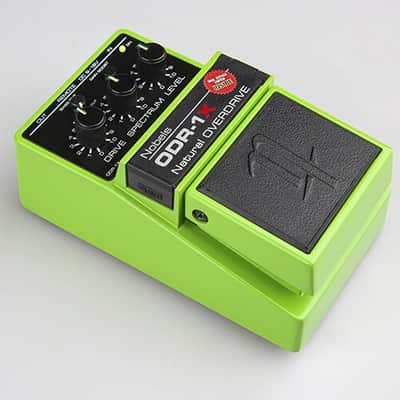

Nobels ODR-1X Natural Overdrive (WATCHLIST OFFER) Hi-Gain Boost + External Bass Cut Pot & Option To Change Between True Bypass Or Buffered Bypass!

The Best Just Got Better!! The new Nobels ODR-1X is the next generation of this now legendary overdrive, heralding a new chapter in the Nobels overdrive legacy. Due to popular demand, a convenient external bass cut pot has been added, as well as the option to change between true bypass or buffered bypass. For hi-gain aficionados, a new switchable hi-gain boost is also now available.

Visit shanestarguitarsandgear.com for more product selection, new gear info, and factory warranties. Plus, state tax laws do not require our business to charge sales tax. Thank you!!

This is capable of transforming ODR-1X into a true hard rock monster. With the ability to control both the gain boost and on/off remotely, along with the unique SPECTRUM tone control, fold-out Mounty-P mounting plates and knobs with fluorescent ‘Glow in the Dark’ pointers, the ODR-1X adds worthwhile flexibility and utility to a time-tested favorite.

Shane Star Guitars and Gear is an Authorized Nobels Retailer.
Factory Warranty.
Contact us with any questions. We will reply quickly and ship quickly. Thank you!

Features

• New Variable Bass Cut knob to adjust the low end
• New Switch between True and Buffered Bypass
• New Gain Boost switch with remote control option
• Natural Analog Overdrive effect pedal
• Vintage ODR-1 Sound
• Spectrum: double filter tone control cuts/boosts bass and treble
• Glow-In-The-Dark Pointer Knobs
• Overhead battery compartment
• Remote connection for optional footswitch
• Includes 4x integrated Mounty-P Mounting Plates
• Powered by 9V battery or optional 9-18V power supply (not included)

Specs

Power (DC): 9V battery (optional) or 9V~18V power supply

Power connector: 2.1 mm, center negative

Consumption: max. 15 mA

Input impedance: approx. 1 MΩ

Output impedance: approx. 2.2 kΩ

Max. input level: +6 dB

Controls: Drive, Spectrum, Level, Bass Cut

Gain Boost: up to 29.5 dB

Switches: ON/Off, Gain Boost, True/Buffered Bypass

Jacks: DC, TS 1/4" Input & Output, Remote (TRS)

LED Indicators: 1x green (On/Off), 1x red Gain Boost

Mounty-P: 4x integrated fold-out mounting plates

Adjustable Bass Cut

For extended ease of use, the internal Bass Cut feature originally included in the ODR-1BC is now available as an external variable control right on the face of the pedal. This allows for complete opti- misation of the pedal’s bass response on the fly, at the simple turn of a knob. The flexibility of this new additional control compliments Nobels’ unique and renowned SPECTRUM tone control, which alters the proportion of both the low-mid and high frequencies simultaneously. At midday, the frequencies remain almost untou- ched. However, moving from the minimum to maximum positions will deliver variations in frequency response that are suitable for a wealth of musical tastes and styles.

Under the hood...

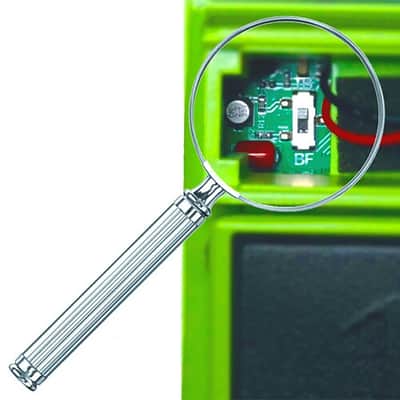

ODR-1X also now features the ability to switch between True Bypass and Buffered Bypass via a mini switch that is located within the top loading battery compartment. True Bypass gives the maxi- mum tonal purity. While players who are using longer cable runs, can switch to Buffered Bypass mode to preserve high frequencies.

Gain boost switch

This switch turns the ODR-1 X into a real monster with extra gain. It is suitable for powerful hard rock sounds or gives a solo the right assertiveness. This function can also be operated remotely!
