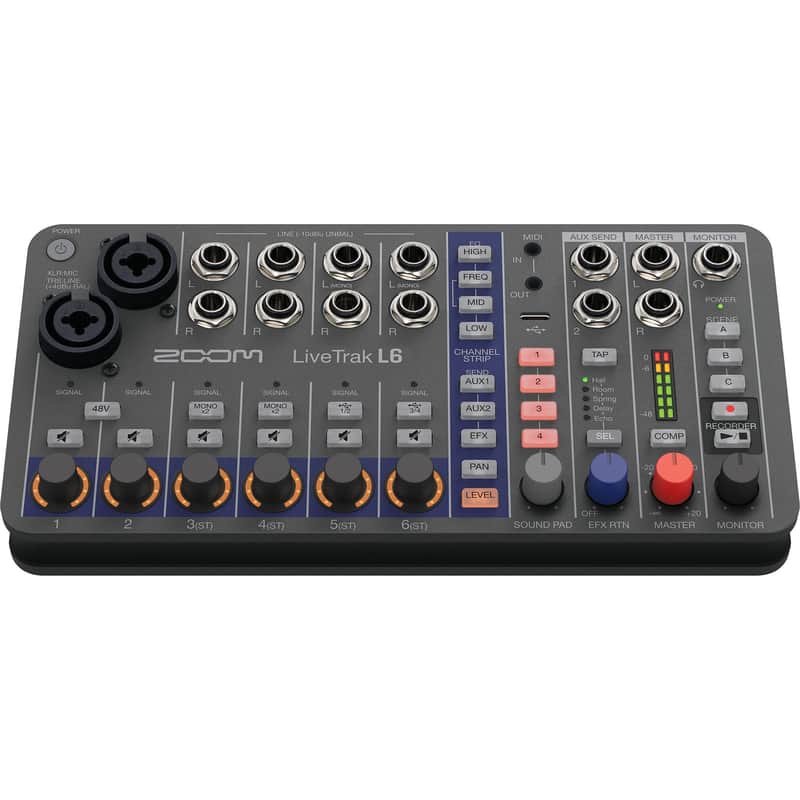

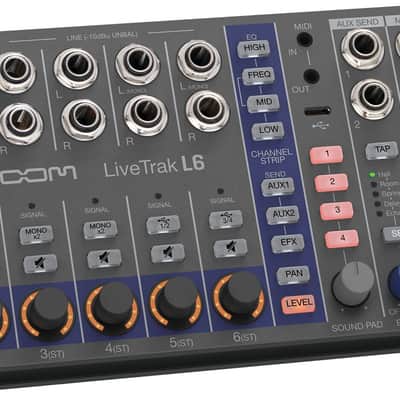

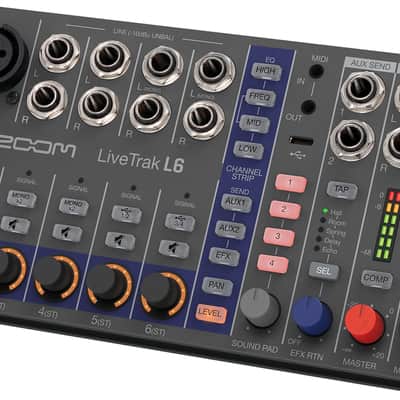

The LiveTrak L6 is Zoom's most compact and portable digital mixer/recorder. With 10 tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more.

Features:

- Compact and portable

- 10-tracks of studio quality audio

- Full channel strip controls for each track

- 3-band mid-sweepable EQ, aux sends, pan, and effects

- Tracks the full stereo mix on an SD card, up to 1TB

- 32-bit float and pristine sounding preamps

- 2 XLR/TRS combo inputs, 2 stereo TRS inputs, & 2 stereo/mono TRS inputs

- Send custom mixes to monitors, effects, or external devices

- Connect to studio monitors or live speakers

- Headphone output with volume control

- Onboard effects include Delay, Echo, plus Spring, Room, & Hall reverbs

- Output compressor increases loudness while adding natural saturation

- Connect Outboard gear like drum machines and synths

- Map parameter controls such as volume, pan, and EQ to outboard gear

- Tempo synchronization with effects like delay

- Sound pads to trigger pre-recorded backing tracks or samples

- The L6 Editor gives you access to settings and MIDI programming

Full Featured Mixer

Don't let its size fool you. The L6 is designed with big mixer capabilities; full channel strip controls for each track including 3-band mid-sweepable EQ, aux sends, pan, and effects.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on an SD card up to 1TB. Share the live mix, or transfer your multi-track audio files to your favorite DAW for editing and mixing.

32-Bit Float Technology

With 32-bit float and pristine sounding preamps, you will get clip-free audio every time, without the need to set gain.

Battery Power

Use four AAs for up to 3 hours of power or an external USB battery for extended use.

Tons of I/O

Plenty of Inputs

- 2 XLR/TRS combo inputs plus 4-stereo 1/4" inputs

- Get two additional mono inputs instead of a stereo input

- USB Audio Return for backing tracks and other audio from a Laptop

The Right Outputs

- Send custom mixes to monitors, effects, or external devices

- Connect to studio monitors or live speakers

- Headphone output with volume control

Loaded with Effects

Enhance your mix with effects including Delay, Echo, and Spring, Room, and Hall reverbs.

Advanced Compressor

The L6's main output compressor increases loudness while adding natural saturation. With 32-bit float, the audio will never clip, even at high volume.

MIDI Connectivity

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

Record & Control

The L6 can be used as a 32-bit float 10-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the SD card. It's also a control surface for your favorite DAW.

Broadcast & Stream

The L6 is the perfect companion for video streams that need broadcast quality audio no matter the location. Connect to your favorite streaming software on PC, Mac, iOS devices.

LED Control Knobs

Adjust levels and parameters quickly and precisely with the LED control knobs.

Sound Pads

Trigger pre-recorded backing tracks or samples using one of the four sound pads. You can also sample in real time for live jams and performances.

L6 Editor Software

The L6 Editor gives you access to settings and MIDI programming. Customize effect parameters, AUX send points, sound pad settings, and more.

Scene Saving

Once you've dialed in your mix, save it to one of the three Scene memories for instant recall.

Eurorack

The L6 is mountable to a standard Eurorack case using the optional ERL-6 rack ears and power supply.

Package Includes:- LiveTrak L6

- AD-17 USB AC Adapter

- USB-C Cable

Number of Inputs:

- MIC/LINE (mono) x2

- LINE (stereo) x4

Number of Outputs:

- AUX SEND (mono) x2

- MASTER (stereo) x1

- MONITOR (stereo) x1

Number of Buses:

- MASTER x1

- AUX SEND x2

- SEND EFX x1

MIC/LINE Inputs

Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Input impedance:

XLR: 3.8 k or more

TRS: 39 k or more

Maximum input level:

XLR: +4 dBu

TRS: +24 dBu

Phantom power: +48 V (Channel total of 10 mA or less)

LINE Inputs

Connectors: 8 TS phone jacks (balanced)

Input impedance: 10 k

Maximum input level: +9 dBu

AUX SEND Outputs

Connectors: 2 TRS phone jacks (impedance balanced)

Maximum output level: +9.5 dBu

Output impedance: 147

MASTER Outputs

Connectors: 2 TRS phone jacks (balanced)

Maximum output level: +15 dBu

Output impedance: 147

Monitor Output

Connector: TRS phone jack

Maximum output level: 50 mW + 50 mW (63 load)

Output impedance: 14.7

Channel strip

EQ:

HIGH: 10 kHz, 15 dB, shelving

MID: 100 Hz 8 kHz, 15 dB, peaking

LOW: 100 Hz, 15 dB, shelving

Level meters: 6 segments

Send effects: 5 types

Recorder

Maximum simultaneous recording tracks: 12

Maximum simultaneous playback tracks: 2

Recording formats: 48kHz, 32-bit float, mono/stereo WAV

Recording media:

microSDHC memory cards (Class 10 or higher)

microSDXC memory cards (Class 10 or higher)

Audio interface

Input: 12 channels

Output: 4 channels

Sampling frequency: 48 kHz

Bit depth: 32-bit float / 24-bit

Interface USB: 2.0

Card reader Class Mass storage class: USB 2.0 High Speed

Sampling frequency: 48 kHz

Frequency response: 20 Hz 20 kHz / -1.0 dB

Equivalent input noise: -120 dBu or less (IHF-A) at 150 input

Power

Accepted Power Sources:

4 AA batteries (alkaline, lithium, or rechargeable NiMH)

AC adapter (ZOOM AD-17): DC 5V/1A

USB bus power is supported

Estimated Battery Life (continuous recording time using):

Alkaline batteries: about 3 hours

NiMH batteries (1900 mAh): about 3.5 hours

Lithium batteries: about 7 hours

Power consumption: 5W maximum

Dimensions (WxDxH): 223 mm 114 mm 46.5 mm

Weight (unit only): 526g

Weight (including batteries): 618g
