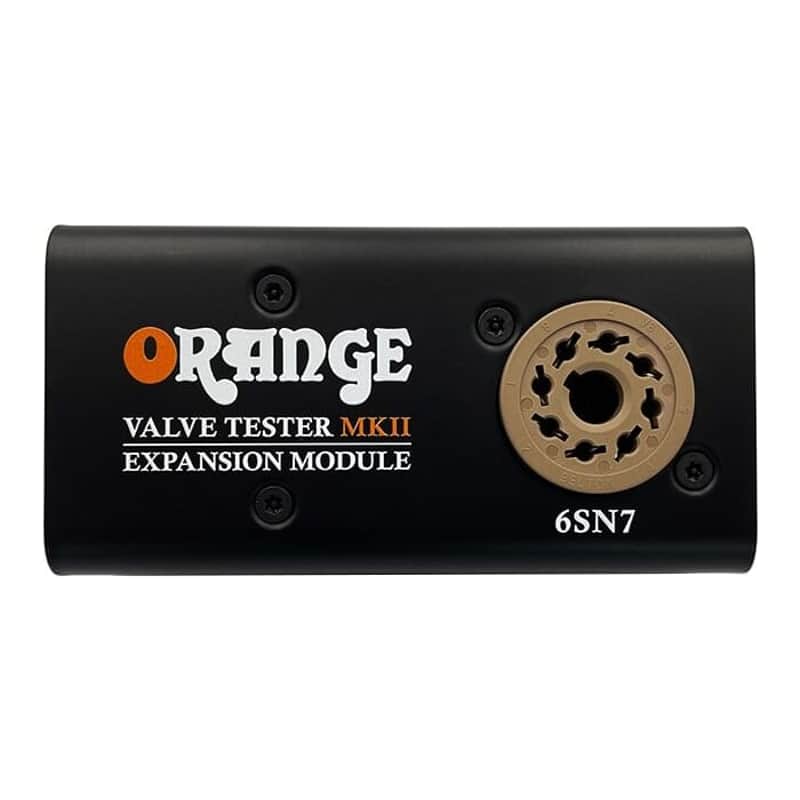

Orange Valve Tester MKII Expansion Module, Module A - 6SN7

The Expansion Module is an optional accessory to provide testing and evaluation for a valve not included in the many valves already covered by the Orange Valve Tester MKII.

Examples of these bespoke "Expansion Modules available, include the rectifier valve (GZ34) and other specialist Hi-Fi valves including (300B, 6SN7, EZ80, EF86).

Features:

- Reliably tests Valves/Tubes

- Specifically designed of 6SN7 Valves

- Compatible with the Orange Valve Tester MkII

Specs:

Style: Test equipment

Testable Valves: EL34, 6CA7, 6L6, 6V6, 6V6GTA, KT66, KT77, KT88, KT120, 6550, 5881, EL84, 6BQ5, ECC81, 12AT7, ECC82, 12AU7, ECC83, 12AX7, 12BH7

Weight: 1.56 kg ( 3.44 lbs )

Included in box: 1 x Valve Tester MKII | 1 x Power Supply | 1 x Mains lead | 1 x Manual | 1 x Pencil

Dimensions (WxDxH): 17.6cm x 16.2 x 6.8cm (6.9 x 6.4 x 2.7 inch)

Expansion Modules Currently Available: 3000B, 6SN7, EF86, EZ80, GZ34

Expansion Module Dimensions (WxDxH): 11cm x 5.5 x 6cm (4.33 x 2.17 x 2.36 inch)

Expansion Module Weight: 0.34 kg ( 0.75 lbs )
