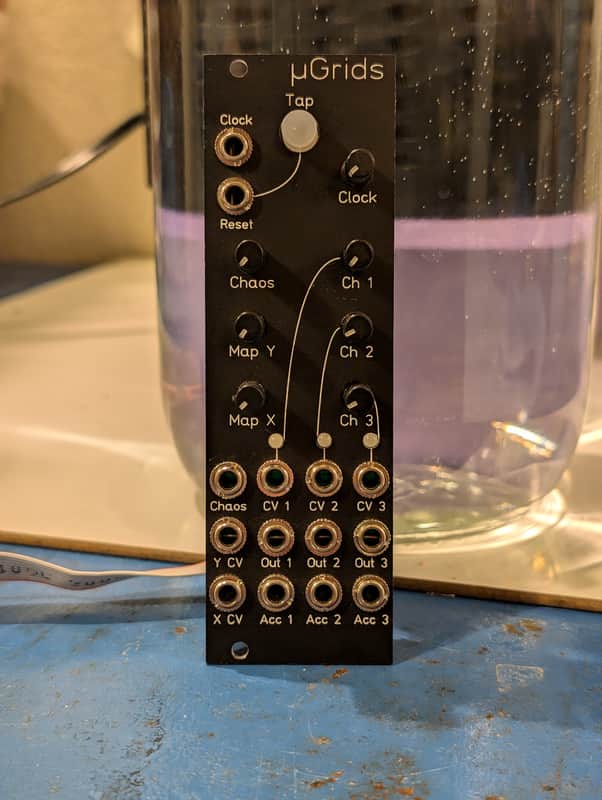

Michigan Synth Works uGrids

Excellent condition. Comes with original box and power ribbon.

-

uGrids is an 8hp variant of Mutable Instruments Grids - with endless varieties of possibilities to trigger percussion and other modules - bring a little random rhythmic freshness to your rig.

Clocking

• Internal clock with a 40 to 240 BPM range.
• Beat indicator / Tap tempo button (reconfigurable as a reset button).
• External clock input, with selectable resolution (24, 8 or 4 ppqn).
• Pattern reset trigger input.

Drum pattern generator

Based on a compressed representations of drum patterns and their variations.

• X/Y (pattern selection) knobs with CV inputs.
• Pattern complexity/density knobs for channels 1, 2, 3, with CV inputs.
• Pattern randomization knob with CV input (reconfigurable as a swing control for the internal clock).
• 3 output channels (BD, SD, and HH/percussion).
• 3 additional outputs, configurable as Accent/Clock/Reset or per-channel accent.
• Outputs can be either triggers or gates.
