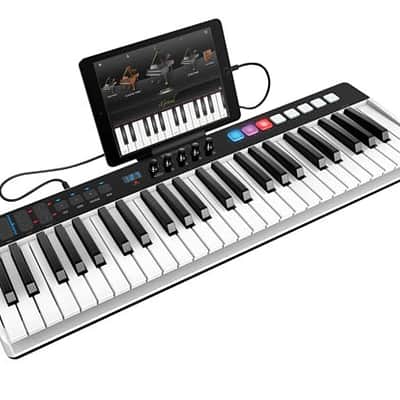

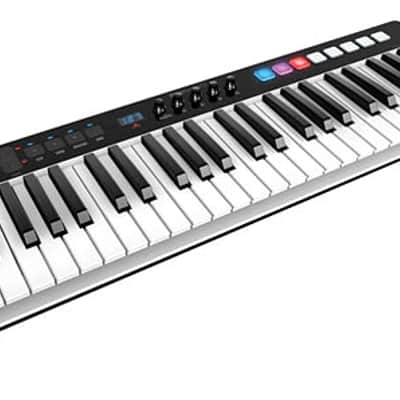

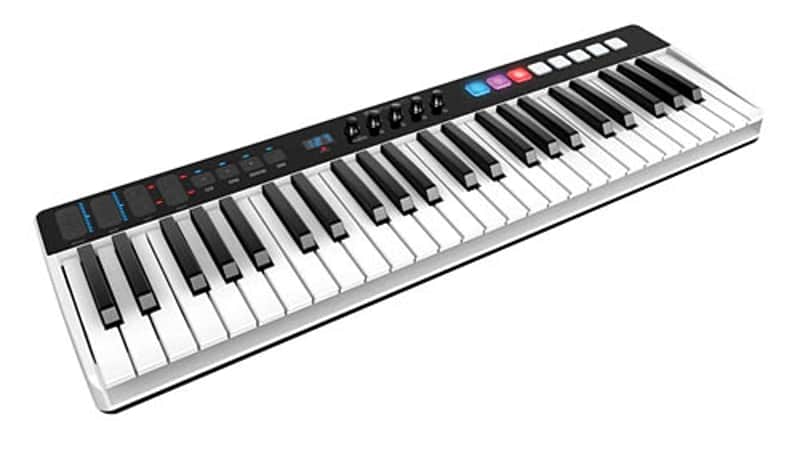

The all-in-one music production station that goes anywhere you want

The iRig® Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 or 49 full sized keys together with a fully-fledged professional audio interfacefeaturing 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)

iRig Keys I/O Specifications

Microphone Input

Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground

Microphone Input Level: from 6 mVpp to 1.4 Vpp

Microphone Input Impedance: 3.2 kOhms

Gain Range: 46 dB

Phantom Power: +48V ± 4V

Frequency Response: 20 Hz - 20 kHz +/-1.5dB

Input Noise: -100 dB RMS

Instrument Input

Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground

Instrument Input Level: from 30 mVpp to 6.9 Vpp

Instrument Input Impedance: 1 MOhms

Gain Range: 27 dB

Frequency Response: 20 Hz - 20 kHz +/-1.5dB

Input Noise: -100 dB RMS

Line Output

Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground

Floating Balanced Outputs with automatic level compensation when working in unbalanced mode

Maximum Output Level: +13 dBu into 600 Ohms balanced load

Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)

Output Dynamic Range: 102 dB(A)

Output Impedance: 150 Ohms balanced

Stereo Headphone Output

Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground

Headphone Level Power 100mW into 50 Ohms

Other Input/Output

DC barrel: 1x DC barrel. For power and device charging.

Device Connector: mini-DIN

External Pedal Input: 1/4" TRS Jack

Common

Conversion: 16 or 24-bit A/D - D/A

Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Power:

• USB bus powered when used with a computer

• Battery powered (4xAA included) when used with an iOS device

• DC power supply (not included, iRig PSU 3A sold separately)*

Keyboard

Keys: 25 or 49 (depending on the version) full-size keys with velocity

Pads

8 velocity-sensitive multi color assignable pads
