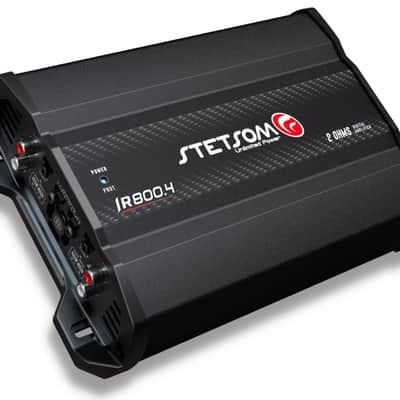

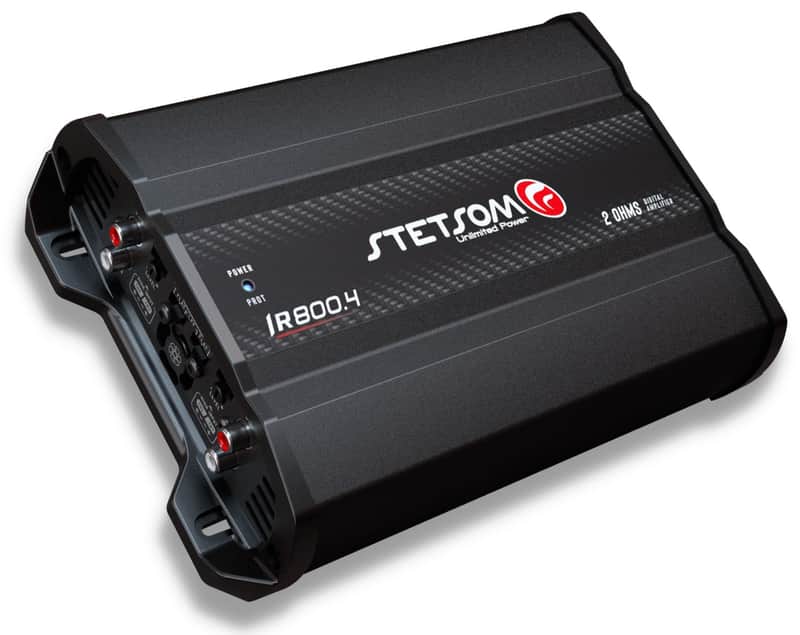

Stetsom IR800.4 2-Ohms Compact Digital Full Range Amplifier 4-Channel 800 Watts

SPECIFICATIONS

• CHARACTERISTICSIR800.4 – 2 OHMS

Number of Channels

• 4

RMS Power

• 800W

RMS Power at 2 Ohm 12.6V

• 4 x 200W (STEREO)

RMS Power at 4 Ohm 12.6V

• 4 x 135W (STEREO)

RMS Power at 2 Ohm 14.4V

• 4 x 265W

RMS Power at 4 Ohm 14.4V

• 4 x 175W (STEREO)

Power @ 12.6V Bridge 4 Ohms

• 2 x 400W (BRIDGE)

Power @ 13.8V Bridge 4 Ohms

• 2 x 530W (BRIDGE)

Supply Voltage

• 9V ~15,5V

Frequency Response

• 5Hz ~ 22 KHz

Crossover Low Pass

• 90 Hz

Crossover High Pass

• 90 Hz

Signal to Noise

• >80 dB

Input Sensitivity

• RCA: 0,2V / FIO: 1,5V

Input Impedance

• RCA: 30K Ohms / FIO: 1K Ohms

Impedance Output

• STEREO: 2 OHMS / BRIDGE: 4 OHMS

Consumption with Signal Musical

• 44A

Consumption with Signal Bass

• 88A

Dimensions (H x W x D) mm

• 55 x 162 x 235,5 mm

Weight Kg

• 1,5 Kg
