Fender US Stratocaster Deluxe • 2005 • Tobacco Sunburst • Excellent Original Condition • Original Tweed Case

Extraordinary player, incredible tone.
Excellent physical condition
Low action, no buzzes.
Straight neck, no fret wear.
Shows light wear from careful adult playing
Fresh setup
Comes with upgraded Schaller Locking Strap Locks.
Weighs 8lbs 8oz.

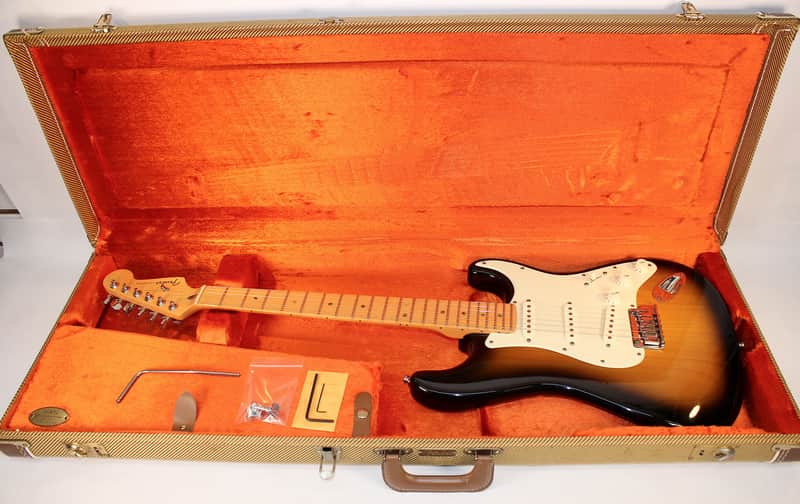

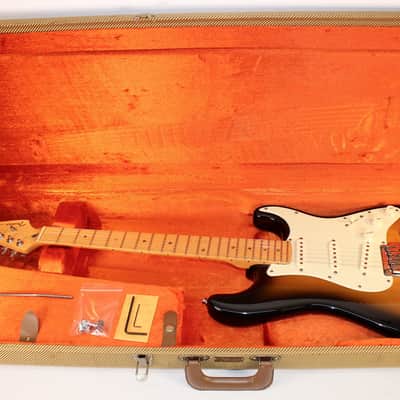

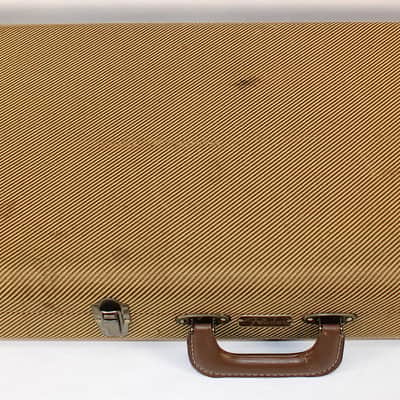

Original Tweed case has an amazing interior, and average wear exterior as expected due to it's 19 years of protecting this amazing Strat.

FACTORY SPECS:
Model Name: AMERICAN DELUXE STRATOCASTER
Model Number: 010-1200-(Color #) and 010-1202-(Color #)
Series: AMERICAN DELUXE SERIES
Body: SELECT ALDER
Neck: MAPLE MODERN "C" SHAPE (Satin Urethane Finish)
Fingerboard: Maple (P/N 010-1200),
Radius: 9.5” (241 mm)
Frets: 22 MEDIUM JUMBO FRETS
Scale Length: 25.5” (648 mm)
Nut: 1.6875” (43 mm)
Hardware: Chrome

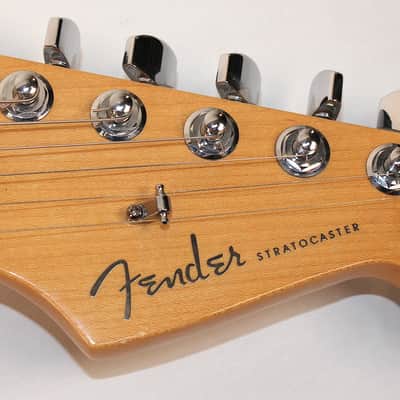

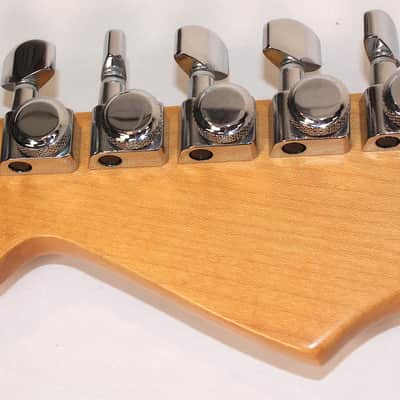

Machine Heads: FENDER SCHALLER DELUXE STAGGERED CAST/SEALED LOCKING TUNING MACHINES

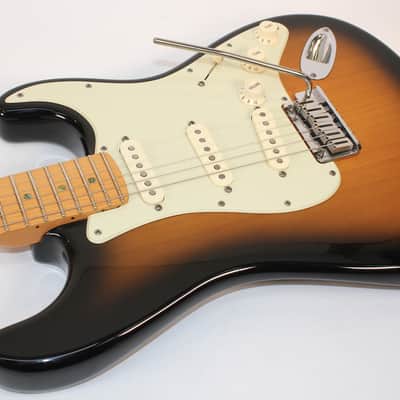

Bridge: FENDER DELUXE 2-POINT SYNCHRONIZED TREMOLO W/ POP IN ARM
Pickguard: 1-PLY WHITE

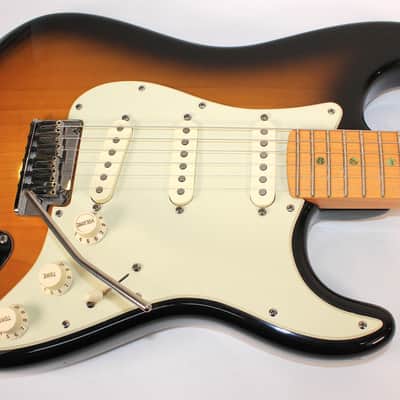

Pickups: 3 SAMARIUM COBALT NOISELESS TM STRAT PICKUPS (Neck/Middle/Bridge)
Pickup Switching: 5-POSITION BLADE & 2-POSITION PUSH/PUSH S-1TM
S-1 Switch Up:
Position 1. Bridge Pickup
Position 2. Bridge and Middle Pickup in Parallel
Position 3. Middle Pickup
Position 4. Middle and Neck Pickup in Parallel
Position 5. Neck Pickup
S-1 Switch Down:
Position 1. Bridge Pickup in Series with Middle Pickup
Position 2. Bridge Pickup in Parallel with Special Capacitor and in Series with Middle Pickup
Position 3. Bridge/Middle/Neck Pickups with Neck and Bridge Pickups in Parallel and in Series with Middle pickup
Position 4. Neck Pickup in Parallel with Special Capacitor and in Series with Middle Pickup
Position 5. Neck Pickup in Series with Middle Pickup
Controls: Master Volume (W/ S-1TM SWITCH),
Tone 1. (Neck Pickup),
Tone 2. No-Load Tone Control (Middle and Bridge Pickups)
Colors: Tobacco Sunburst
Strings: Fender® Super Bullets® 3250L, Nickel Plated Steel, (.009 to .042), p/n 073-3250-003
Case: FENDER STANDARD TWEED CASE.

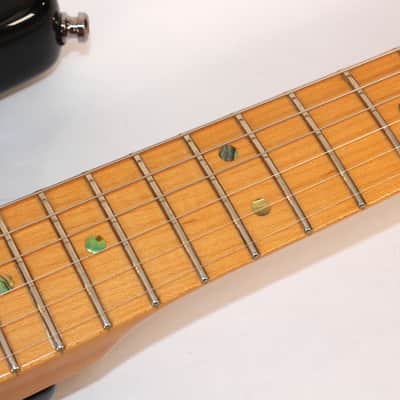

Other Features: S-1 SWITCHING, AGED PLASTIC PARTS, ABALONE DOT POSITION INLAYS, HIGHLY DETAILED FRET & NUT WORK
Source: U.S.
INTRODUCED: 1/2004
DISCONTINUED: 1/2010
Wrench Sizes: Truss Rod/Tilt Adjustment Wrench, (1/8” Hex), P/N 0023811000,
Saddle Height Adjustment Wrench, (.050” Hex), P/N 0018531000

Pickups Overview

Classic Strat performance without the noise!

Stick a set of Samarium Cobalt Noiseless pickups in your Fender Stratocaster for souped-up, fireball feel and authentic tone in a noise-free design. The Fender mod shop designed these Strat SCN pickups to deliver tried-and-true Stratocaster sound with huge bite and no noise. The bridge pickup has a DC resistance of 11.6K with inductance of 3.8 Henries. The middle pickup has a DC resistance of 6.5K with inductance of 2.4 Henries. The neck has a DC resistance of 6.5K and inductance of 2.4 Henries.

A special combination of traditional magnets and Samarium Cobalt magnetic material delivers incredible dynamic and magnetic response. These pickups pack more than 50 years of Fender tone heritage while giving you absolutely authentic, noise-free Stratocaster sound and feel. This pickup set comes as standard equipment in Fender's American Deluxe Strats.

FEATURES

• Noise-free Stratocaster pickup set
• Samarium Cobalt Noiseless (SCN) pickups
• Bridge pickup: 1.6K DC resistance; 3.8 Henries inductance
• Middle pickup: 6.5K DC resistance; 2.4 Henries inductance
• Neck pickup: 6.5K DC resistance; 2.4 Henries inductance
