High-Resolution Sound Monitoring, Fine-Tuned for Roland’s V-Drums

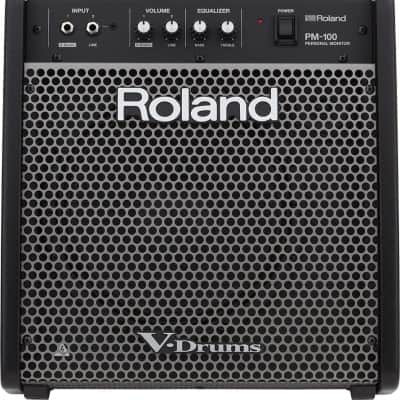

Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.

• Premium all-in-one monitor designed for use with V-Drums electronic percussion products
• Full-range audio system with 80 watts of power, custom 10-inch speaker, and tweeter
• Angled design provides ideal sound coverage for the seated player
• Integrated mixer with independent volume controls and global EQ
• Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
• Unique full-width bar handle for easy floor adjustment and carrying convenience

Pro-Level Sound for Playing V-Drums

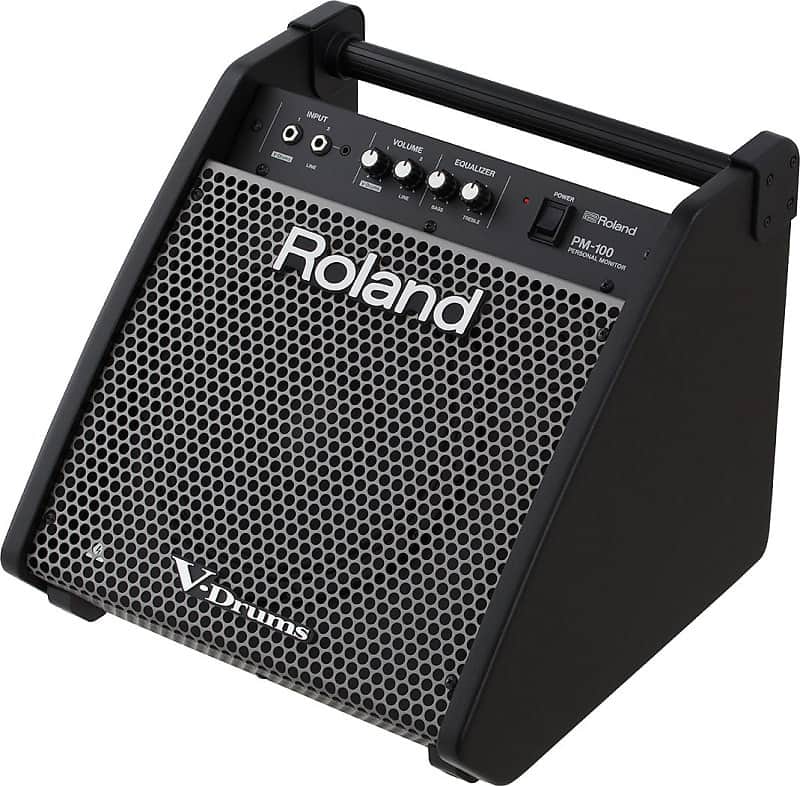

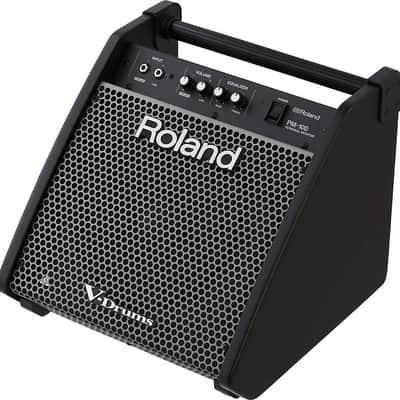

The PM-100 is the perfect complement to any V-Drums set. Its compact size is ideal for playing at home, and the powerful custom speaker system delivers rich, full-range sound with inspiring punch and presence. The front face is angled for optimal sound monitoring while seated at the V-Drums, and a full-width bar handle on top offers a convenient way to carry the monitor and adjust its floor position.

Versatile Onboard Mixing

With its integrated mixer, the PM-100 allows you to monitor backing music and external devices along with your kit. There’s a dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players. Independent volume controls are provided for the V-Drums and line input sections, and there’s also a two-band equalizer for shaping the overall sound.

Specifications

Rated Power Output
    80 W
Nominal Input Level
    V-Drums INPUT: -6 dBu (10 k ohms)
    LINE INPUT: -6 dBu (10 k ohms)
Speaker
    25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1
Controls
    POWER switch
    V-Drums VOLUME knob
    LINE INPUT VOLUME knob
    BASS knob
    TREBLE knob
Indicators
    POWER
Connectors
    V-Drums INPUT jack: Stereo 1/4-inch phone type
    LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
    AC IN jack
Power Consumption
    36 W
Accessories
    Owner's manual
    Power cord
Size and Weight
Width
    388 mm
    15-5/16 inches
Depth
    407 mm
    16-1/16 inches
Height
    354 mm
    13-15/16 inches
Weight
    13.5 kg
    29 lbs 13 oz
