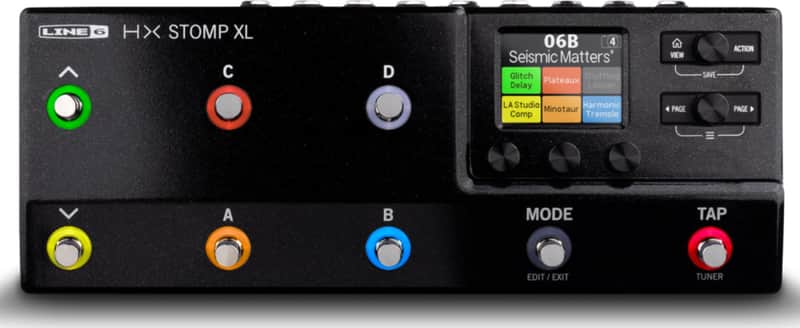

HX Stomp™ XL is a professional-grade amp and effects processor that delivers HX™ modeling in a performance-ready pedal with eight capacitive-touch footswitches. The same SHARC® DSP chip found in Line 6's flagship Helix® products enables the HX Stomp XL pedal to run up to eight processing blocks simultaneously, and the assignable footswitches let you access and control those blocks in powerful ways, making it flexible enough for use in nearly any application. Use HX Stomp XL as a “super stompbox”, a backup or travel rig, an add-on tone expander with other modelers, a professional-quality audio interface, or even a complete guitar or bass rig. The HX Stomp XL processor’s Command Center functionality, MIDI capabilities, and external expression pedal jack also make it an ideal master controller for your entire setup.

Product Features

• The power of HX Stomp-now with eight footswitches
• Exceptional sound quality with 123dB of dynamic range
• Eight capacitive-touch footswitches with color-coded LED rings
• More than 300 HX and legacy amps, cabs, and effects—up to 8 simultaneous
• Supports third-party impulse responses (IRs)
• World-class polyphonic pitch-shifting effects
• Split/parallel signal paths for maximum routing flexibility
• Dual expression pedal/footswitch input for greater creative control
• Stereo effects loop (mono/stereo TRS send + stereo returns)

Attributes

• Color: Black

Technical Specifications

• Features: Power Supply Included
• Dimensions: 2.7" H x 12.4" W x 4.7" D
• Weight: 3.3 lbs

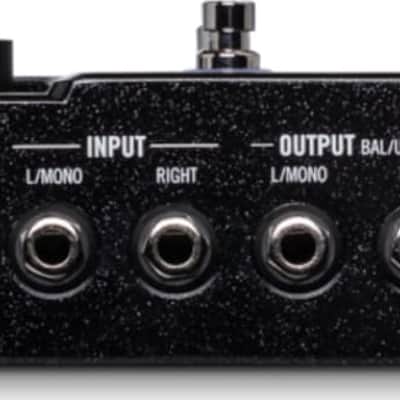

• Inputs: 2 x 1/4" (Inputs), 1 x 1/4" (Expression), 2 x 1/4" (FX Return)
• Outputs: 2 x 1/4" (Outputs), 1 x 1/4" (Headphones), 1 x 1/4" (FX Send)
• MIDI: In, Out, Thru
• Power Source: 9V DC power supply (included)
• USB: 1 x Type B
• Effects: Multi-Effect
• Amp Modeling: 80+ Amps, 60+ Cabinets, 3D Mic Placement (HX Edit 3.50 app)
• Processing Type: Digital
• Presets: 128 (32 banks x 4 presets), 4 Snapshots per preset
• # of Effects: 200+ (Helix & Legacy combined), Up to 8 simultaneous FX
• Looper: 6-switch Looper, 1-switch Looper, Shuffling Looper
• Compatibility: Windows, macOS
• Looping Time: 60 seconds (mono), 30 seconds (stereo)
