Marantz Model 5120 Cassette Tape Deck

This Item has been totally Restored, serviced and ready to play

This Marantz 5120 is a stereo cassette deck with Dolby B noise reduction, it was first sold by Marantz in 1976 with a list price of USD $329 and discontinued a year later.

The main features of the Marantz 5120 are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and ferro-chrome tapes, belt driven single-capstan transport.

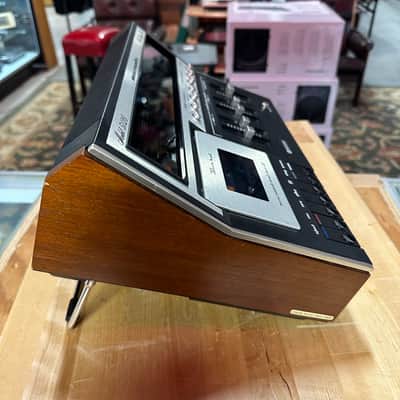

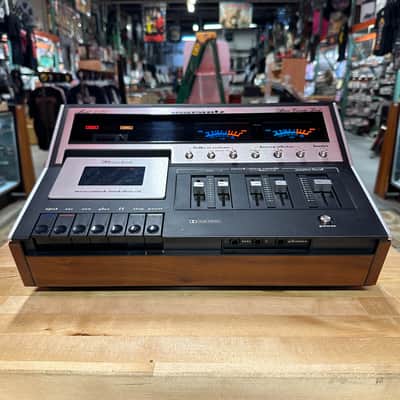

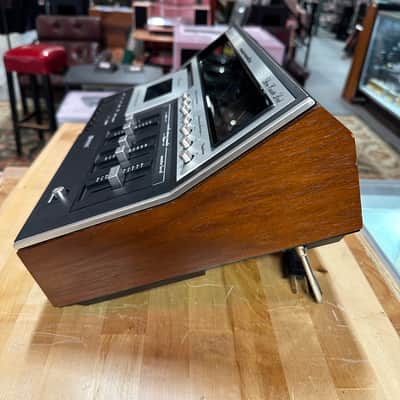

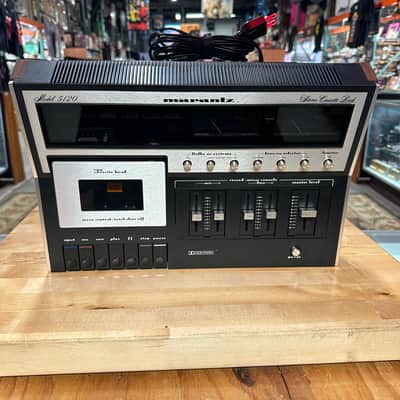

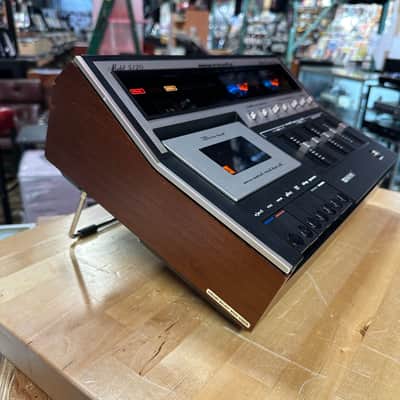

Typical of this deck is the 70's top loading layout with the cassette compartment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

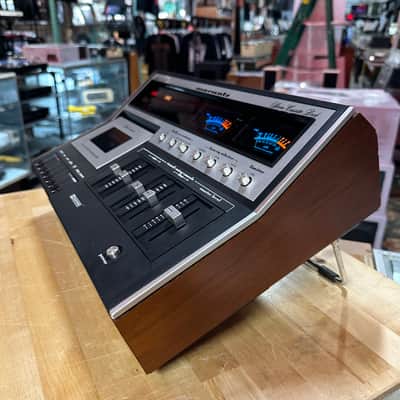

Level meters used on the 5120 are analog needle VU reading meters. Mechanical transport controls for reliable 5120 transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the 5120 by as much as 10 dB at the highest frequencies. The 19kHz multiplex pilot signal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the 5120 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

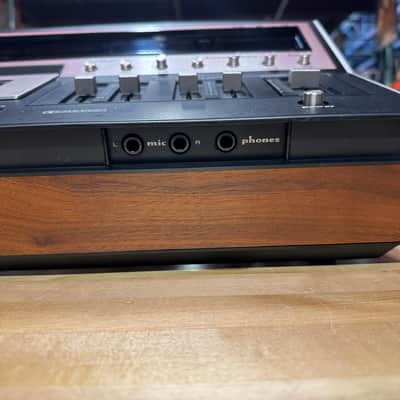

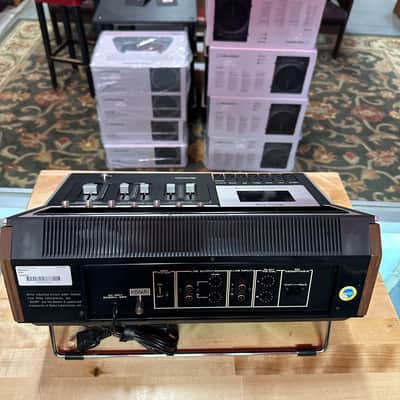

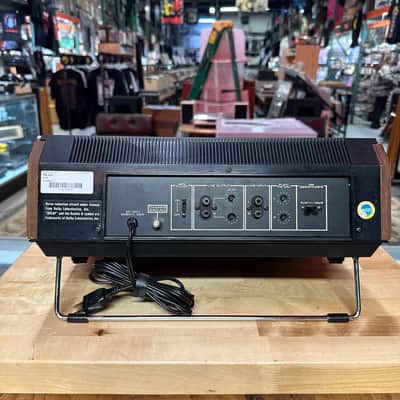

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for playback can be achieved by a RCA cable and recording from a source by a RCA cable.
