With optimized connectivity, MusiQ-fitted equalization, built-in guitar DI, and more, the ZED-10FX delivers the tools you need to ensure you sound your best.

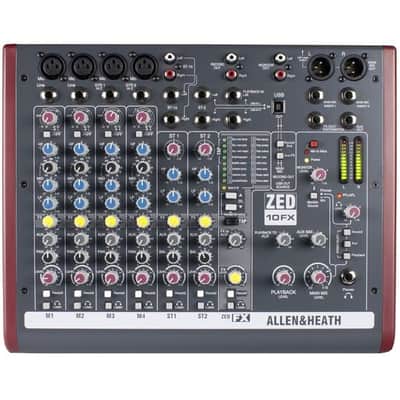

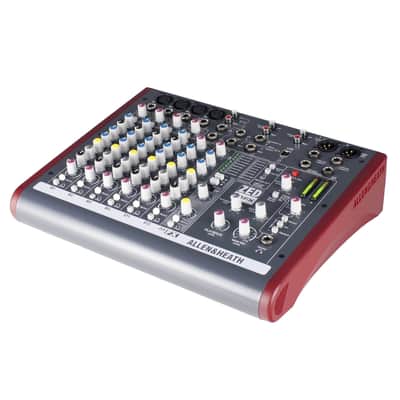

Take your show on the road with the Allen & Heath’s ZED-10FXFX Multipurpose Mixer with FX. This compact, versatile mixer is easy to fit into any audio setup, and its portability makes it the ideal choice for small band mixing, gigging, or recording live or in a home studio.

Leave your mark on your music with the ZED-10FX’s premium collection of 16 time-delay effects. Laid out for intuitive, streamlined navigation and editing, use 3 buttons with 9 display LEDs to craft your sound with time delay, reverb, and more.

The ZED-10FX comes with configurable USB audio inputs and outputs. No need to install external soundcards—just plug in a USB lead and select USB routing on the mixer to get started right away at your recording. This feature gives you CD-quality audio to and from your Mac or PC, while switches and connections via the mixer’s jack socket terminals offer a variety of send/return options.

The ZED-10FX comes with a responsive 3-band, swept mid-frequency EQ design at uses MusiQ. Its optimized slope (Q factor) allows you to precision-equalize individual instruments in your band.

Dispense with the extra DI box and plug your guitar directly into the ZED-10FX using its designated high-impedance inputs (inputs 3 and 4) that are compatible with normal line levels or the low-level inputs from guitar pickups. The resulting sound replicates classic guitar or instrument tube preamps. Use the gain “Boost” switch for instruments with very low-level outputs.

Rounding out the ZED-10FX’s connectivity options are 2 stereo inputs for MP3/CD players or keyboards, as well as professional XLR stereo outputs and a versatile monitoring section that lets you plug in headphones and/or speakers.

Allen & Heath ZED-10FX Features

• 4 mic/line inputs, 2 with Class A FET high impedance inputs
• Neutrik mic XLR
• Neutrik ¼ inch jacks
• 3 band EQ with MusiQ
• 1 pre-fade Aux send
• 1 FX send
• Sound image pan
• Illuminated PFL indicator
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Responsive 3-band, swept mid EQ with MusiQ
• 2 stereo sources with MP3 player compatibility
• Separate 2-track record outputs
• Stereo playback input for 2-track replay
• XLR main stereo outputs with inserts
• Comprehensive monitoring
• Configurable USB stereo audio in/out
• Stereo monitor outs
• 48V microphone phantom power
• DI level switching for sub mixing
