Future Retro TRANSFER Filter analog multi-mode filter and overdrive module (12 hp)

Future Retro's description of the Future Retro Transfer Filter analog filter and overdrive module (12 hp)

TRANSFER TO ANY OF 16 ANALOG FILTERS.

Futureretro’s latest design is the TRANSFER filter, a 12hp Eurorack design that provides 16 different types of VECTRA-inspired ANALOGUE filters giving you complete control over them.

Filter types include four classic lowpass filters and 12 unconventional types that are highly suited for musical creativity. Filter types are divided into 4 sets of four and are selected with the 1-4 buttons (with associated LEDs) on the top left and right of the panel.

TRANSFER features 16 different types of fully controllable filters with CV inputs, a voltage controlled amplifier, and an input overdrive.  Included are 4 types of commonly used lowpass filters, while the additional 12 specially-crafted unique filters were specifically engineered to function perfectly with any modular setup for creating a vast array of tones.

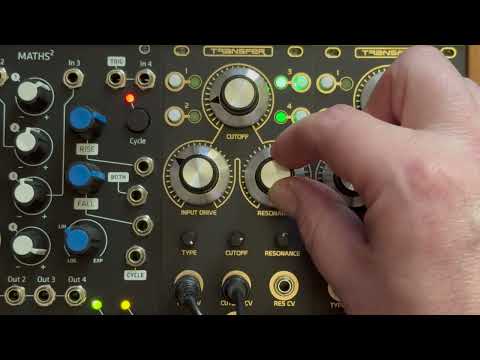

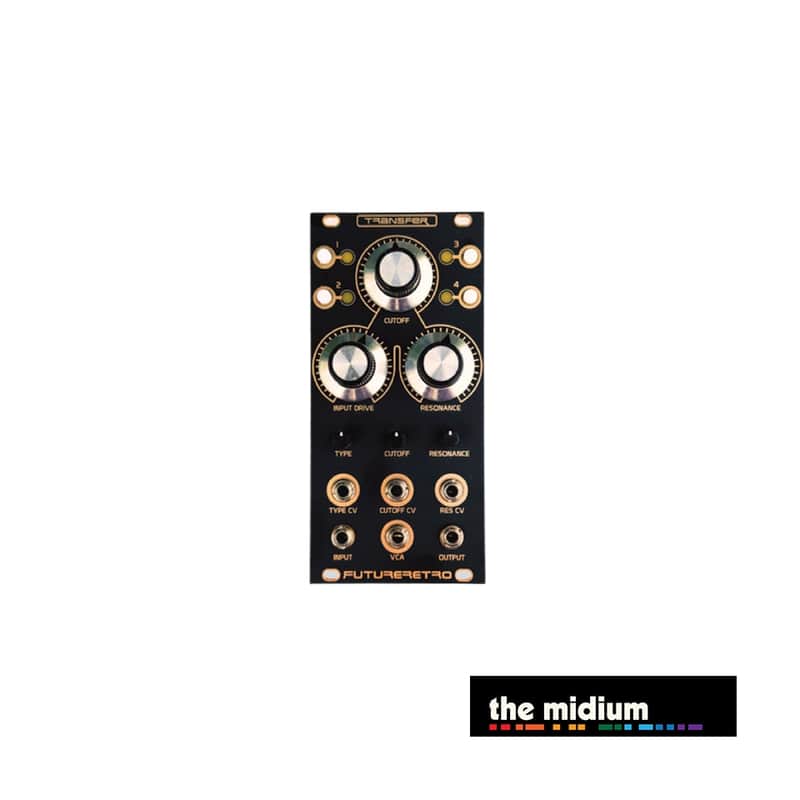

Three larger control pots give immediate and easy access to CUTOFF, INPUT DRIVE, and RESONANCE control with the three smaller attenuators/attenuverters control input from the TYPE CV, CUTOFF CV, and RESONANCE CV input jacks. A VCA (voltage controlled amplifier) jack is conveniently placed at the bottom row along with standard INPUT and OUTPUT jacks.

The Future Retro TRANSFER filter is 12hp with a 36mm depth. It requires an 80mA positive rail and a 60mA negative rail.

SPECS.

• 12 hp Eurorack design
• 16 selectable ANALOGUE filter types
• Full manual control over Input Drive/Overdrive, Cuttoff, and Resonance
• Attenuated/attenuverted CV control over Type, Cutoff, and Resonance sonically engineered as the perfect filter for the TRAX and TRANSIENT units
• Integrates easily into any modular setup
