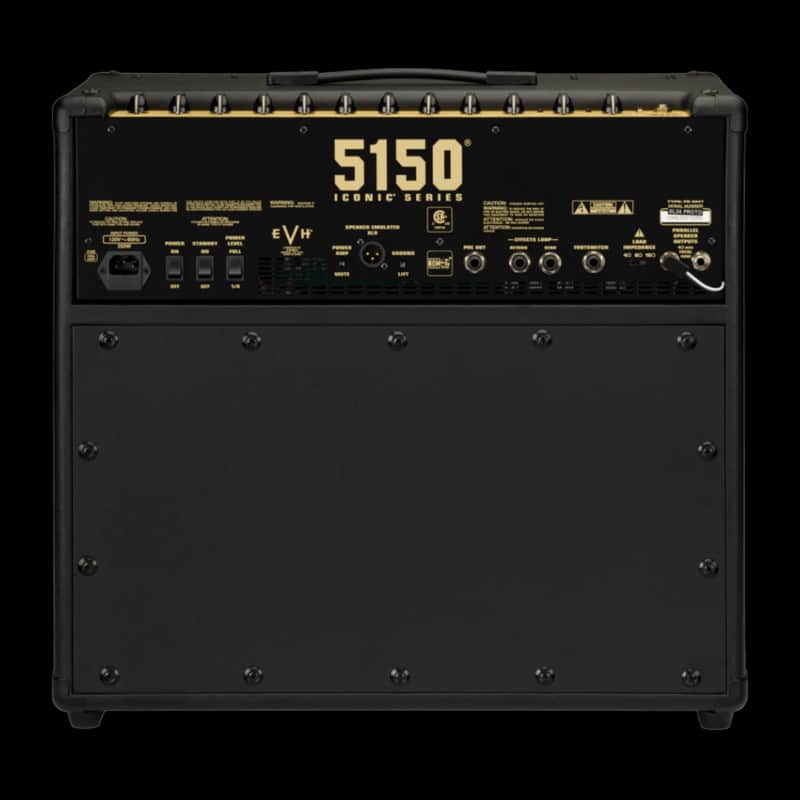

EVH 5150 Iconic Series EL34 40-watt 1x12 Combo Amp - Black/Gold

The EVH 5150 Iconic Series EL34 Combo brings the legendary, high-octane sound of Eddie Van Halen to a format that is accessible for working musicians and serious hobbyists alike. Designed by the celebrated amp engineer James Brown—the mind behind the original 5150—this amplifier evolves from the revered 5150III circuit to deliver a searing, articulate high-gain experience. At Palen Music Center, we are particularly impressed by the robust construction; the cabinet utilizes MDF with special internal plywood baffling. This specific internal design significantly tightens the bass response, ensuring that low-end frequencies remain punchy and defined rather than muddy, even when you dial in those heavy, saturated tones.

At the heart of this beast lies a powerful tube configuration that dramatically shapes its sonic character. The amp is powered by a pair of EL34 power tubes, which offers a distinct flavor compared to the 6L6s often found in American-voiced amps. These EL34s provide a tighter, more aggressive midrange growl and a harmonic complexity that cuts right through a dense mix. Paired with a multi-stage hybrid preamp anchored by two ECC83 (12AX7) tubes, the amp drives a custom-designed 12" EVH Celestion speaker. This combination results in pristine cleans that sparkle and a high-gain distortion that is harmonically rich, responding dynamically to your pick attack.

Versatility is key for the modern player, and the Iconic Series delivers with two channels, each offering unique voicings. The Green channel features an overdrive button to push from clean to grit, while the Red channel includes a "Burn" button for fiery lead tones. Gigging guitarists will appreciate the built-in noise gate on channel two to suppress hiss during staccato riffing, as well as the foot-switchable 10dB volume boost for solos. Whether you are recording using the speaker-emulated XLR DI or practicing at home using the 1/4 power switch to drop the wattage without sacrificing tone, this amp provides the professional tools and the "Brown Sound" vibe you need.

Highlights

• Designed by renowned engineer James Brown to capture the essence of the EVH 5150III circuit.

• Powered by two EL34 tubes for a tight, aggressive midrange and complex harmonic overtones.

• Features a custom-voiced 12" EVH Celestion speaker housed in a cabinet with internal plywood baffling for superior bass response.

• Dual-channel architecture with Overdrive and Burn voicings, plus a built-in noise gate for tight, articulate riffing.

• Includes a 1/4 power switch for low-volume saturation and a speaker-emulated DI XLR output for direct recording.

Specifications

• Type: Tube

• Number of Channels: 2

• Total Power: 40W (10W setting)

• Speaker Size: 1 x 12" Custom designed EVH 12" Celestion

• Preamp Tubes: 2 x ECC83 (12AX7)

• Power Tubes: 2 x EL34

• Reverb: Yes

• Effects: Boost

• EQ: 3-band EQ, Resonance, Presence

• Inputs: 1 x 1/4" (input)

• Outputs: 2 x 1/4" (speaker out), 1 x XLR (Emulated Speaker), 1 x 1/4" (pre out)

• Effects Loop: Yes

• Footswitch I/O: 1 x 1/4" (channel, boost)

• Construction Material: Black Vinyl, Black Grille, MDF with Plywood Baffle

• Power Source: Standard IEC AC cable

• Manufacturer Part Number: 2258300000
