Roland FANTOM-08 Includes:

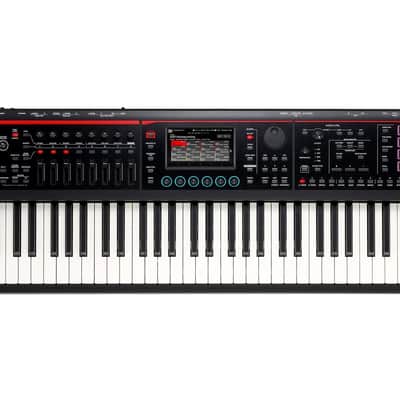

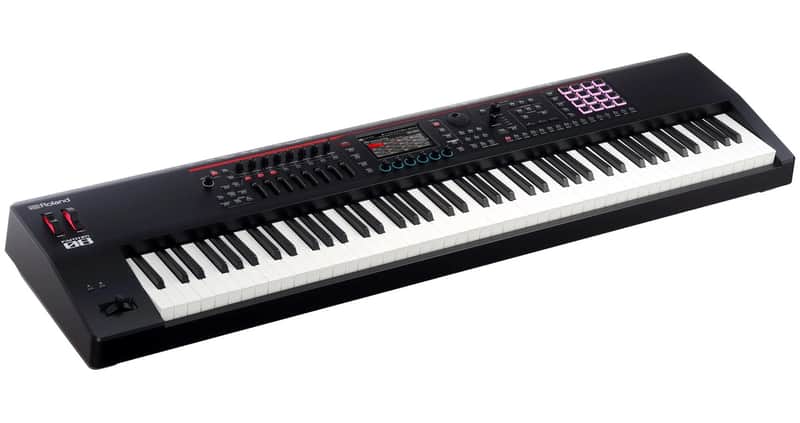

• FANTOM-08 Synthesizer Keyboard
• Owner's Manual
• AC adaptor

Roland FANTOM-08 Features:

• Sounds and features inherited from the flagship FANTOM series
• Seamless workflow with no confusing modes
• Light and durable molded body design for easy transport
• Play and produce with thousands of electronic and acoustic sounds powered by Roland’s advanced ZEN-Core and SuperNATURAL technologies
• New SuperNATURAL pianos with authentic acoustic grand sound and response
• Virtual ToneWheel Organ with harmonic bar control and quick-fire playability
• Deep onboard sampling features
• Scenes contain settings for all 16 layers plus effects and patterns
• Clip-based sequencing with instant pattern recording and triggering
• TR-REC sequencer inspired by classic Roland drum machines
• Color touchscreen, high-resolution knobs, sliders, RGB performance pads, and dedicated synth control section
• Pitch/mod lever and illuminated pitch and mod wheels
• Massive DSP power for plenty of polyphony and smooth sound transitions
• 4x32 USB audio interface and native integration with Logic Pro, MainStage, and Ableton Live
• Mic input and powerful onboard vocoder
• Support for Model Expansions, Sound Packs, Sample Packs, and more from Roland Cloud
• Comes with 15 Wave Expansions and 10 Sound Packs, available for download from Roland Cloud
• Compatible with FANTOM Scenes that use ZEN-Core, SuperNATURAL, and Virtual ToneWheel Organ sounds
• Custom 88-note keyboard with weighted action

Roland FANTOM-08 Specifications:

• Keyboard
• • Keyboard: 88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)
• Sound Generator
• • TONE:
  • • ZEN-Core
    • SuperNATURAL Acoustic
    • SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
    • SuperNATURAL Electric Piano (EXSN02 Preload)
    • VTW Organ (Only ZONE2)
    • Various MODEL sound generators (Require adding EXM Series)
  • Expansion:
  • • EXZ Series
    • EXSN Series
    • EXM Series
  • Parts: 16 zones (Internal + External)
  • Scenes: 128 scenes x 4 bank
  • Tones:
  • • 3,500 tones or greater
    • 90 Drum kits or greater
  • Tone Remain: 8 zones
  • Tone Search/Scene Search: Rating, Character
  • Effects:
  • • Multi-Effects: 16 systems, 90 types
    • Part EQ: 16 systems
    • Drum Part COMP: 6 systems
    • Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
    • TFX: 1 system, 90 types
    • Input MFX: 1 system, 90 types
    • Chorus: 9 types
    • Reverb: 7 types
    • Master Compressor
    • Input Reverb: 7 types
    • Input EQ: 1 system
  • Vocoder:
  • • Band: 13, 20, 32
    • Type: Mono, Stereo
    • Preset Setting: 10
    • User Setting: 20
  • Scene Chain:
  • • Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
    • Set: 100
    • Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
  • Favorite: Rating System: 4 steps (0-3)
• Pattern Sequencer
• • MIDI Tracks: 16
  • Group: 16
  • Pattern: 8 (per each track)
  • Pattern Length: 64 measures
  • Recording Method: Realtime recording, Step recording, TR-REC
  • Editing Method: Piano roll edit (Touch Edit/Automation support), Microscope
  • Song: 1 (per Scene)
  • File format: Original, SMF export/import supported
• SMF Player
• • Format: SMF (Format 0/1)
  • MIDI tracks: 16
  • Tempo range: 5-300 BPM
  • Transpose function: -5-+6 semitone
  • Track Mute: Yes
  • Track Solo: Yes
  • A/B loop function: Yes
• Sampler - Keyboard Multisample
• • Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
  • Number of Samples: 2,048
  • Number of Multisamples: 128
  • Sampling Time: The maximum is 2 minutes 44 second (1 Sample) A total of approximately 256 MB (Share with Expansion titles)
• Sampler - Pad Sampler
• • Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
  • Maximum Polyphony: 8
  • Number of Samples: 16 pads x 4 banks
  • Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB) A total of approximately 2 GB (including imported WAV files)
• Sampler - Internal Storage Space for Files
• • Size: 2 GB
• Others
• • Rhythm Pattern: Yes
  • Arpeggiator: Yes
  • Chord Memory: Yes
  • Motional Pad: Yes
  • PAD Mode: Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
  • AIRA LINK: When connect to MX-1 (sold separately)
  • Controllers:
  • • Pitch Bend/Modulation lever
    • Assignable Switch x 2 (S1/S2)
    • Control knob x 8
    • Slider x 8
    • Wheel x 2
    • Function knob x 6
    • Sound Modified knob x 2
    • 4 x 4 Pad
  • Display: Graphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)
  • Connectors:
  • • Headphones jack: Stereo 1/4-inch phone type
    • MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
    • SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
    • SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
    • Mic Input jacks: 1/4 inch TRS type
    • Line Input jacks: (L/MONO,R) (1/4 inch phone type)
    • FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
    • MIDI connectors (IN, OUT)
    • USB MEMORY port
    • USB COMPUTER port (AUDIO/MIDI)
    • External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
  • Audio Interface:
  • • Max 24 bit/96 KHz
    • Record 16 Stereo Channel
    • Playback 2 Stereo Channel
  • External Memory: USB Flash drive (sold separately)
  • Power Supply: AC Adaptor
  • Power Consumption: 1,300 mAh
• Physical
• • Dimensions (WxDxH): 54-7/8" x 13-15/16" x 5-7/16" (1,393 x 354 x 138 mm)
  • Weight: 32 lbs 11 oz (14.8 kg)

Roland FANTOM-08 Notes:

• ZEN-Core Tones and Model Tones can import and export.
• Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
• The expansion are rewritable internal sound generator memory. You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.
• The Scenes can import and export.
• When "Scene Remain Switch" enabled. Tone Remain does not apply to VTW Organ sounds.
• PAD Sampler trigger data can be recorded.
• The pattern sequencer and SMF player can be used in each scene. They cannot be used at the same time.
• Keyboard Multisample can import and export as ZEN-Core Tone.
• When you use the PAD samples as KBD Wave, then you have to manipulation it.
