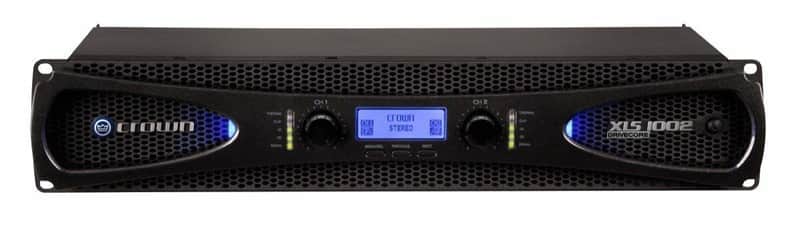

Meet the new XLS DriveCore™ 2 Series (MINT)

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue

Features

• Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb (5 kg)

• Higher DSP capabilities: More control; has band pass filter per channel
• Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
• Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
• Set sleep mode after specified time without having to press a button
• Security setting disables menu buttons; menu locked/unlocked by entering combination
• System reset allows factory settings to be restored
• Remote power trigger
• Peakx™ Limiters provide maximum output while protecting your speakers
• XLR, 1/4", RCA inputs provide flexibility
• Integrated PureBand™ Crossover System for better performance and control
• Efficient forced-air fans prevent excessive thermal buildup

Specifications Number of Channels

• 2

Amplifier Power Rating

 2 Ohms:

• 550 W per Channel

 4 Ohms:

• 350 W per Channel
• 1100 W Bridged

 8 Ohms:

• 215 W per Channel
• 700 W Bridged

Performance Frequency Response

• 20 Hz to 20 kHz +0/-1 dB (at 1 W)

Damping Factor

• > 200

Input Sensitivity

• 1.4 Vrms

SNR

• > 97 dB

THD

• < 0.5%

Intermodulation Distortion

• < 0.3%

Crosstalk

• > 85 dB (1 kHz)
• > 55 dB (20 kHz)

Connectivity Analog Audio I/O

• 2x XLR Input
• 1x 2RCA Input
• 2x 1/4" Thru
• 2x Binding Post Pair Output
• 2x speakON NL4 Output

Physical Dimensions

• 19.0 x 3.5 x 7.7" / 48.3 x 8.9 x 19.6 cm

Weight

• 8.6 lb / 3.9 kg

Packaging Info Package Weight

• 10.85 lb

Box Dimensions (LxWxH)

• 21.8 x 12.4 x 6"
