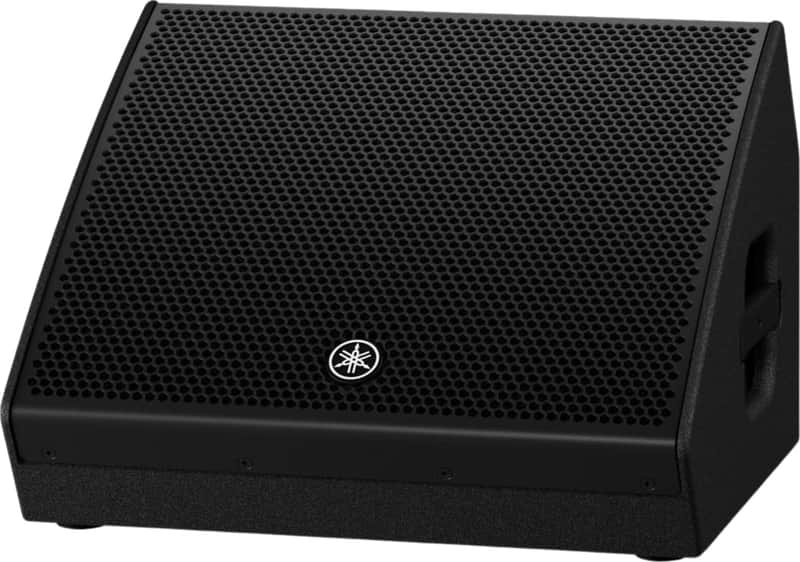

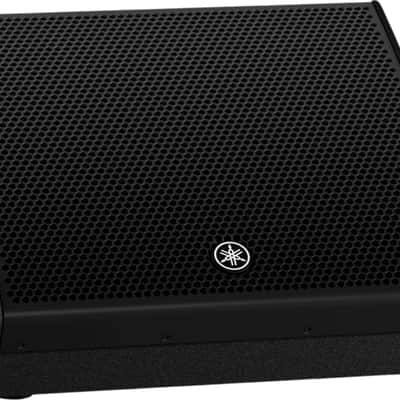

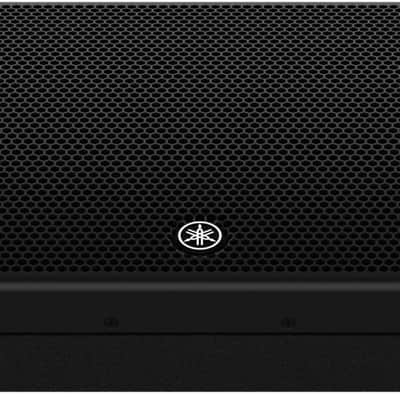

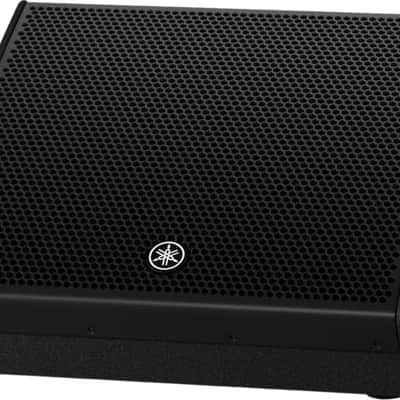

The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on our high-end DZR Series, the DHR12M offers best-in-class sound quality and durability. The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with DHR10 and DHR12 for fixed installation and utilities, DHR12M and DHR15M designed for use as floor monitors, and DHR15 for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, this series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

Product Features

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Attributes

• Total Power: 500W and Up

Technical Specifications

• Type: Monitor/Loudspeaker
• Features: Powered
• # of Channels: 2
• Wattage: 1000W
• Dimensions: 13.5" H x 19.75" W x 18" D
• Weight: 36.3 lbs
• Inputs: 2 x XLR-1/4" combo
• Outputs: 1 x XLR
• Power Source: Standard IEC AC cable
• Maximum Peak SPL: 129 dB SPL @ 1m
• Frequency Response: 55Hz-20kHz (-10 dB)
• Driver Size: 40-49mm
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Powered/Passive: Powered
