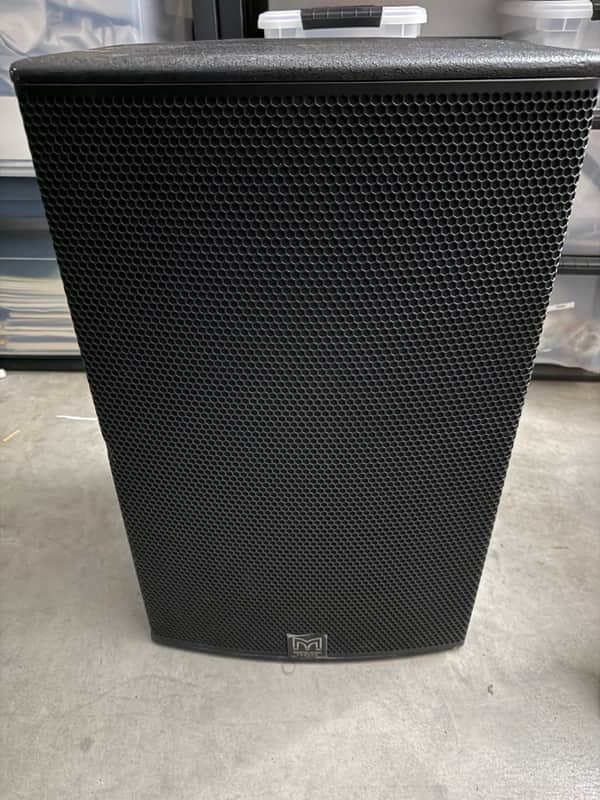

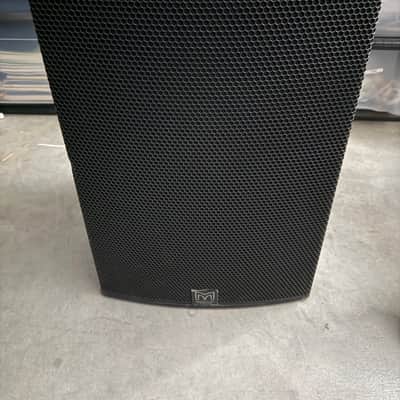

ONE: Good condition Martin Audio Blackline XP15, 15" Powered Two-way Portable Loudspeaker.


Martin Audio XP15 Specifications:

  • Loudspeaker Type: High output, self-powered 2-way system
  • Drivers:
    • LF: 15” with 3” voice coil, ferrite magnet
    • HF: 1” with 1.7” voice coil, polyimide dome compression driver
  • Max. SPL: 125dB continuous, 131dB peak
  • Crossover: 2kHz active, 24dB/octave
  • Dispersion: 80° horizontal x 50° vertical (user-rotatable)
  • Amplifier Module:
    • Type: 2-channel switch mode, Class D
    • Peak Output Power: 1300W total, 100W LF, 300W HF
    • Average Efficiency: 89%
    • Cooling: Convection
    • Max. Ambient Temperature: 35°C (95°F) for full output
    • Input Connectors: 2x female XLR / 1/4" combo jacks
    • Mic/Line Input Impedance: 8k Ω balanced
    • 1/4" Jack TS Input Impedance: 1M Ω unbalanced
    • Mix Output Connector: 1x XLR male
    • Mix Output Impedance: 600 Ω balanced
  • Internal Processing/DSP:
    • Input Channel EQ: 3-band on each channel plus HPF on channels 1 & 2
    • Speaker EQ: 3 speaker mode/voicing presets
    • Protection: LF and HF peak and RMS limiting, amplifier thermal protection
  • Power Supply:
    • Type: Switch-mode, fixed frequency with PFC
    • Operating Voltage Range: 100-240VAC, 50/60Hz
    • Power Factor: >0.98
    • Nominal Power Consumption: 550W max.
    • Mains Connector: 3-pin IEC
  • Enclosure: Multi-angle birch/poplar ply
  • Finish: Black textured paint
  • Grille: Black perforated steel with scrim cloth backing
  • Fittings: 13x M8 inserts, pole-mount socket, 2x pocket handles
  • Dimensions: 16.8” wide x 27.2” high x 16.0” deep (427 x 690 x 407 mm)
  • Weight: 57 lbs. (26 kg)
