This EQ has been used only in my smoke-free studio. Selling because I'm mixing mostly "in the box" these days and sadly no longer use it. Hopefully somebody else can put it do good use!

PLEASE NOTE I reserve the right to decline offers from buyers who lack a reasonable history of positive feedback.

PRODUCT DESCRIPTION

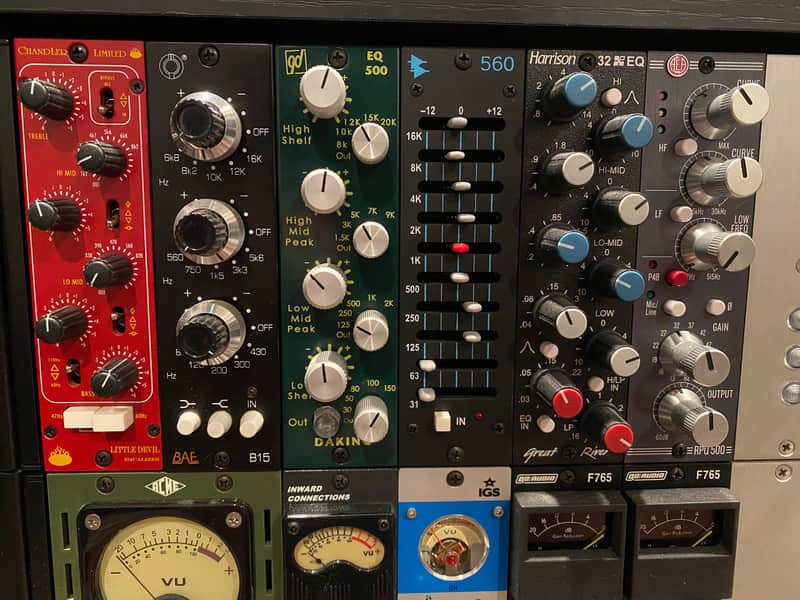

The BAE B15 is a three-band gyrator circuit 500 series EQ that combines Jensen transformer-balanced inputs and outputs with legendary Avedis 1122 op-amps for a one-of-a-kind sound. The BAE B15 offers the best of both worlds: the fast, punchy tone of the API 312 preamp and the unmistakable color and richness of the iconic Neve 1073.

HIGH-QUALITY COMPONENTS

With hand-wired, all-discrete Class A circuitry, the BAE B15 EQ delivers low noise and high headroom—almost like a hi-fi version of your favorite vintage designs. Hearty Jensen transformers at the input and output stages add warmth to any recording, while Avedis 1122 op-amps ensure minimal distortion.

Ideal for tracking, mixing and mastering, the B15 is capable of everything from subtle sonic shaping to total tonal transformation. The B15 is highly versatile and designed for use with live or sampled drums, guitars, vocals, acoustic instruments—even your mix bus.

SIMPLE CONTROLS

The BAE B15 utilizes silky-smooth Elma rotary switches and three custom machined aluminum knobs. Each band features dual-concentric controls with five selectable frequencies and up to +16 dB of boost and cut.

Dial in silky smooth highs using the top band, with selectable frequencies at 6.8 kHz, 8.2 kHz, 10 kHz, 12 kHz and 16 kHz. Capture a creamy midrange using the center band, with selectable frequencies at 560 Hz, 750 Hz, 1.5k Hz, 3.3 kHz and 5.5 kHz. Beef up the bottom-end on any track with the low band, which offers selectable frequencies at 63 Hz, 120 Hz, 200 Hz, 300 Hz and 430 Hz.

All three bands default to peaking filters, although simple push-button controls at the bottom of the module enable high and low shelving options.

HAND-MADE DESIGNS

All BAE products are hand-made in California using premium-grade analog components. Inspired by classic vintage designs, BAE products combine authentic sound quality with modern features to create versatile, flexible and affordable signal processors for modern audio engineers.

FEATURES:

• Standard 500 series modular size 1.5" x 5.25"
• 3-bands with 5 selectable frequencies per band
• +16 dB of boost and cut using continuous variable potentiometer
• Push button shelving option for low and high frequencies
• All discrete design
• High headroom
• Low noise
• Jensen Transformer balanced input & output
• Custom machined aluminium knobs
• Elma Gold plated rotary switches and 15-way connector for longer life
• Utilizes Avedis 1122 Opamps
