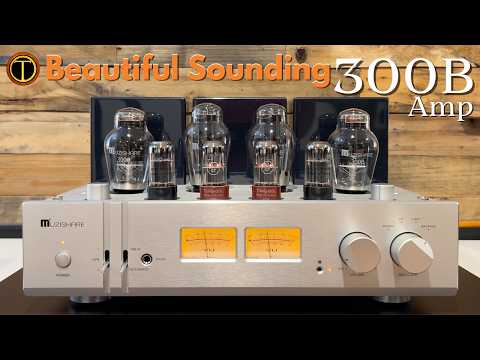

MUZISHARE X9 Stereo Tube Amplifier with Remote Control,Single-Ended Class A, 300B Tubes, Built-in MM Phono Stage, Power AMP, 6.5mm Headphone Output,ac115 and AC230 Switchable

• The Musishare X9 300B is a highest quality, premium product. Tube/valve amplifiers such as this, are very highly regarded when paired with audiophile quality speakers, resulting in accurate, musical and natural sound.

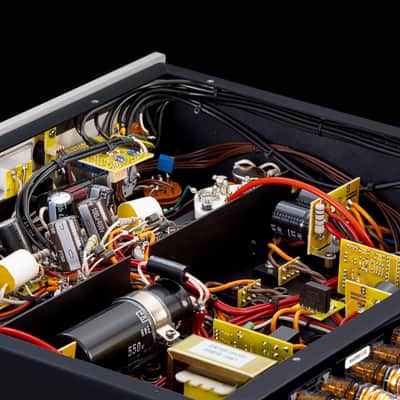

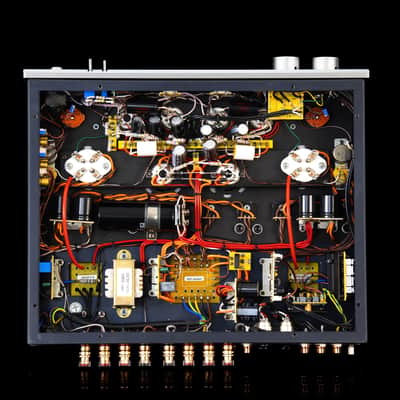

• Highest standards of quality control and manufacturing are apparent throughout the 300B, from the hand-soldered circuits, the use of specially selected Japanese sourced E-type output transformers, Z11 core Toroidal power transformers, Japanese potentiometers, German hi-grade capacitors, and other critical components.
• Input and Output Options include : Phono Stage RIAA input, CD , LINE IN , PRE IN and Balanced IN, the comprehensive selection of Input Options make X9 a flexible and versatile product for demanding users.  The 1/4”- 6.5mm headphone output is capable of effectively driving most headphones with moderate impedance ratings.
• N.F.B Options: NFB 1 & 2 options are similar to the Triode and Ultralinear modes of X5 and X7. NFB 1 offering a selection of output modes that allow fine tuning of the amplifier to speaker subjective relationship.

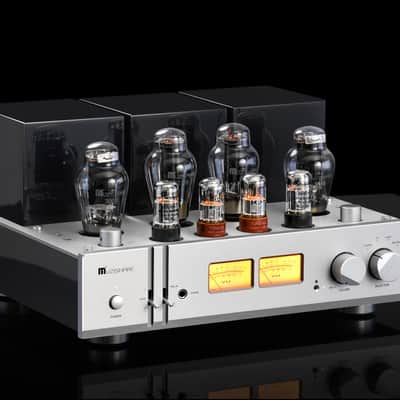

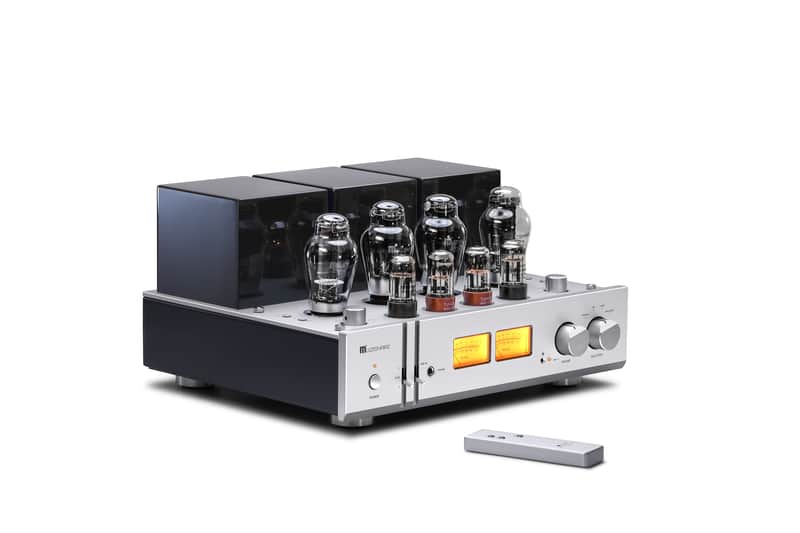

• The elegant appearance of the Musishare 300B amplifier presents a classic and authoritative appearance that matches its sonic performance.  The elegant brushed, anodized front panel houses the controls and VU meters. The lacquered transformer covers, main chassis construction and finish further show the quality of this amplifier.

The 300B is a classic Tube/Valve amplifier of excellent quality and performance especially when paired with high quality bookshelf - compact speaker systems.

Tube/valve amplifier ratings are significantly different to solid state amplifiers.   Output can be better compared using Volt-Ampere ratings than Watts.   Watts are a rating of output power dissipated into a resistive load.  Loudspeakers are not such a load, they are a more or less a ‘reactive’ load so present amplifiers with dynamic changing demands in music reproduction.   A good guide to comparing power between solid state and tube/valve output power is three or four to one.  So a 10 Watt tube amp can be considered comparable to 35-40 Watt solid state or class D amplifier.

Technical Paramters
Rated output power: 8W + 8W (RMS)
Harmonic distortion: 1% (1kHz)
Frequency response: 10Hz ~ 50KHz (- 1.5dB)
Input Sensitivity : 150mV (0dB); 260mV (-3dB) ; 420mV (pre-in)
Input impedance: 100k Ω
Output impedance: 4 Ω, 8 Ω, 16 Ω must be set appropriately to the speaker used
Signal to noise ratio: 92dB
Power consumption: 155W
Left and right output balance: <1dB
Use vacuum tube: 65n7 × 2, 65l7 × 2, 300B × 2, 274bx2
Overall volume (WxDxH): 430mmx393mmx236mm
Power supply voltage: ~ 110V 230 V ± 5% (50 Hz)
Working conditions: temperature: 0 ~ 40 ° C, humidity: 20% ~ 80%
Weight: 35kg
Storage conditions: temperature: - 20 ° C ~ 70 ° humidity: 20% ~ 90%

Tubes can be replaced with
6SL7: 6N9P, 6H9C, ECC35, 6SC7, 6CY7
6SN7: 6N8P, 6H8C, 6H8M, 6H8J, CV181,QB65, ECC32
300B: WB300B, 4300A
274B: 5Z3P, 5BX1, 5U4C, GZ30, 5Z4G/GT
