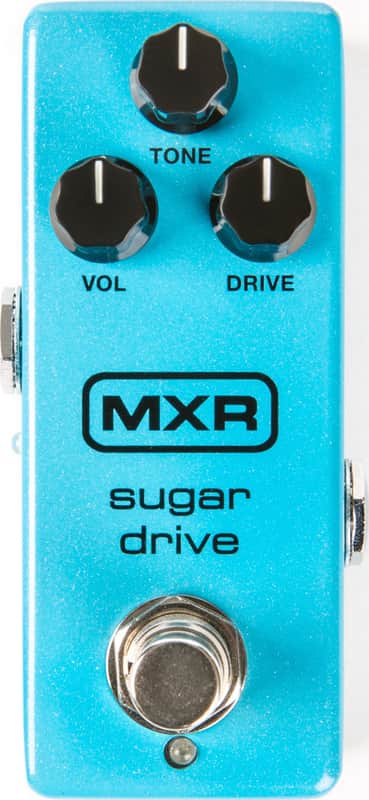

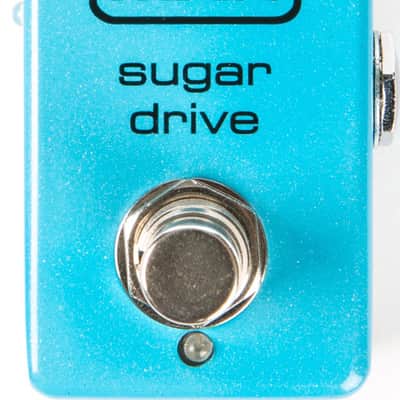

The MXR Sugar Drive Pedal provides a diverse range of clear and transparent overdrive tones, from sauced up boosting to blown-tube distortion. It's based on a rare overdrive pedal that has acquired a mythical reputation among fanatical tone-seekers thanks to its unique circuit design. The key elements of that circuit design are the Drive control and something called a voltage doubler. First, the Drive control on this pedal doesn't just increase the intensity of the overdrive pedal. It starts with your clean signal and then blends it with the overdrive effect as you turn it up, replicating the smooth transition of an amplifier going from clean to dirty. The voltage doubler increases overall headroom, which opens everything up nicely. Of course, MXR had to put their own touch on this circuit. If you're all about true bypass, then you're in luck—this pedal uses it by default. The original used buffered bypass, though, and we know there's a lot of players out there who don't want to fix something that isn't broken. They're in luck, too—just flick the Buffer switch on the side of the pedal to enable buffered bypassing. With a simple three-knob setup and an MXR mini housing, this is the go-to overdrive to have on your pedalboard. It's versatile and it saves space, and unlike the original pedals it's based on, it won't cost you thousands of dollars.

Product Features

• Based on a rare and famous pedal known for focused lows/mids, smooth highs, and high headroom
• High headroom for dynamic response and wide-open sound

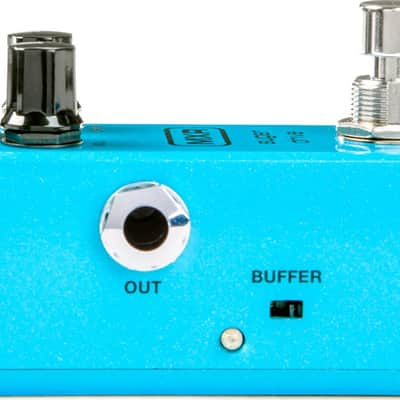

• Toggle switch for buffered/true bypass operation
• Blends dry signal with overdrive signal for amp-like breakup and response
• Powered via 9-volt power supply (sold separately)

Attributes

• Color: Blue

Technical Specifications

• Dimensions: 1.2" H x 1.5" W x 3.63" D
• EQ: Tone Control
• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4"
• Power Source: 9V DC power supply required (sold separately)
• Effects: Overdrive, Boost
• Processing Type: Analog
• Power Usage: 18.5mA
