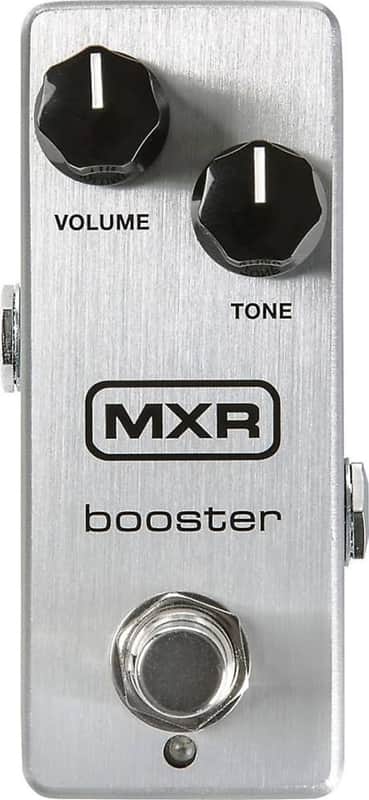

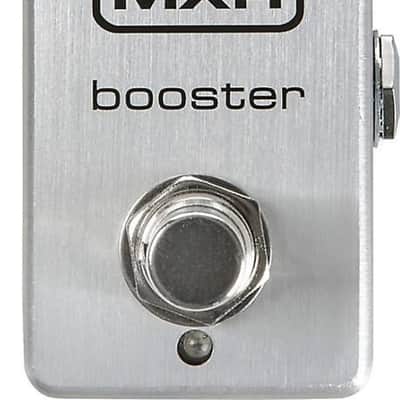

The MXR Booster Mini gives you the sonic secret sauce of the Echoplex Preamp with the legendary boosting power of the MXR Micro Amp in a lightweight, space-saving mini housing. The Volume control has up to +25dB on tap while the Tone control rolls off highs. To add a little extra grit to your signal, adjust the internal Echoplex Preamp level control. Put the MXR Booster Mini on your board to save space, season up your tone, and fly high above the mix.

Product Features

• Combines the Echoplex's front end with the Micro Amp's boost power
• +26dB boost (variable) is perfect for breaking up amps and spotlighting solos
• Tone control dials back or enhances your treble side
• Great for tone stacking — run into your favorite fuzz or overdrive
• Compact size fits any pedalboard
• Internal trim pot to adjust the gain
• Brushed metal enclosure offers a professional look

Attributes

• Color: Silver

Technical Specifications

• Dimensions: 2.16" H x 1.57" W x 3.54" D
• Weight: .28 lbs
• EQ: Tone Control
• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4"
• Power Source: 9V DC power supply (sold separately)
• Effects: Boost
• Processing Type: Analog
• Power Usage: 12.5 mA
