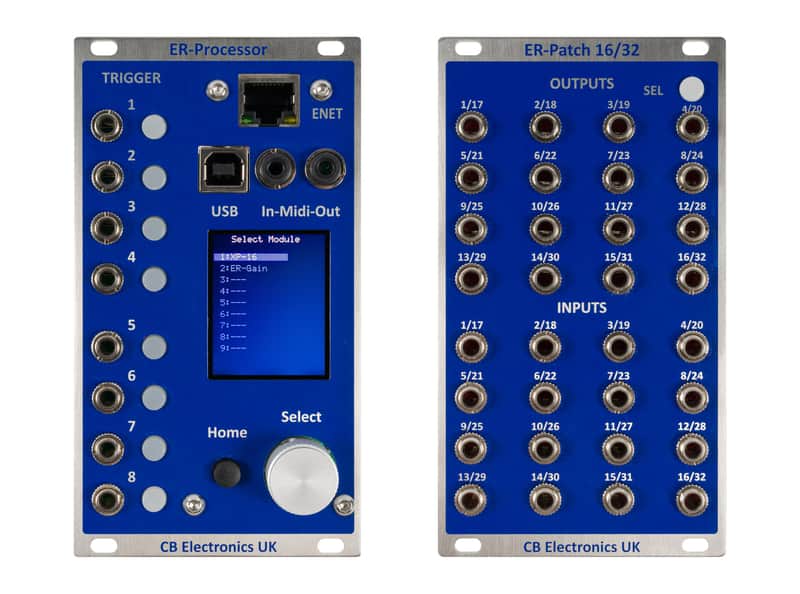

CB Electronics ER Processor + ER Patch Introductory Bundle

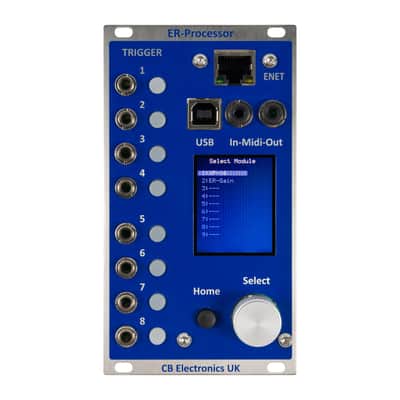

The processor module provides computer interface via USB Midi and Ethernet, Midi Snapshot automation, Serial (5pin DIN) Midi interface to Midi foot Switch or Keyboards. A Trigger Section with 8 3.5mm Jacks and Switches which may be used as control or Record and Playback Trigger or Gate signals via Midi. The processor includes a 128 snapshot store which holds the parameters for up to 16 modules. All functions may be controlled using the colour tft display and encoder or from the XPatch5 Win/Mac

The Patch module provides a 16x16 crosspoint matrix. DC Coupled so that Audio, Control Voltage, or even Trigger or Gate signals may be routed. Two ER-Patch Modules with Expansion boards can be combined to make a single 32x32 crosspoint Matrix.
