Brand New – Closed Box , All Black

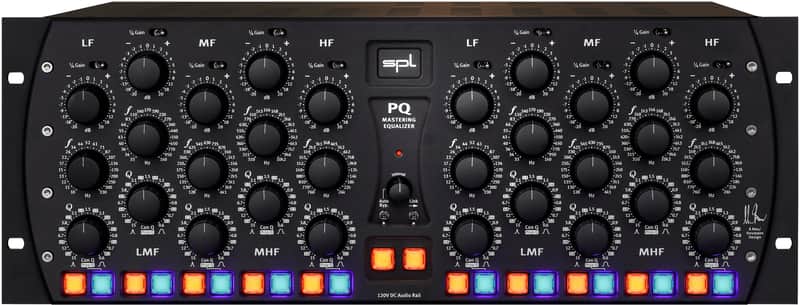

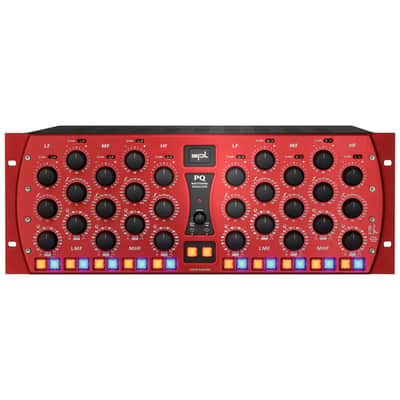

SPL PQ Mastering Equalizer Features
- Fully parametric, dual-channel five-band equalizer.
- 120V Rail Technology
- Each channel can completely be activated or deactivated, thanks to Auto-Bypass
- 1/4 Gain-Switch
- Bypass of each band and constant Q of the left side can be controlled by the right side in Link mode
- Detented potentiometers, a precise recall is very easy to realize
SPL PQ Mastering Equalizer Specifications
- Frequency Range: 10Hz - 40kHz
- CMRR: (1 kHz, +34 dBu, Band 1-5 ON, B/C = 0 : > -82dB
- Transmission Bandwidth: (3 dB, Band 1-5 ON, B/C = 0): 10 Hz-100 kHz
- THD & N (@ 24dBu, Constant-Q) > 107dB
- THD & N (@ 24dBu, Proportional-Q) > 106dB
- Noise (unweighted, at 24 dBu, Band 1-5 ON, B/C = 0) - 91dBu
- Noise (A-weighted, at 24 dBu, Band 1-5 ON, B/C = 0) - 94dBu
- Noise (CCIR, at 24 dBu, Band 1-5 ON, B/C = 0) - 86dBu
- Harmonic Distortion:
- 0,2% @ 1kHz/-30dBu
- 0,05% @ 1kHz/-20 dBu
- 0,01% @ 1kHz/0 dB
- 0,002% @ 1kHz/+10 dBu
- 0,0005% @ 1kHz/+30 dBu
- Input Inpedance: 20kOhm
- Max. Input Level: + 32,5dBu
- Output Inpedance: < 600Ohm
- Max. Output Level: + 32,5dBu
- Power Consumption: max. 61W
- Fuses:
- 230 V/50 Hz: 3,15 Amp
- 115 V/60 Hz: 6,3 Amp
- Dimensions: 482 x 177 x 311,5 mm / approx. 19 x 7 x 12,25
- Weight: 15,2 kg / 33,5 lb
SPL PQ Mastering Equalizer Includes
- PQ Mastering EQ
- Power Cable
- Manual
- Two Year Warranty
