Samson Graphic EQ E62i Rack Unit Early 2000's

This rack unit is in very good condition other than some cosmetic wear and tear from install and uninstalling. Functions as it should. Power supply was misplaced a while back and is not included.

This high performance device provides pinpoint equalization over either one or two channels of audio with a wide frequency response of 10 Hz to 80 kHz for matchless sound quality. The E62i has now been upgraded with new features such as Constant-Q circuitry, which reduces interaction between controls when boosting and cutting signals and maintains a constant bandwidth, a High-pass filter, Cut-only switch and a Range switch for more precise control throughout. Like its popular predecessor, the E62i features high-quality components throughout, the E62i is a useful component in virtually any type of commercial installation, sound reinforcement and recording situation.

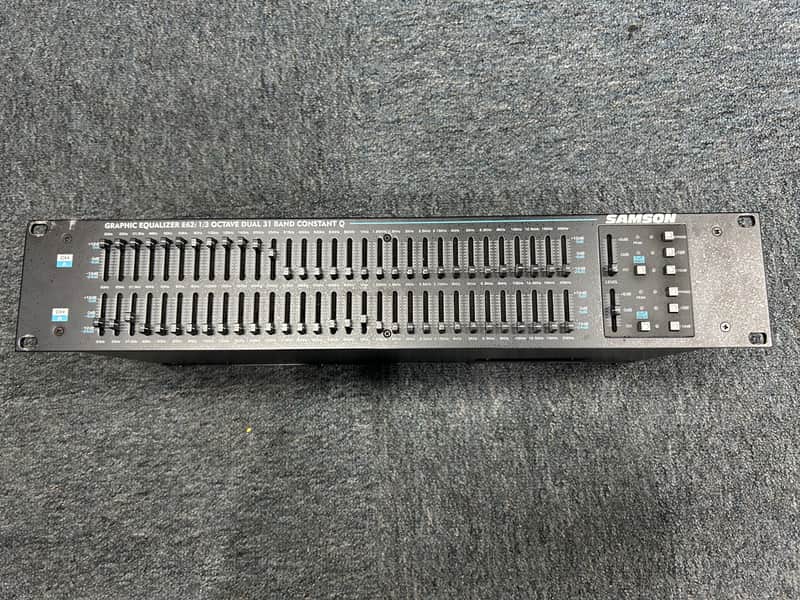

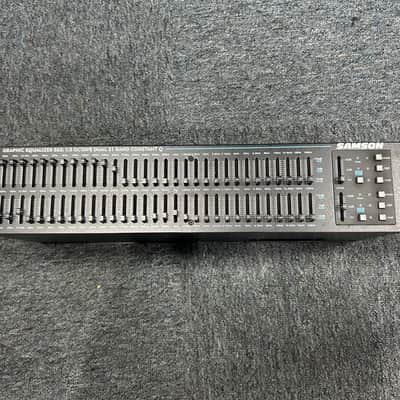

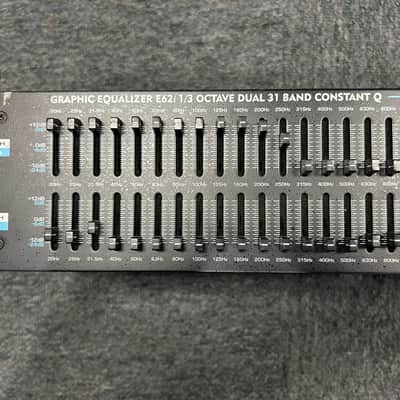

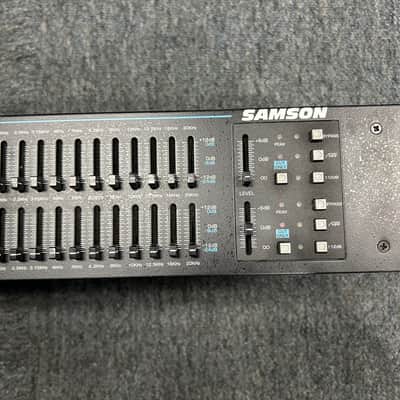

• 1/3 octave stereo 31-band graphic EQ in two rack spaces offers unparalleled sonic control
• Constant-Q circuitry
• Hi-pass filter (18 dB per octave, corner frequency 80 Hz)
• Cut-only switch (0dB to -12dB or 0dB to -24 dB with range switch enabled)
• Range switch (+6dB to -6dB or +12dB to -12dB) *+/-15 dB of gain per band with center detent for greater accuracy in equalizing signal
• Parallel filter design for minimal phase distortion
• Low noise circuitry using high-quality Op amps to reduce noise

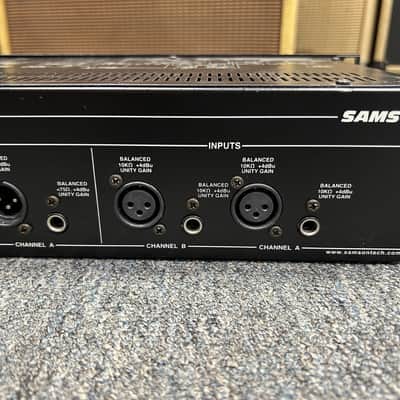

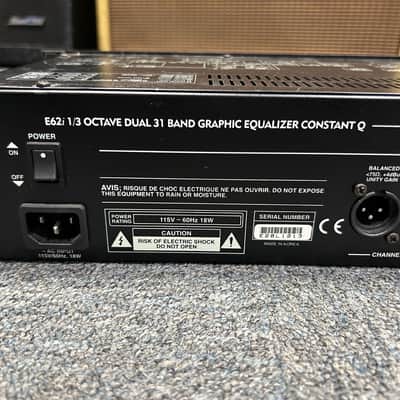

• Balanced XLR and 1/4" inputs and outputs
• Individual level controls for both channels
• Peak indicator LEDs for each channel light 6 dB before clipping
• Stereo or Dual Mono operation for more options
• Hardwired bypass switches with 2-color LED indicators
• Relay-controlled power-up circuitry prevents speaker "thumps"
• Internal power supply enhances audio quality and eliminates need for AC adapter
• Optional security cover protects settings in installation use
