Antelope Galaxy 32 Synergy Core is а multi-channel audio interface and high-end AD/DA converter for professional recording studios and high-profile production facilities. The interface builds upon Antelope Audio’s award-winning Orion 32 line - bringing 32 channels of analog I/O, industry-standard HDX, Thunderbolt and Dante digital connectivity, and Synergy Core processing to a 1U rack-mountable chassis. Along with the comprehensive I/O, the Galaxy 32 Synergy Core features high-resolution conversion and 64-bit AFC clocking so your recording system can sound better than ever.

• Comprehensive surround and immersive monitoring control and speaker calibration, up to 16 channels. Dolby Atmos-ready up to 9.1.6
• High-fidelity conversion for detailed sound when recording and streaming audio, and 64-bit AFC™ clocking technology delivering spacious stereo image with distinct separation;
• 32 I/O channels over 8 DC-coupled D-Sub 25 connectors, 64 I/O channels of optical MADI, and 8 I/O channels of ADAT;
• 64 I/O channels in any popular DAW over Thunderbolt 3 port, 64 I/O channels in Pro Tools over two HDX ports, and up to 64 I/O channels over Dante with primary port and a mirrored secondary port for redundancy;
• Simultaneous use of all digital ports for easy integration with multiple systems and different setups;
• 37 Synergy Core analog-modeled effects included and over 30 available as optional expansions. Processed in real-time with imperceptible latency;

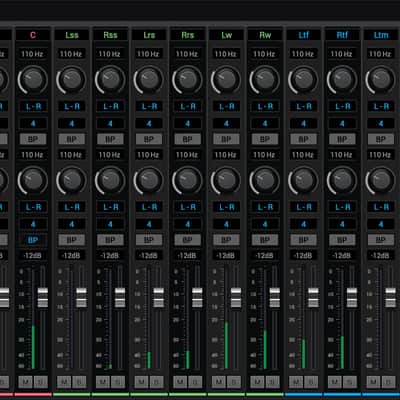

• Virtual patch-bay allows execution of complicated input/output signal routing with a simple drag and drop.

A New Level of Immersion

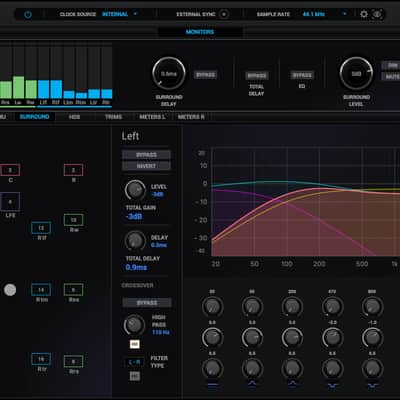

With comprehensive surround and immersive monitoring control and speaker calibration functionality for up to 16 channels or 9.1.6 Dolby Atmos, the Galaxy 32 Synergy Core is the perfect interface for any surround or immersive audio setup.

With 23 preset formats and more configurable via the onboard routing, the Galaxy can effortlessly slot into any workflow. From studio use such as music mixing, film, TV, game or VR audio production, to multi-channel speaker array sound systems for venue PA use, theater, performance spaces, art installations and others, the Galaxy is ready for the future of audio regardless of your setup.

Analog:
32 Inputs / 32 Outputs
Dante:
64 Inputs / 64 Outputs at 44.1/48 kHz
DigiLink:
64 Inputs / 64 Outputs at 192 kHz
Thunderbolt:
64 Inputs / 64 Outputs

Maximum Sampling Rate

192 kHz / 24-Bit

Analog Audio I/O

4x DB-25 25-Pin Balanced Line Input (AES 59/Tascam Pinout)
4x DB-25 25-Pin Balanced Line Output (AES 59/Tascam Pinout)
2x 1/4" TRS Balanced Monitor Output

Digital Audio I/O

1x SC-Plug Optical MADI Input (Dual-Wire, S/MUX Support)
1x SC-Plug Optical MADI Output (Dual-Wire, S/MUX Support)
1x TOSLINK Optical ADAT Input (S/MUX Support)
1x TOSLINK Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
