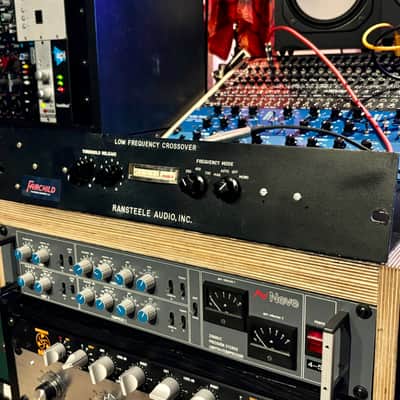

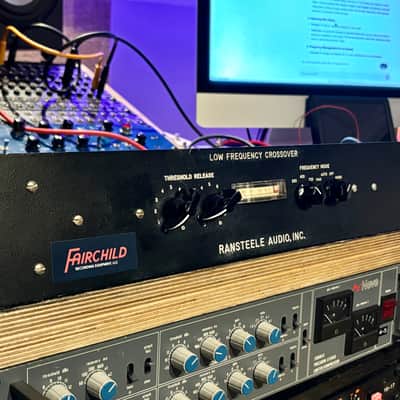

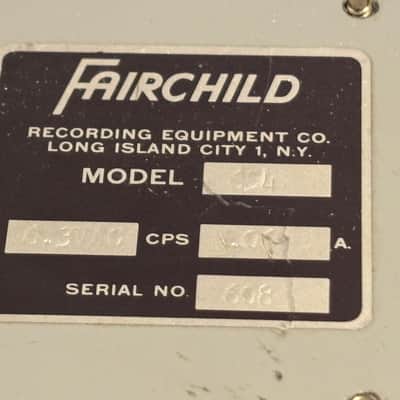

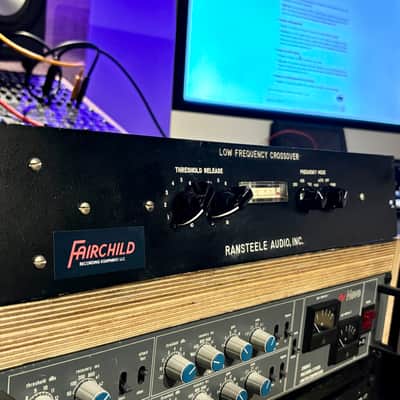

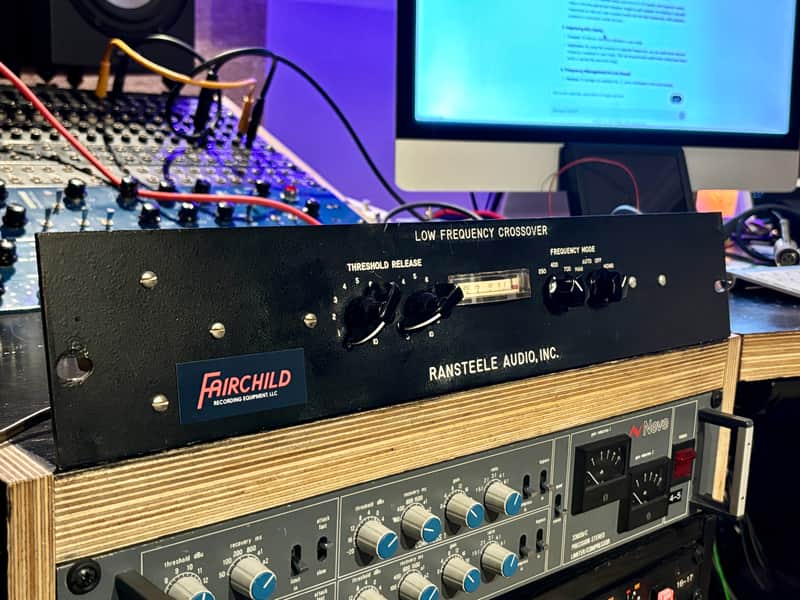

Modified Fairchild 654 low end crossover module for cleaning up your mix! Secret weapon tool, extremely rare and unique module.

A super unique modded hotrod from Ranstelle Audio Inc., now available for purchase from Lutz Multimedia LLC!

Ransteele Audio sold this electronics kit made from super high end reconditioned recording lathes for mastering studios in the mid 1970's and specialized in vinyl lathe cutting equipment that improved signal to increase dynamic headroom. This is one such device.

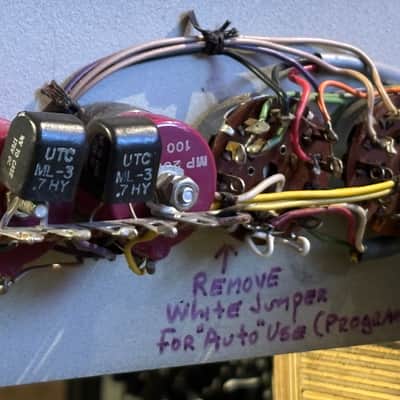

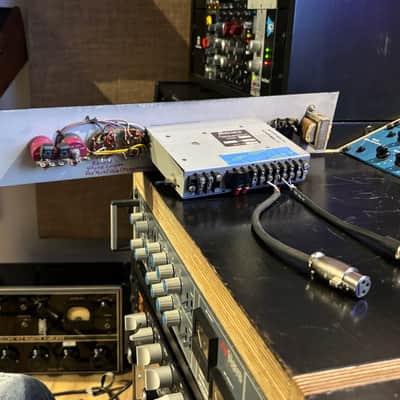

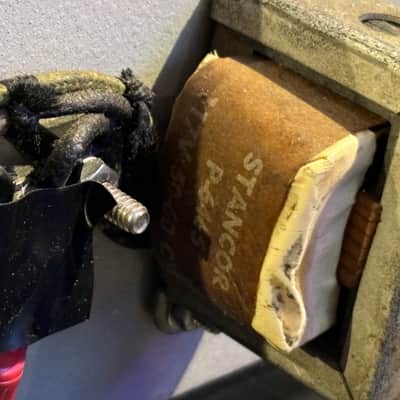

It is heavily modified by them to add threshold and release parameters as well as an added Stancore transformer, all in perfect working order.

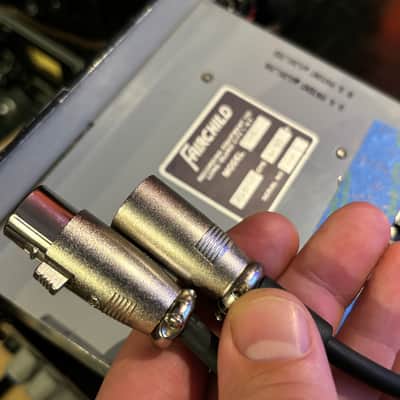

What can you do with it? Dramatically shape, sculpt and clean up your mods and lows such as kick drum and bass with this unique tool. It has also been made to be uniquely active (while all others were passive), thanks to the Ransteele modifications, which now require the unit to be plugged in! Most of that same old series is also electro-optical, which is a photocell controlled by a light bulb so you can expect it to behave accordingly. However, we believe this module is essentially a passive LF filter with a photocell resistive dump across the output that ends up at a killer vintage Standcor transformer on the XLR-M pigtail, making this super powerful in the studio. The mods are what makes it special however:

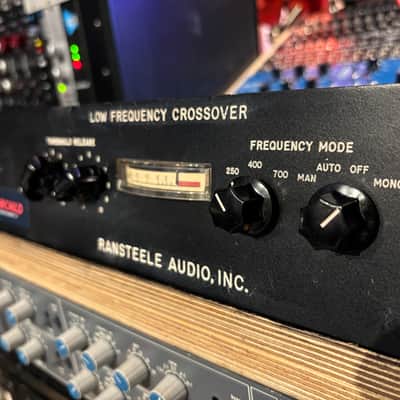

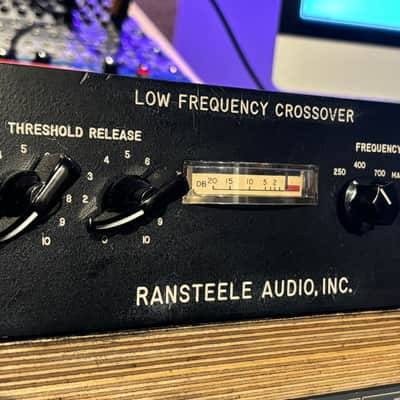

What’s fascinating here is that Ransteele would take these Fairchild modules and adapt them to yield far more advanced control over your signal processing, incorporating elements typically associated with dynamic processing such as release and threshold (to adjust where the unit starts working). For this Fairchild 654, this threshold knob function means that you can set a specific level at which the crossover’s signal processing starts to engage more heavily, altering the frequency distribution based on signal intensity. The modified release knob function controls how gradually or abruptly the crossover effect changes as the signal varies. The VU meter still works too, and gives perfect visual data on how the unit is working.

MODERN STUDIO USE:
So how might you practically use this in a modern recording studio? Well I’m glad you asked! This mono unit can do one very special thing: improve mix clarity and definition in your music, just as it was intended to do 50+ years ago. By using the crossover to separate frequencies, you can avoid issues like low-frequency muddiness in your mixes, while allowing highs to pass freely & untouched. The unit provides a very clean output and an iconic design topology by a genuine Fairchild module. This unit can be particularly useful when mixing bass-heavy tracks, kick drum or genres from rock to EDM. The Standcore transformer Ransteele added will add to the color and overall vibe of the unit too.

In essence, the modifications Ransteele did to this module add a layer of dynamic control, enabling more sophisticated management of low-frequency signals in an often subtle and gentle way. For the studio that has everything, this is quite the unique mono bird for sure.

Other applications of less interest (to me) include subwoofer integration to ensure your sub only handles low frequencies, speaker management to manage and distribute frequencies between speakers, frequency management in live sound, and testing and tuning your studio setup for optimal performance.

Keep in mind it is unbalanced so you will need to run the output into a preamp, a line level booster, or a Direct box. It wants to see line level on the input. Note that the deeper the low end the harder and QUICKER it engages so if it’s a straight up 808 kick, just a haaaaaair of release and leave threshold off to shape the sound in a way you’ve never heard before. Also, trust me on this: to really get the most out of this, play with the output level of the preamp you send this to, making it really hot on the output to get unique filtering. The more you leave the lows and get into mid frequencies, the less it works and you can experiment more with parameters. Once you’re in the higher end it will stop doing anything and sound totally transparent. So cool.

To fully grasp the impact of the threshold and release knobs and how you can clean up your signal, experiment with different settings while listening to various audio material. Start with kick drum as it does not affect higher frequencies like bright guitars or vocals too much (It can be totally transparent on mics and highs while quite dramatic on lower frequencies like kick and bass!). This will help you understand how these controls influence the crossover’s performance and how they can be used effectively in your audio setup. Still reading this?? Wow. You’re a true audio nerd… like us! ❤️✌️

Fully serviced and new pigtails added Aug 2024.

Thanks for looking. Any questions please ask. Open to trades of any kind. All the best - JML
