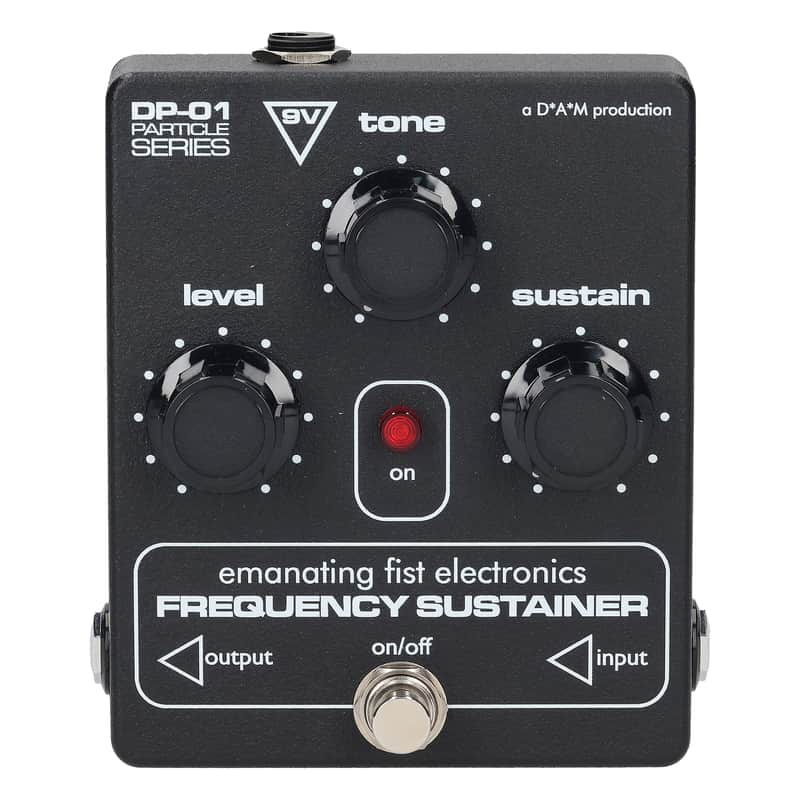

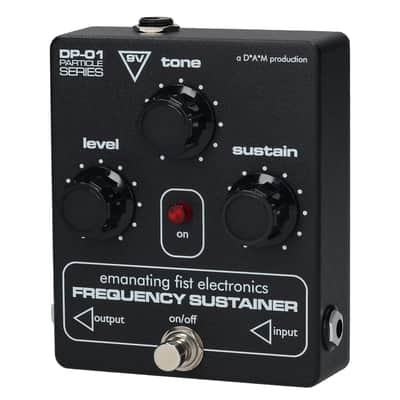

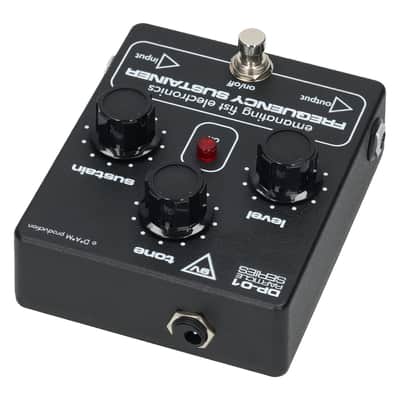

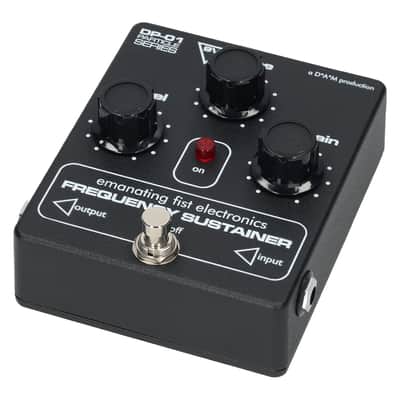

Introducing the Emanating Fist Electronics ~ DP-01. High quality fuzz tones presented in a compact and contemporary format. Constructed in a rugged 120mm x 100mm x 30mm die-cast aluminium enclosure, the DP-01 is a miniaturized offering of our four stage high gain silicon fuzz, the Dope Priest. The DP-01 features quality hardware and components through-out, offering solid performance in both sonic delivery and road worthiness.

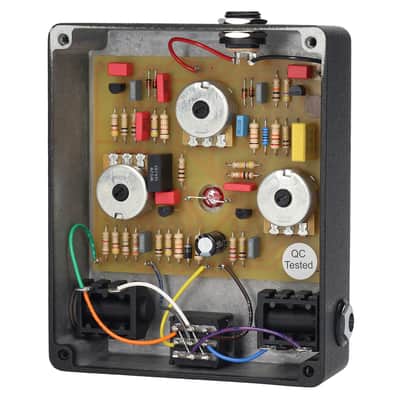

Potentiometers feature a conductive polymer track rather than the traditional carbon track for increased durability and longevity. Our foot switches are heavy duty 3PDT types with hard-wire true bypass operation. Audio jacks feature Ni-Ag alloy self-cleaning contacts for optimal performance and reliability. The LED's fitted are low drain, high brightness types with a wide and easy to see viewing angle. The control surface is functional with bold position markers and flush surface mounting control knobs. Circuit board population features capacitors with a polypropylene film construction, 1W commercial grade carbon film resistors and gain selected BC549C epitaxial planar silicon transistors. Offering vintage styled tones but with higher modern day specification, thus delivering a superb signal-to-noise ratio.

DP-93 - Particularity tailored upon several choice Black Russian 7D Big Muff's but generally speaking the DP-93 is a broad snapshot of certain choice features from the Sovtek era Big Muffs. The DP-93 is the most ample of the DP-01 types in low frequency response and the most refined in gain structure. The lows are dark and stout, with a very apparent midrange scoop. The high-end is healthy but not brittle or weak that still preserves an adequate backbone and musical artefacts at higher treble settings. The DP-93 is an ideal fuzz tone for bass instruments and players requiring extended response in the lower registers.

The EFE Particle Series pedals are primarily designed for use on a pedal board, so power is supplied via an external 9 volt DC supply only (not included) There is no facility for a battery inside the DP-01 or any of the Particle Series EFE pedals.
