HOME BAKE INSTRUMENTS

REVERBS

Tabletop Effector

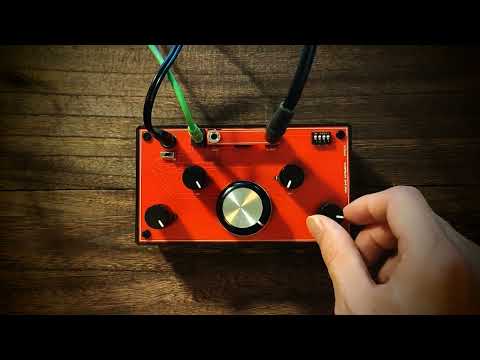

REVERBS is a tabletop effector using the FV-1 reverb system.

In addition to the FV-1's built-in reverb, chorus, flanger, and pitch shifter, it is equipped with 8 unique reverbs.

It is also possible to customize user effects for the FV-1.

*EEPROM and a programming device and a Windows PC is required to customize user effects.

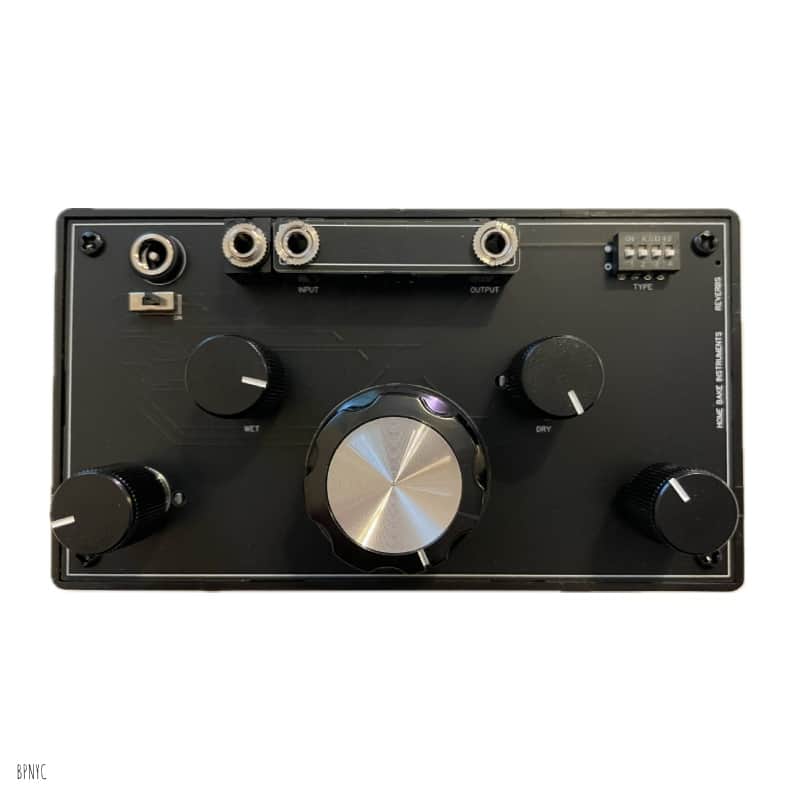

Controls and Interfaces

INPUT x 2 Enter the signal. It is a mono input.

OUTPUT Outputs a signal with an effect. Stereo output.

WET Sets the volume at which the effect is applied.

DRY Sets the volume without effects.

* Set it to 0 in the program where the dry sound is output. POT1 ~ 3 Sets the tone of the effect

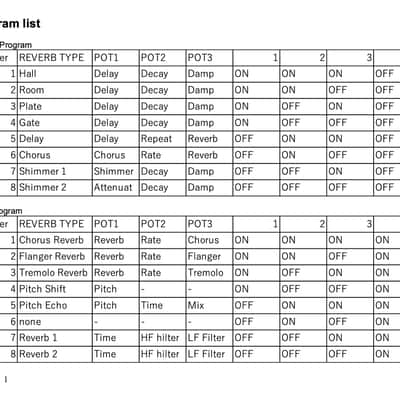

Effect Selector & DIP Switches Use the combination of 1~4 switches ON (upper side) and OFF (lower side) to set the effect to be used.

User Programs

EFFECTS allows you to add publicly available FV-1 effects and DIY effects.

Install the EEPROM (24FC32/24FC64, etc.) in which the program is written into the EEPROM socket. * Pay attention to the insertion direction. Install it so that the recess is on the left side.

*EEPROM writer required *Requires a Windows PC *For more information on the FV-1, please visit the Spin Semiconductor website. *More information can be found in the WEB Instruction Manual.

specification

Power supply: AC adapter (5V center positive) / Input: Monaural / Output: Stereo

< Caution >

● Keep out of reach of small children.

● For your safety, please unplug the USB cable or stop the power supply after use.

● Please note that we are not responsible for any direct or indirect damage caused by the customer due to the failure of this product or the use of it.

● Since we use parts that are vulnerable to static electricity, we recommend using an antistatic bag when storing.
