WesAudio Phoebe Analog Preamp with Digital Recall (500-Series)

_Phoebe NG500 Class A preamplifier with digital recall. The most notable style of Microphone preamplifiers now integrated with a digital workflow. Dual amp vintage design with most demanded modern features! We are proud to present _PHOEBE - NG500 fully analog, Class A microphone/line/instrument preamplifier with digital recall. Audio signal is processed only via analog components!

FEATURES

• 100% analog microphone/line preamp with +28dBu of headroom.
  Class A fully analog - inspired by famous British design based on dual amp topology.
• Microphone gain up to 75dB.

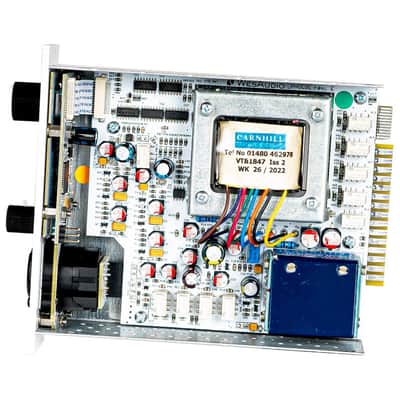

• Carnhill Transformers (input and output).
• Output signal metering on the front panel with clip detection.
• Phantom power and phase invert control.
• Switchable impedance input (1200/300Ohm).
• All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.
• 15dB OUTPUT PAD - passive output attenuation circuit with 1 dB step. (after the output transformer).
• Front panel XLR/TS socket which supports - HiZ instrument input (TS), line input (XLR), microphone input (XLR).
• Recallable signal source to be either back XLR Socket, or front panel XLR/TS socket.


SPECIFICATIONS Frequency response +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz Distortion 0.005% at 1kHz at +20dBu output Line input impedance 5.5k ohm bridging Microphone input impedance 300/1200 ohm Noise unity gain (better than -100dbU) Max gain +75dB (better than -70dbU) EIN better than -120dB Max power consumption 170mA(+16V); 100mA(-16V) Unit dimensions 38x133x145mm Box dimensions 105x162x234mm Unit weight 1 kg Box weight 1,2 kg Warranty 2 years
