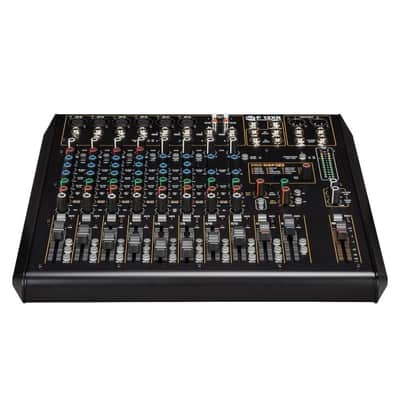

MIXING CONSOLE,  F 12XR 12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 4 single control compressors
• Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• Internal Universal Power Supply

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team.

Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

SPECIFICATIONS

• Frequency Response: 20 Hz ÷ 20 kHz
• THD+N, 20dB gain, 0dBu out: <0,02% A-Weighted
• Dynamic range: > 85dB
• Channels: 12
• Mic: 6
• Gain Range: 0 dB ÷ -50 dB
• Input Noise Level: -124 dBu A-Weighted
• Mic Inputs Impedance: 14 kohm
• Low Cut: 80 H
• Phantom Power +48V: Yes
• Mono Line: 4
• Gain Selection: 20 dB ÷ -30 dB
• Line Input Impedance: 21 kohm
• HI-Z Line Inputs: 1
• HI-Z Line Inputs Impedance (Mohm): 1 Mohm
• Stereo Line: 4
• Gain Selection: 20 dB ÷ -30 dB
• Stereo Line Input Impedance (kOhm): 15 kohm
• Input connectors: XLR, Jack, RCA
• Main MIX: 1
• Control Room: Yes
• FX Send: 1
• AUX Send: 1
• AUX Output: 2
• Group Out: 1
• Phones: 1
• Output connectors: XLR, Jack
• Main Out Level: 28 dBu
• Aux Out Level: 28 dBu
• Group Out Level: 28 dBu
• Phones Out impedance (ohm): 150 ohm
• RCF Compressors: n° 4 Single Control Compressors on Channels 1 to 4
• Input Channels EQ: 2 Shelving / 1 Generic
• High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell, Low: +/-15 dB @ 100 Hz Shelving
• Package Height: 140 mm / 5.51 inches
• Package Width: 400 mm / 15.75 inches
• Package Depth: 425 mm / 16.73 inches
• Package Weig: 5.5 kg / 12.13 lbs
