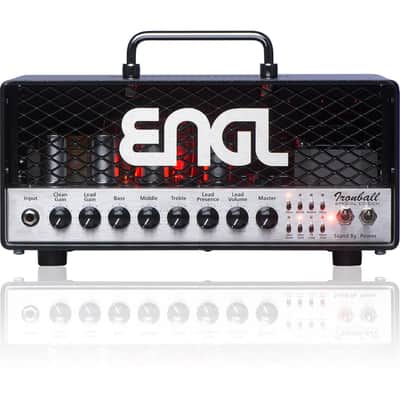

The ENGL E606SE is designed to officiate as the missing link between the analog and the digital world. Soundwise ENGL made no compromises, so there are no semiconductors in the signal path to keep the sound as pure as possible. This amp is in fact an All-Tube-Head. Basically it is a two channel amp where every channel is boostable. The Clean channel offers chime shimmering cleans and smoothly breaks up at higher settings. Thanks to the gain boost function you can boost the channel to get nice shimmering crunch sounds out of it.

The Lead channel starts where the Clean channel ends and offers a huge amount of gain and can even be boosted to make it more versatile. This channel is perfect to play any style of Rock and Metal music. ENGL used digital components for the Midi System, the Effects section and the Impulse Response Loader. The built-in Power Soak offers you the opportunity to play late at night or whenever higher volumes are unacceptable. Furthermore it gives you the opportunity to push the amplifier's power amp to breakup at low volumes.

Features:

- 2 Channels: Clean, Lead

- All Tube Head

- Power Soak (Full Power / 20 Watts, 5 Watts, 1 Watt, Speaker Off)

- Tube buffered FX Loop

- Noise Gate

- Master Volume Boost (M.V.B.)

- Reverb

- Delay

- Midi: MIDI In

- Engl MIDI Footcontroller Phantom Power Switch

- Impulse Response Loader

- USB: for IR loading

- IR Selector Switch

- Headphone Output with Level control

- IR Balanced Output

- XLR Ground Lift Switch

- Store (for MIDI programming)

- All functions accessible on the front panel plus the IR Selection, Reverb Level, Delay Level and the Noise Gate Treshold are MIDI programmable

Specs:

- Sound Options:

- Gain Boost

- Reverb

- Delay

- Controls:

- Gain (for each Channel)

- 3-Band EQ

- Presence

- Lead Volume

- Master

- Master

- Delay Level

- Noise Gate Threshold

- Headphone Output Level

- Power Range Selector

- IR Selector

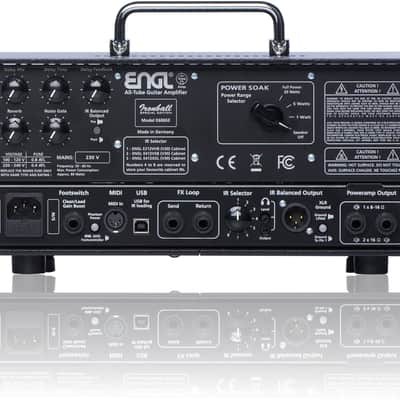

- Outputs:

- Poweramp Output (1 x 8 Ohm - 16 Ohm, 2 x 16 Ohm ||)

- Headphone Output

- IR Balanced Output

- Footswitch:

- Z4 (Channels, Gain Boost)

- MIDI (Z9, Z12, Z15)

- Power Range Selector:

- Use this switch to activate the Power Soak and select the desired power level.

- Full Power (approx. 20 Watts)

- Mid Power (approx. 5 Watts)

- Low Power (approx. 1 Watt)

- Speaker Off (zero Watts)

- When activated, the Power Soak's resistors convert some or all of the power amp's output into

- heat. So, make sure air can circulate freely around the back of the amp!

- Poweramp Output:

- One 8 - 16 Ohm cabinet connected to the left jack.

- Two 16 Ohm cabinets connected to the both output jacks

- Preamp Tubes: 4 x Engl ECC83 / 12AX7

- Output Tubes: 2 x Engl EL84

- Output Wattage: 20 W

- Input sensitivity:

- Input from -20 dB to approx. 0 dB max.

- FX Return from -20 dB to approx. 0 dB max.

- Output level:

- FX SEND from -20 dB to approx. 0 dB max.

- XLR, Headphone approx. 0 dB at nominal power output

- Power consumption approx. 80 Watts (95 VA) max.

- Fuses:

- 220 / 230 / 240 supply voltage 0,4 AT L (T: slow-blow)

- 100 / 115 / 120 supply voltage 0,8 AT L (T: slow-blow)

- Power Tube Fuses:

- 2 x 0,08 AM (M: medium-blow)

- Important: Replace these with fuses of the same type and rating only!

- Dimensions: 34 x 14 x 22 cm

- Weight: 7 kg
