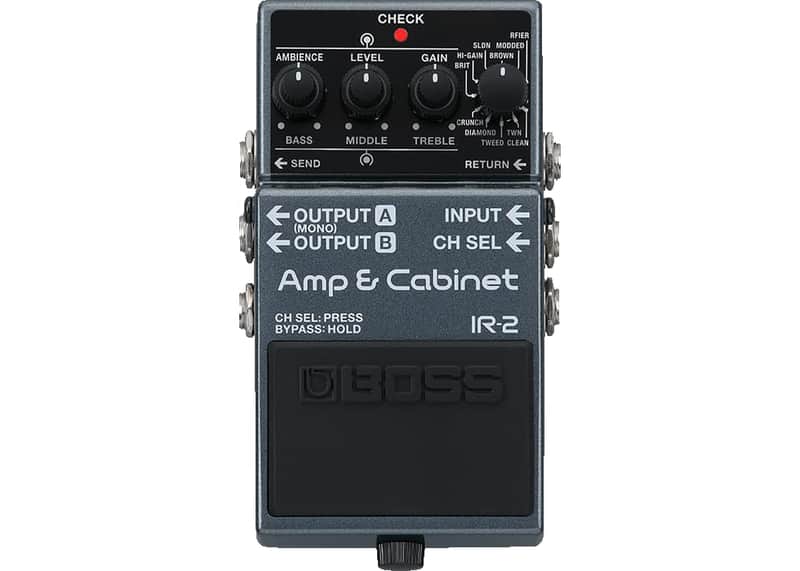

Take Your Signature Sound Everywhere

When using a regular guitar amplifier, getting consistent tones in different performance situations can sometimes be a challenge. With the compact and versatile IR-2 in your rig, you’re always ready to deliver your signature sound directly to a house PA or recording setup when needed. Choose from 11 premium amp types paired with Celestion Digital IRs and instantly tweak your sound via simple controls. Use the mono/stereo loop for post-amp effects and plug in headphones for monitoring and quiet practice. And with onboard USB-C, you can easily interface with music software and load in your favorite cab IRs.

SPECIFICATIONSSampling Frequency96 kHzAD Conversion24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion32 bitsProcessing32-bit floating pointIR cabinet data formatMono, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating pointPreset IR cabinet11User IR cabinet slot11
* These are the same slots as the preset IR cabinet.Nominal Input LevelINPUT, RETURN: -20 dBuMaximum Input LevelINPUT, RETURN: +7 dBuInput ImpedanceINPUT, RETURN: 1 MΩNominal Output LevelOUTPUT A (MONO), OUTPUT B, SEND, PHONES: -20 dBuMaximum Output LevelOUTPUT A (MONO), OUTPUT B, SEND, PHONES: +7 dBuOutput ImpedanceOUTPUT A (MONO), OUTPUT B, SEND: 1 kΩ
PHONES: 44 ΩRecommended Load ImpedanceOUTPUT A (MONO), OUTPUT B, SEND: 10 kΩ or greater
PHONES: 44 Ω or greaterBypassBuffered bypassControlsType knob
GAIN knob
TREBLE knob
LEVEL knob
MIDDLE knob
AMBIENCE knob
BASS knob
Pedal switchIndicatorCHECK indicator (Used for indication of Channel and check battery)ConnectorsINPUT jack, OUTPUT A (MONO) jack, OUTPUT B jack, SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch TRS phone type
CH SEL jack: 1/4-inch phone type
DC IN jack
PHONES jack: Stereo miniature phone type
USB port: USB Type-C(R)Power SupplyAlkaline battery (9 V, 6LR61 or 6LF22, commercially available)
AC adaptor (PSA series: sold separately)Current Draw160 mAExpected battery life under continuous useAlkaline: Approx. 3.5 hours (6LR61)
* These figures will vary depending on the actual conditions of use.AccessoriesLeaflet (“USING THE UNIT SAFELY,” ”IMPORTANT NOTES,” and ”Information”)
Dry battery (9 V, 6LR61 or 6LF22)Options (sold separately)AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7SIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)450 g
1 lb* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
