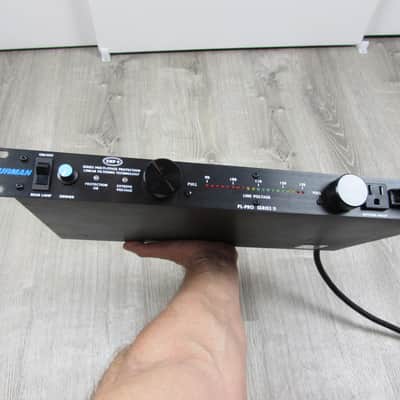

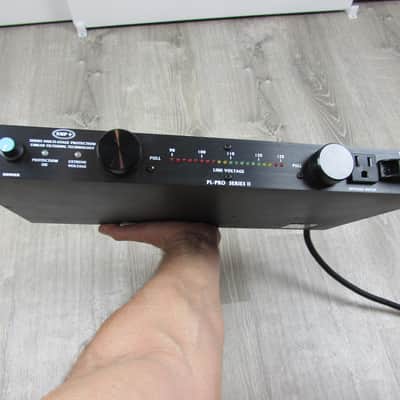

PL-Pro II Power Conditioner with LED Volt Meter Specifications:
- Current rating: 20 amps ("E" versions 16 amps)
- Operating Voltage: 90 to 140 VAC ("E" versions 180 to 280 VAC)
- Over Voltage Shutdown: 140 VAC typically ("E" versions 280 VAC typically)
- Voltmeter Accuracy: PL-PRO II only: ±2 VAC, calibrated with internal trimpot adjustments. PL-PRO D II & PM-PRO II: ±1.5 VAC
- Spike Protection Modes: Line to neutral, zero ground leakage
- Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps, 133 VAC RMS (tested to UL-1449 and USA / CIDA A-1-1, 6,000 VAC @ 3,000 Amps)
- Response time: 1 nanosecond
- Maximum surge current: 6,500 amps
- Noise attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10 MHz
- Linear attenuation curve from 0.05 - 100 Ohms line impedance
- Dimensions: 1.75" H x 19" W x 10.5" D.
- Weight: 11 lbs (5 kg). Construction: Steel chassis, .125" brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
- Power consumption:PL-PRO II, 11 watts. PL-PRO D II, 12 watts. PM-PRO II, 12 watts
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
