Envelope controlled filter is an effect type that ventures beyond the mainstream yet is equally at home in a wide range of genres and equally effective on guitar, bass, keys, horns and more. Electro-Harmonix is a pioneer in this effect category and has been making envelope controlled filter pedals since the 1970s! The Nano Q-Tron springboards off that deep heritage.

Here’s how it works: The Nano Q-Tron responds to the user’s playing style and dynamics. The volume of the input signal it receives (also called the envelope) controls the cutoff or center frequency of a swept filter. This allows the Nano Q-Tron to create tone-altering effects ranging from subtle to dynamic, auto-wah to ultra-funky. It’s all about how you play and it’s super interactive.

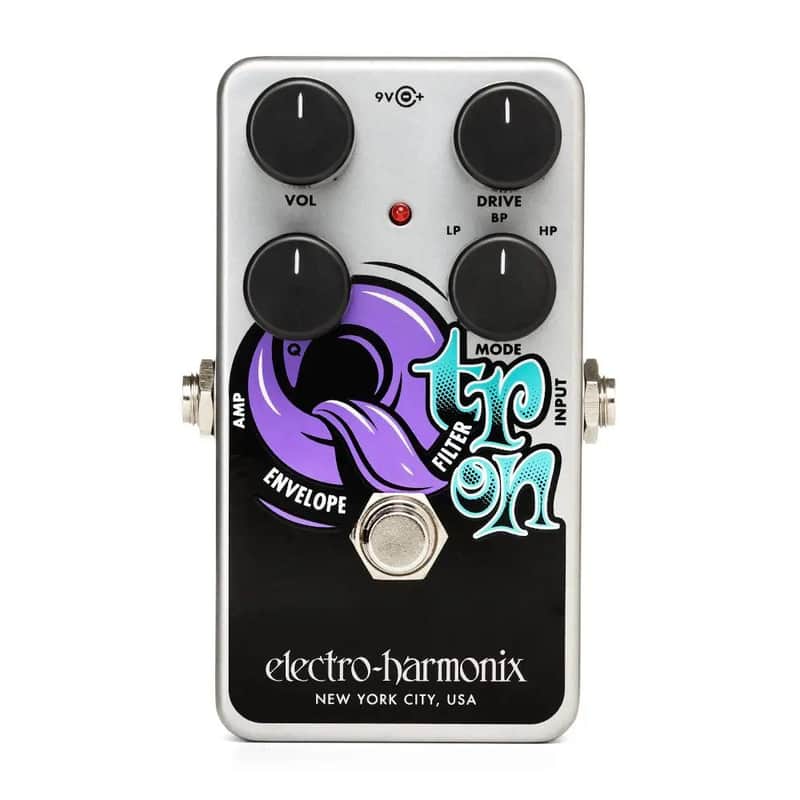

• Vol (Volume) knob which controls the pedal’s output volume
• Drive Control adjusts its filter sweep sensitivity and how the pedal responds to the user’s playing dynamics
• Q Control sets the peak bandwidth of the filter and determines how subtle or dramatic the effect will be
• LP BP HP Mode Switch controls what frequency range the filter will pass. LP (low pass) emphasizes the lows, BP (band pass) the midrange and HP (high pass) the highs
• Pedalboard friendly, compact, rugged enclosure
• True Bypass switching
• Comes equipped with a 9Volt battery and can also be powered by an optional 9Volt power supply



• Circuit: Analog
• Bypass: True Bypass
• Audio: Mono
• Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
• Dimensions (in): 4.5 x 2.75 x 2.1
• Current Draw: 10mA
