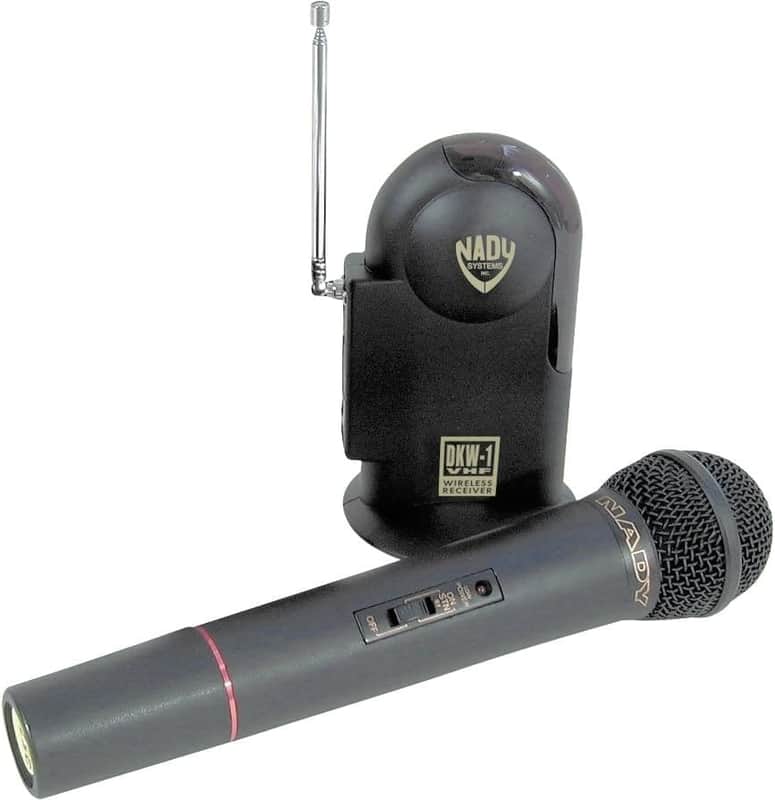

Mint Nady DKW-1 Single Channel Handheld VHF Wireless Microphone System

The Nady DKW-1 is an easy to use and cost effective VHF wireless system delivering clear, transparent audio. The DKW-1 system can be used for a broad range of singing and speaking applications, karaoke and recreational singers, DJ’s, auctioneers, teachers, aerobics instructors, houses of worship and a host of others.

Specifications General

• Frequency Response: 80Hz-14kHz (±3dB)
• Dynamic Range: 95dB
• Total Harmonic Distortion: <0.7%
• RF Carrier Frequency Range: 170-216MHz
• Frequency Stability: ±0.005%, crystal controlled
• Modulation: FM (F3E), ±15kHz max.
• Operating Range: 150 ft. typical-up to 300+ ft. line-of-sight



Transmitter:

• Audio Input: Nady DM-20D unidirectional dynamic cartridge
• Controls: OFF/ON switch
• LED Indicator Unit: “ON” (single flash), Low Battery Alert (steady)
• RF Power Out: 50mW
• Harmonic & Spurious Emissions: >-40dB
• Battery: 9V Alkaline
• Battery Life: Up to 15 hours
• Dimensions: 8.9″ x 1.4″ Dia. (22.6 x 3.5 cm)
• Weight (w/o battery): 5.4 oz. (151 g.)



Receiver:

• Controls: Power ON/OFF
• Connectors: 1/4″ unbalanced audio out jack, 2.1 mm barrel-type DC input jack
• LED Indicator: Power ON, Transmitter RF
• Power Requirements: 9V @ 120mA, nominal, AC/DC adapter supplied
• Antennas: 15″ (38 cm), collapsible
• Dimensions: 8.2″ X 5.3″ X 1.75″, (20.8 X 13.5 X 4.4 cm.)
• Weight: 16.1 oz. (451 g.)
