Serial Number: XN17254
Instrument Weight: 7.86 lbs
Neck Depth:

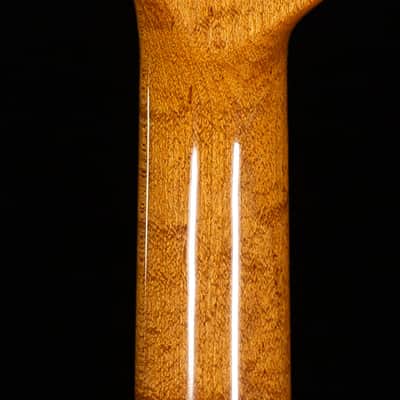

Transcending classic design elements with eye-catching appeal, the American Custom Stratocaster draws the most discerning players as the embodiment of elegance and perfectly alluring playability. An NOS lacquer finish lets the two-piece select ash body breath and resonate with each note. Its roasted 2A birdseye maple neck has a ’60-style “oval C” profile, compound-radius (9.5”-12”) round-lam rosewood fingerboard, and 22 narrow tall (6105) frets for exceptional play in all registers.

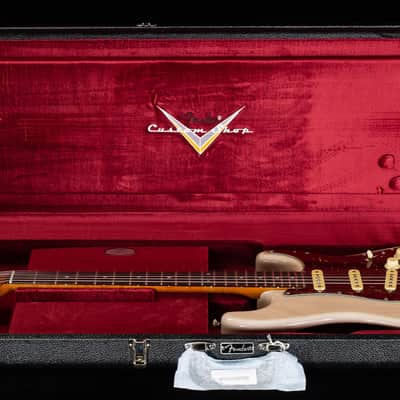

Custom Shop hand-wound ’64 pickups (with reverse-wound/reverse-polarity middle pickup) are connected to a five-way switch and vintage modified #2 wiring with tone-saver bleed, which features a master volume, tone #1 (neck and middle pickups), and tone #2 (bridge) with treble bleed (for keeping mids and rolling off highs without adding bass). Other features include a three-ply mint green pickguard, Custom Shop vintage synchronized tremolo, Sperzel® die-cast tuning machines with white pearloid buttons, bone nut and American Standard string tree. Includes deluxe hardshell case, strap, and certificate of authenticity.



Body Shape: Stratocaster® Body Material: 2-Piece Select Ash Body Finish: Lacquer Neck Material: 2A Roasted Birdseye Maple Neck Shape: 1960 Oval "C" Scale Length: 25.5" (64.77 cm) Fingerboard Radius: 9.5" to 12" Compound Radius Number of Frets: 22 Fret Size: Narrow Tall (6105) String Nut: Bone Nut Width: 1.650" (42 mm) Neck Finish: Nitrocellulose Lacquer Fingerboard: Round-Laminated Rosewood Position Inlays: Mother of Pearl Dot Bridge Pickup: Custom Shop Hand-Wound '64 Single-Coil Strat® Middle Pickup: Custom Shop Hand-Wound RWRP '64 Single-Coil Strat® Neck Pickup: Custom Shop Hand-Wound '64 Single-Coil Strat® Controls: Master Volume, Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup) Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup Pickup Configuration: SSS Bridge: Custom Shop Vintage Synchronized Tremolo Tuning Machines: Sperzel® Die-Cast with White Pearloid Buttons Orientation: Right-Hand Hardware Finish: Nickel/Chrome Pickguard: 3-Ply Mint Green Control Knobs: Aged White Switch Tips: Vintage White Strings: Nickel Plated Steel (.010-.046 Gauges) Included Accessories: Deluxe Hardshell Case, Strap and Certificate of Authenticity.
