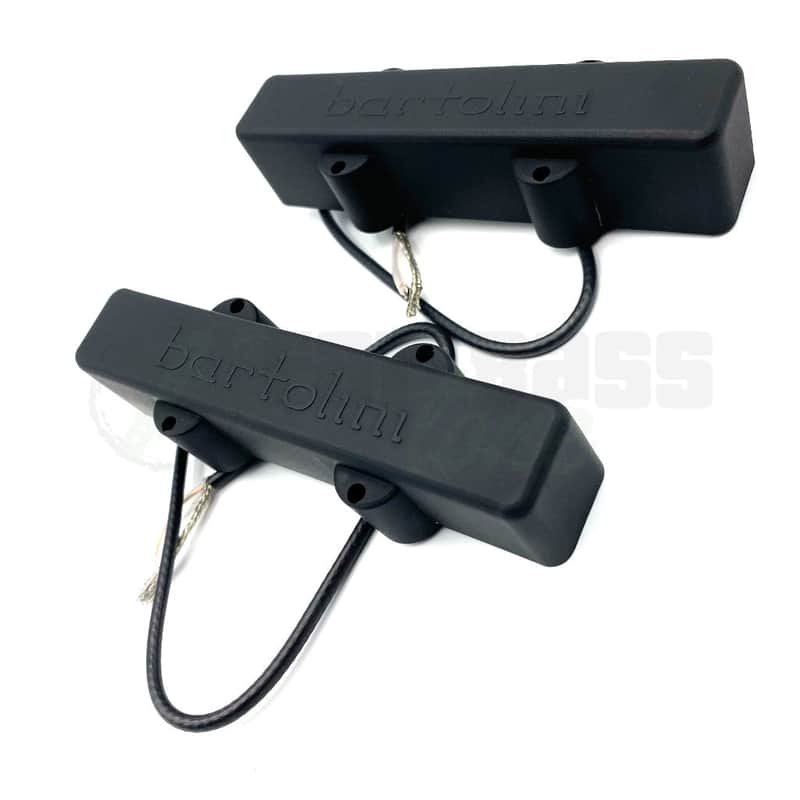

Bartolini 9J1-S/SB 4 String Hum Cancelling Original Series Jazz Bass® Pickup Set - (Bridge 3.6" & Neck 3.6")

SET CONSISTS OF SHORT BRIDGE & NECK PICKUPS (BOTH PICKUPS THE SAME SIZE)

THICK LOWS AND LOW MIDS

SPLIT COIL, HUM-CANCELLING FOR NOISE-FREE PERFORMANCE

MADE IN BART'S CALIFORNIA FACTORY

DESCRIPTION

The original Bartolini design gives you the timeless tone that started it all – full and warm for that vintage voice you've been craving, enhancing the natural voice of your bass. These dual coil inline pickups are hum-cancelling even when only playing the neck or bridge pickup, so they are well suited for studio or stage. They have a blade core design, so you don’t have to worry about string alignment. Original Barts bring out your voice, low and clear.

In the early ‘70s, Bill Bartolini leveraged his deep knowledge of acoustics to create pickups that produce the most natural, musical voice from the instrument. He added shielding to block radio signals and noise. He developed a method of sealing, isolating, and stabilizing the coils so they could be encapsulated in epoxy to eliminate “microphonics” – the nasty noise you get when you touch typical pickups.

Available in balanced specific bridge and neck versions.

The 9J1 S/SB set (both bridge and neck are short pickups) fits some older MIM Fender® Jazz Basses® as well as a few other 4 string J basses.

DIMENSIONS

Size (Bridge and Neck):

3.6" [91.4mm] Long
0.73" [18.5mm] Wide

TECH & SPECS

Coil Structure:

Dual Inline Hum-killing

Cable Type:

Shielded Coaxial Hot Core

Magnetic Circuit:

2 types of carbon steel powered by ceramic (ferrite) magnets
Opposite polarity for bass and treble coils for neck and bridge pickups

9J-S1 - Neck

• DC Resistance: ~6.1KΩ
• Resonant Frequency: ~5.7KHz
• Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

9J-SB1 - Short Bridge

• DC Resistance: ~6.7KΩ
• Resonant Frequency: ~4.9KHz
• Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min
