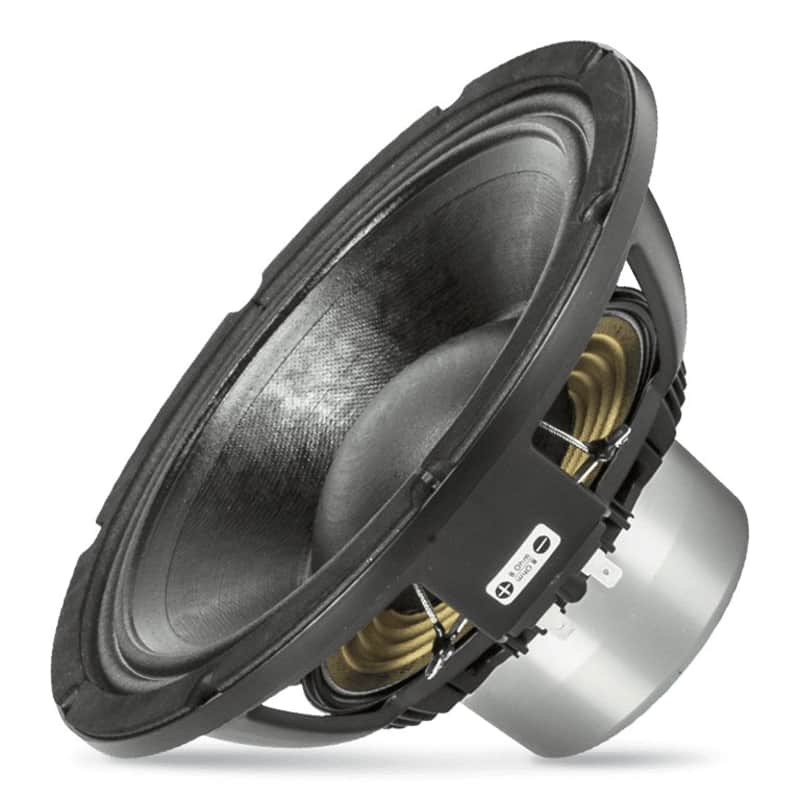

RCF MB10N305 10" 1000 Watt Mid-Bass Woofer Speaker

Overview

The RCF MB10N305 is a high-performance 10-inch mid-bass woofer designed for professional audio applications. It features a robust neodymium magnet and a 3-inch voice coil for excellent sound reproduction and high power handling. This woofer is ideal for use in high-quality PA systems, providing clear and powerful bass performance.

Features

• Voice Coil: 3-inch fiberglass inside/outside aluminum voice coil for high efficiency and durability.
• Power Handling: 1000W continuous program power and 500W AES power handling capacity.
• Sensitivity: 97.5 dB, ensuring clear and loud sound output.
• Frequency Range: Operates effectively between 55 Hz and 3.5 kHz.
• Ventilation: Dual-forced air ventilation minimizes power compression and enhances cooling.
• Design: Hyper-vented aluminum basket and magnetic assembly for superior heat dissipation.

Specifications

• Nominal Diameter: 10 inches (254 mm)
• Impedance: 8 ohms
• Power Handling: 500W AES, 1000W program power
• Sensitivity: 97.5 dB
• Frequency Range: 55 Hz – 3.5 kHz
• Voice Coil Diameter: 3 inches (76 mm)
• Maximum Excursion Before Damage: 34 mm (1.34 inches)
• Resonance Frequency (Fs): 60 Hz
• Mechanical Q Factor (Qms): 4.00
• Electrical Q Factor (Qes): 0.24
• Total Q Factor (Qts): 0.23
• Equivalent Volume (Vas): 31.0 liters
• Effective Piston Diameter: 210 mm (8.27 inches)
• Weight: 3.2 kg (7.05 lbs)
